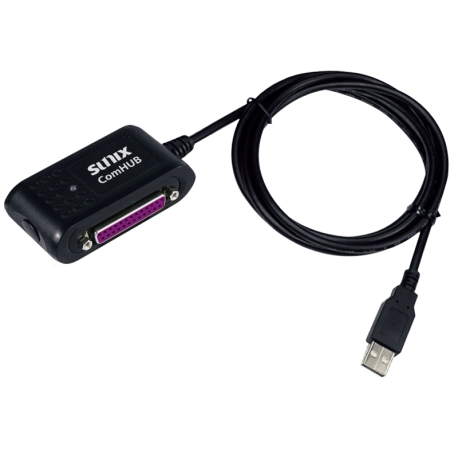

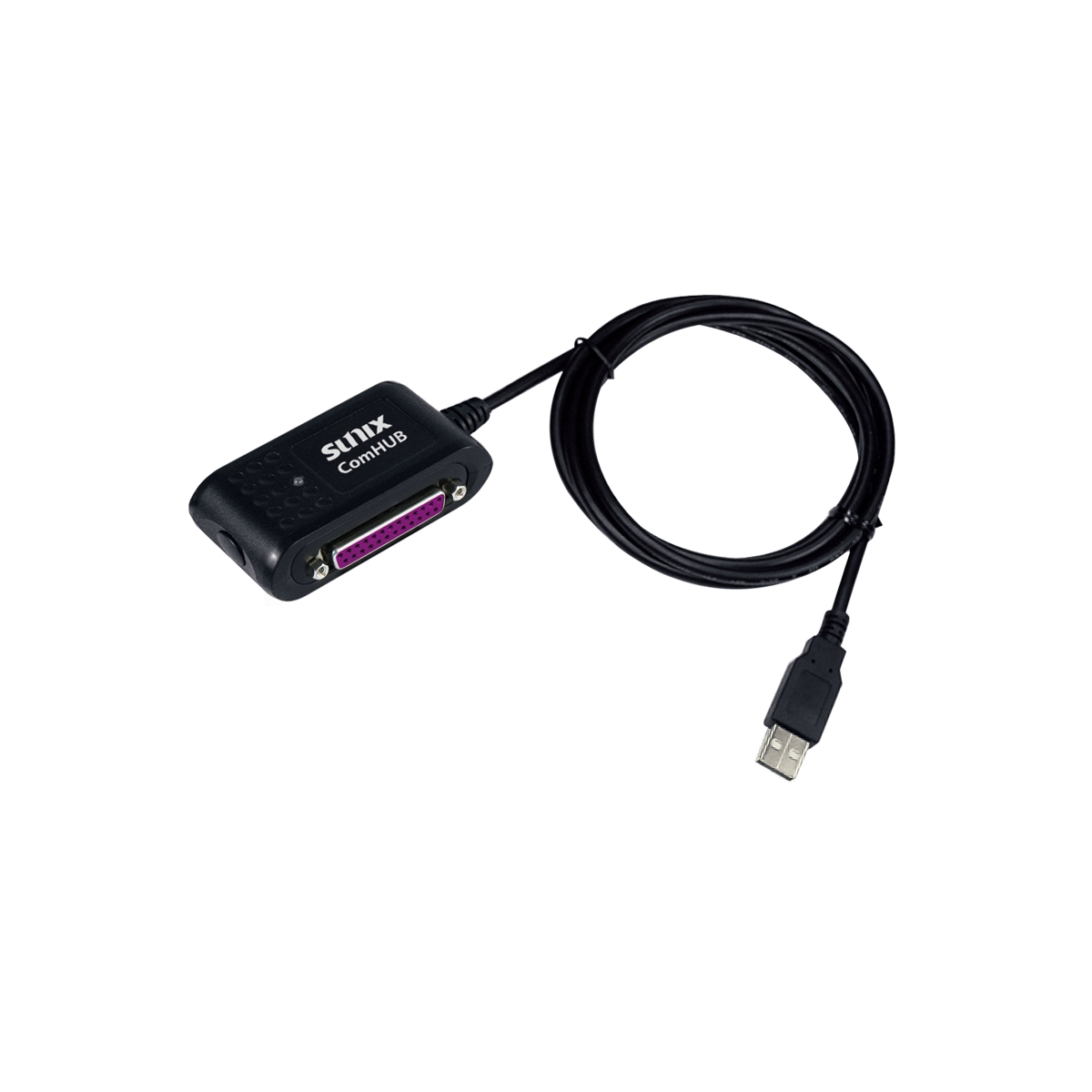

USB to 1 port Printer Port Adapter (DB25F)

USB to 1 port Printer Port Adapter (DB25F)

รุ่น UTP1025B

UTP1025B USB to Printer adapter

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม

ส่งให้เพื่อน

ส่งให้เพื่อน

USB to 1 port Printer Port Adapter (DB25F)

UTP1025B USB to Printer adapter

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Spec sheet

Manual

Sunix's UTP1025 or UTP1025B is an USB to Printer adapter which offers user single parallel port connection. The port has a data transfer rate up to 2.7 MB/sec. Users are able to connect a printer through the USB port on their system. The adapter supports wake on line and power management function.

FEATURES

Expands1-port Parallel LPT on system via USB connection.
Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
No IRQ, DMA, I/O address resource required.
Supports USB 1.1 full speed 12Mbps, and it is USB 2.0 compatible.
IEEE1284 Parallel(LPT) port supports SPP mode with transfer speed up to 2.7MB/sec.
Compact size and low power consumption.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Driver free under Microsoft Window 2000 / XP / 2003 / 2008 / Vista / 7 / 10

Hardware

Type	USB to Parallel cable
Chipset	Prolific PL2305
Interface	Universal Serial Bus (USB)
Mode	SPP / BPP
Controller	IEEE1284C standard compatible
Port	Parallel 1 Port
Connector	DB25F
FIFO	32 byte hardware FIFO
BAUD Rate	2.7 MB/s
OS Support	Windows 98SE/ ME/ 2000/ XP/ 2003/Vista/7/8 (Driver Free)

Specifications

USB Communication

Bus Interface	Universal Serial Bus	Connector	USB Type A
Standard	Compliant with USB 1.1 and 2.0	Speed	Full Speed 12MBps

Parallel Communication

Interface	IEEE1284 SPP Mode	IRQ & IO	Assigned by System
Controller	Prolific PL2305	Speed	Maximum 2.7MBps
No. of Port	1-port	Port Type	DB25 Female

Power

Power Input	USB Bus-power
Power Consumption	<1W = 5V x 200mA

Driver Support

Windows Client

98/ME/2000/2003/2008/XP/Vista/7/8/10 (X86/X64)

Regulatory Approvals

Hardware	CE, FCC, VCCI, BSMI
Software	Microsoft WHQL Windows XP

Environment

Operation Temperature	0 °C to 60 °C ( 32 °F to 140 °F )
Operation Humidity	5% to 95% RH
Storage Temperature	-20 °C to 85 °C ( -4°F to 185 °F )

Mechanical

Dimension	75 (W) x 40 (D) x 22 (H) mm
Case	ABS
Weight	95 ± 5 g
Cable Length	1500 mm (5ft)

Download Driver

Driver	UTP1025 Windows Inbox Driver
OS	Windows 10 32/64 bit Windows 8.1 32/64 bit Windows 8.0 32/64 bit Windows 7 SP1 32/64 bit Windows XP SP3 32/64 bit Windows Vista SP2 32/64 bit Windows Server 2016 64bit Windows Server 2012 R2 64-bit Windows Server 2012 64bit Windows Server 2008 R2 SP1 64bit Windows Server 2008 32/64 bit
