4-port RS-232 High Speed PCI Express Board with Power Output

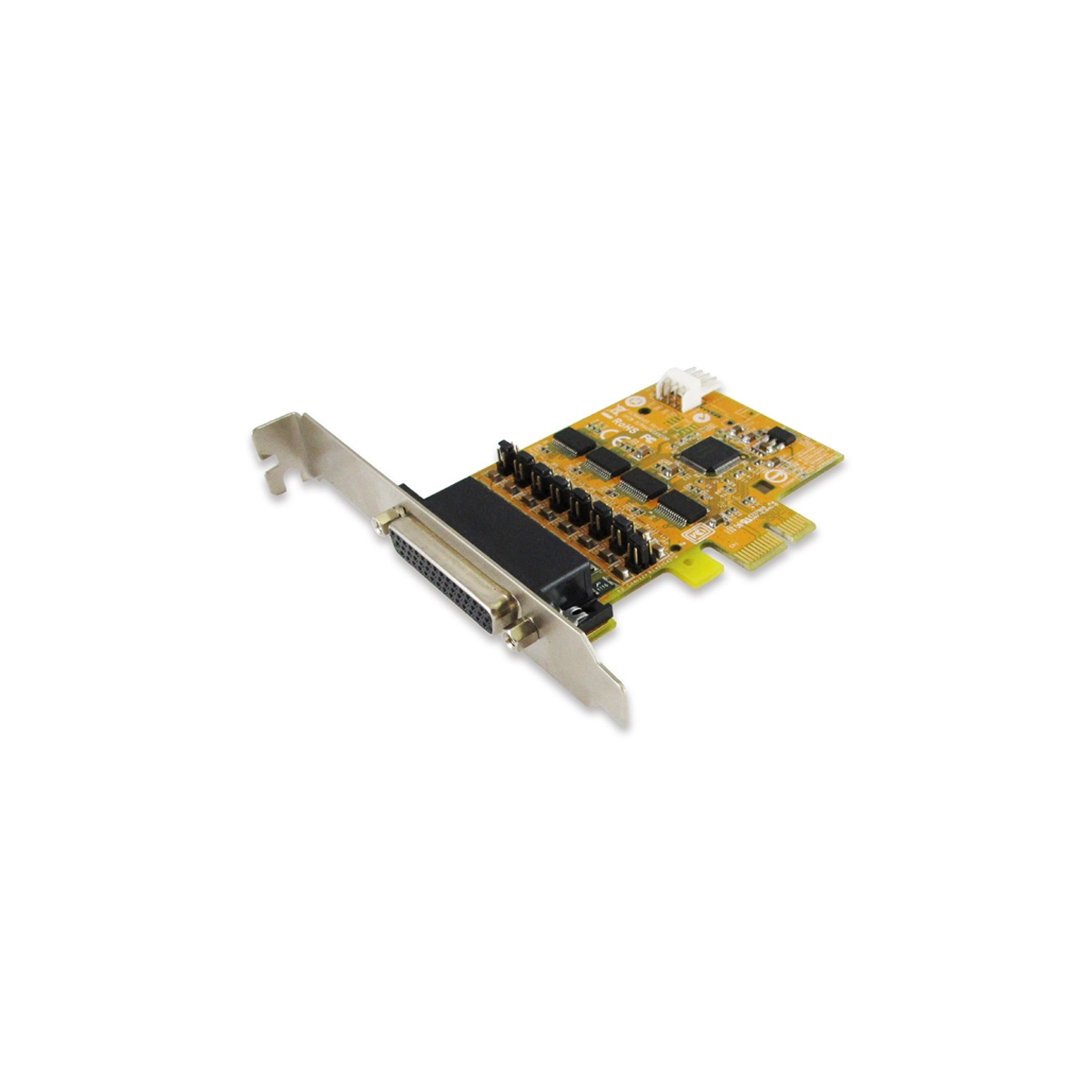

SUNIX SER6456PH, PCI Express serial communication board, supports +5 or +12VDC power via serial COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Spec sheet

Manual

Introduction

SUNIX SER6456PH, PCI Express serial communication board, supports +5 or +12VDC power via serial COM 1st and 9th pin output. It's convenient for users connecting serial devices without addition external power supply.

SUNIX SER6456PH meets the PCI Express Base Specification Revision 2.0, allows users to add or expand four RS-232 COM ports on PC-based system to use serial devices further. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any PC-based system. The majorities of today’s motherboards does not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add one serial port to their system, allowing them to use serial devices further. SUNIX SER6456PH card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2410 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

Expands four independent RS-232 serial ports with communication speeds up to 921.6Kbps.
With high reliable SUNIX SUN2410 native PCI Express 16C950 UART controller.
Designed to meet PCI Express Base Specification Revision 2.0.
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.

Specifications

General
Interface	RS-232
Controller	SUNIX SUN2410 (16C950 UART Compatible)
BUS	PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO	Assigned by System
Serial Communication
Interface	RS-232
No. of Port	4-port
FIFO	128byte Hardware
Signal	DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5VDC
Baud rate	50bps ~ 921.6Kbps
Stop bit	1, 1.5, 2
Parity	even, odd, none, mark, space
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	±15KV ESD protection for each signal Human Body Model (HBM)
	±15KV IEC1000-4-2 Air Gap Discharge
	±8KV IEC1000-4-2 Contact Discharge
PCB Connector	DB44 Female
Driver Support
Windows Client	XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server	2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded	Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux	Linux 2.x / 3.x / 4.x
DOS	DOS
FreeBSD	FreeBSD 5.3~5.5 / 6.0~6.4
QNX	QNX 6.3.2/6.4.0
Regulatory Approvals
Hardware	CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
Hardware	FCC Part 15 Class B, BSMI: CNS13438, RoHS
Software	Microsoft WHQL Windows
	• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
	• Windows Server: 2003 / 2008 / 2012 / 2016 (X64)
Environment
Operation Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85°C (-4 to 185°F)
Dimension
PCB Dimension	90 x 69 mm
Bracket	Standard 121 mm
Bracket Space	1

Accessories

Including Accessories

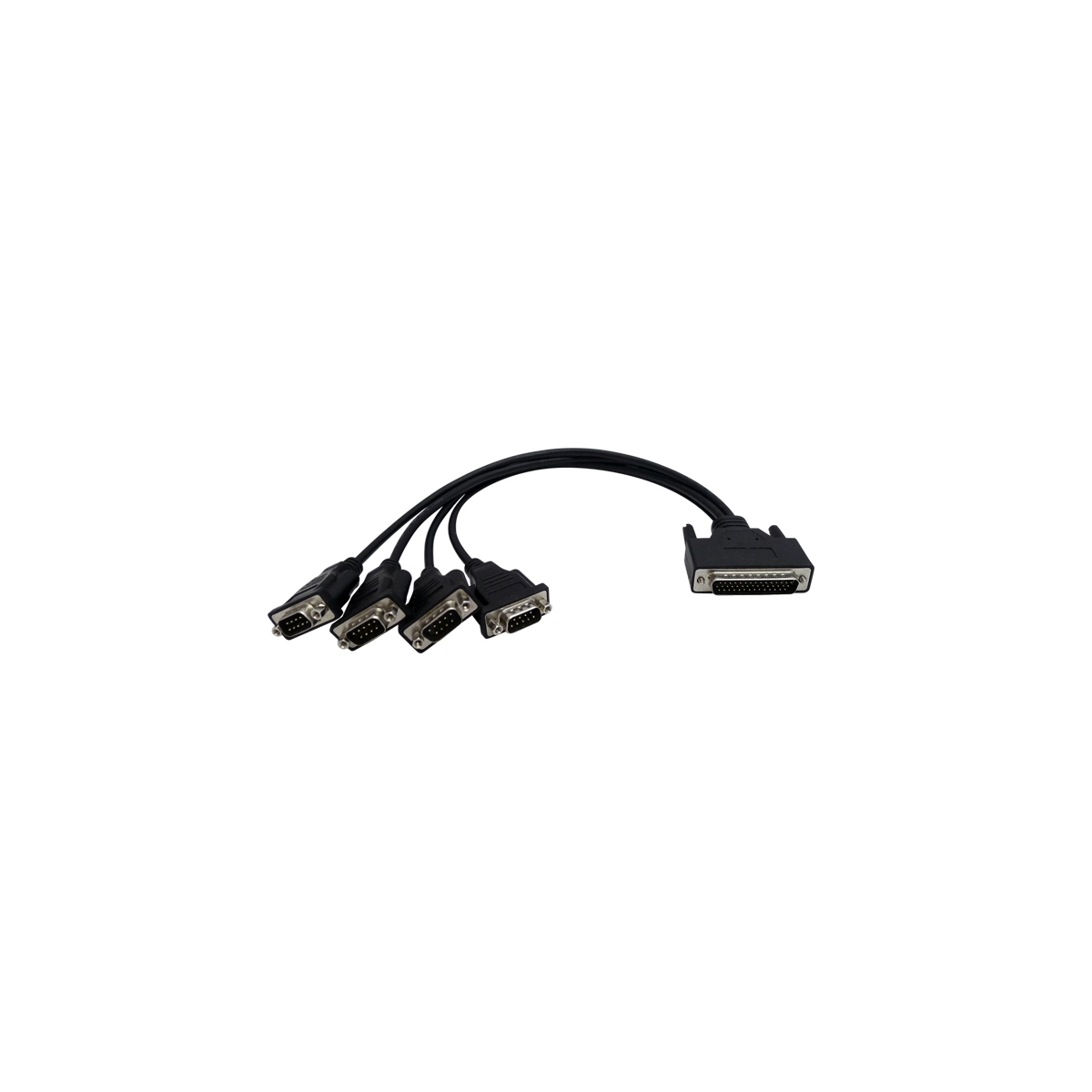

DB44 to 4-port DB9 Male Connection Cable

40 cm
Part No.: 1WDB-44M04009D4001
1 pcs.

Download Driver

Driver	SUN1999Driver V9.2.2.0(WHQL)
Version	V9.2.2.0
Update	2021-01-05 09:27:46
Size	9.4MB
OS	Windows 10 20H2 (20H2) 32/64 bit Windows 10 20H1 (2004) 32/64 bit Windows 10 19H2 (1909) 32/64 bit Windows 10 19H1 (1903) 32/64 bit Windows 10 RS5 (1809) 32/64 bit Windows 10 RS4 (1803) 32/64 bit Windows 10 RS3 (1709) 32/64 bit Windows 10 RS2 (1703) 32/64 bit Windows 10 RS1 (1607) 32/64 bit Windows Server 2019 64bit Windows Server 2016 64bit Windows 10 Enterprise 2019 LTSC 32/64 bit Windows 10 Enterprise 2016 LTSB 32/64 bit Windows 10 S 32/64 bit
