4-port RS-232/422/485 Industrial Serial Device Server

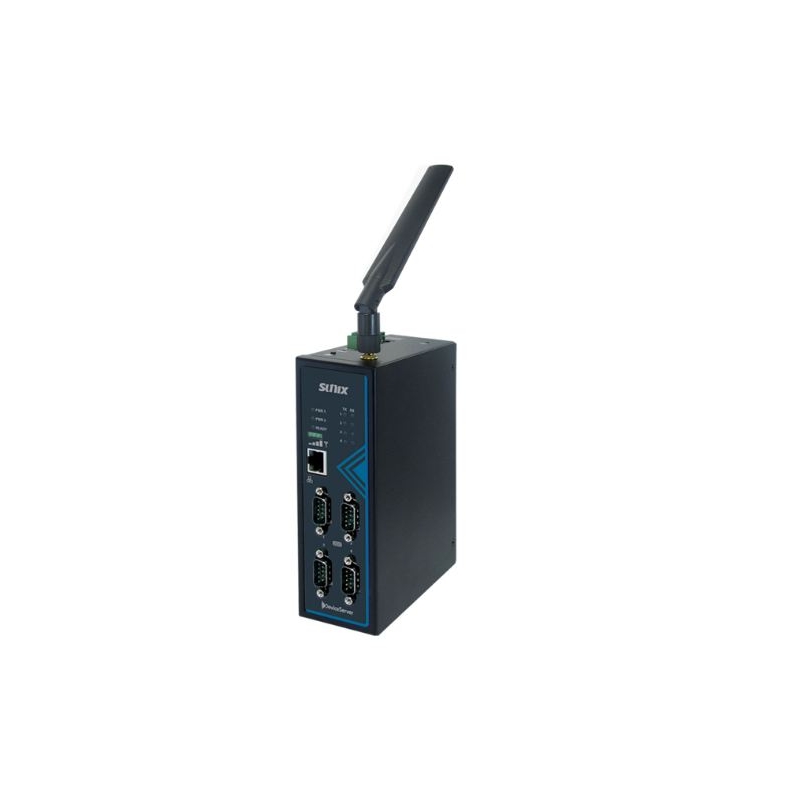

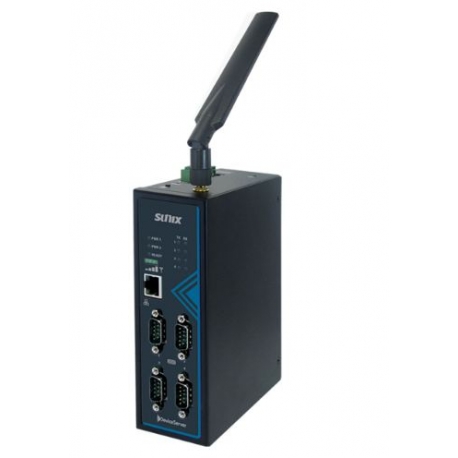

IDS304DW0 allows users to expand 4 RS-232/422/485 ports over Ethernet connection, With SUNIX DPL2000Q High-Performance Ethernet-UART controller, allowing you to network your existing serial devices with only basic configuration.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Spec sheet

Manual

IDS304DW0 allows users to expand 4 RS-232/422/485 ports over Ethernet connection, With SUNIX DPL2000Q High-Performance Ethernet-UART controller, allowing you to network your existing serial devices with only basic configuration. SUNIX Device Server improves solution deployment efficiency to achieve greater reliability in industrial automation applications.

SUNIX Device Server series in order to keep system stable, it supports 2 ways 12~48VDC redundant power input. In addition, software enabled terminators, RS-232 interface selection are the best user experience, and as well built with many of SUNIX advanced features and technologies, making it the best solution for industrial and harsh automation applications.

Features

Multi-serial ports supporting RS-232/422/485.
Optional 10/100M Ethernet and 802.11 b/g/n WiFi.
Support Real COM, TCP, and UDP socket mode.
Configure via Telnet/Web/Windows utility.
15KV ESD protection for all serial signal lines meeting IEC-61000-4-2 standard.
Support two ways 12~48VDC redundant power input.
Support Wall Mounting & DIN-rail Mounting Installation.
Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.

Diagram

Specification

Serial Communication
Interface	RS-232/422/485	Baud rate	50bps ~921.6Kbps
Controller	SUNIX DPL2000Q	Stop bit	1, 1.5, 2
BUS	Ethernet	Parity	even, odd, none, mark, space
No. of Port	4-port	Flow Control	Xon/Xoff (software)
FIFO	1Kbyte Hardware / per port	Connector	DB9 Male
Signal	RS-232: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
	RS-422: TxD+, TxD-, RxD+, RxD-, GND
	RS-485: Data+, Data-, GND
Protection	±15KV ESD IEC-61000-4-2 Air Discharge
	±8KV ESD IEC61000-4-2 Contact Discharge
	±4KV ESD IEC61000-4-2 Level2 Line-to-Line
Software
Network Protocols	ICMP, IPv4, TCP, UDP, Telnet, ARP/RARP, HTTP, DHCP
Configuration Options	Web Console、Windows Utility、Telnet Console
Windows COM Drivers	Microsoft Client: Windows Vista / 7 / 8.1 / 10 (x86/x64)
	Microsoft Server: Windows Server 2008 / 2012R2 (X64)
Ethernet Communication
Number of Ports	1-port, Ethernet Switch Port
Speed	10/100 Mbps, auto MDI/MDIX
Connector	RJ45
Magnetic Isolation Protection	1.0K Built-in
Wireless Communication
Standard Compliance	802.11 b/g/n
ISM Band	2.4GHz
Network Modes	Infrastructure, Ad-Hoc
Transmit Power	802.11n: 13.5dBm ± 1.5dBm
Receive Sensitivity	150M：-68dBm@10% PER; 130M：-68dBm@10% PER
	108M：-68dBm@10% PER; 54M：-72dBm@10% PER
	11M：-85dBm@10% PER; 6M：-88dBm@10% PER
Wireless Security	• OpenWEP、SharedWEP
	• WEPAuto、WPA、 WPA2、 WPA2-PSK
	• WPAPSKWPA2PSK
	• WPA1WPA2 ( WPA and WPA2 hybrid mode )
	• 802.1x
Antenna Connector	RP SMA Jack
Antenna	Frequency：2.4G ~ 2.5GMHz
	Peak gain： 4 dBi
	Impedance：50 Ω
	Connector ：RP SMA PLUG
	Length ：163 (mm)
Power Requirements
Input Voltage	12V ~ 48VDC
Power Consumption	12W @ 12VDC
Connector	T3-pin Terminal Block
	ψ2.0mm DC-Jack
Regulatory Approvals
Hardware EMC	• EUR: CE EN55022 Class B, EN55024
	• US: FCC Part 15 Class B
	• TAIWAN: BSMI: CNS13438
	• JAPAN: VCCI
Software Driver	Microsoft WHQL Windows
	• Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64)
	• Microsoft Server: 2003/2008/2012R2 (X64)
Environment
Operation Temperature	0 to 80°C (32 to 176°F)
Operation Humidity	5 to 95% RH (non-condensing)
Storage Temperature	-10 to 85°C (-14 to 185°F)
Physical Characteristics
Housing	Metal IP30 Standard
Weight	826 g
Installation	Wall mount (Default)
	Din rail (Optional)
Dimensions	54 x168 x112(mm), 2.1 x 6.6 x 4.4 (inch)

Download Driver

Driver	DeviceServer Driver V1.0.15.0
Version	Ver 1.0.15.0
Update	2018-11-06 15:41:41
Size	4.8MB
OS	Windows 10 32/64 bit Windows 8.1 32/64 bit Windows 8.0 32/64 bit Windows 7 SP1 32/64 bit
