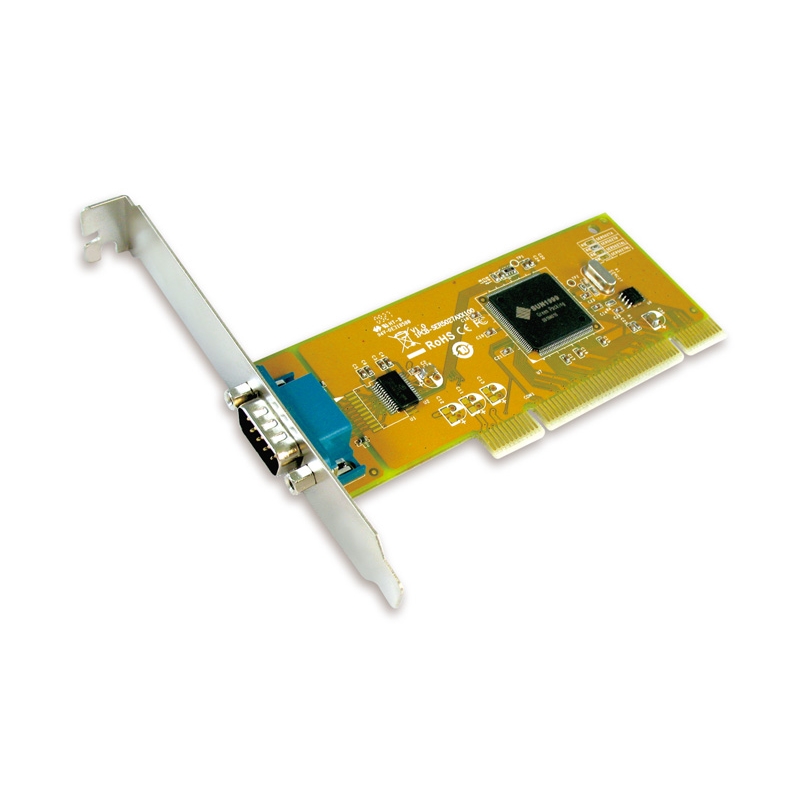

1-port RS-232 High Speed Universal PCI Serial Board
SER5027H
SUNIX SER5027H, Universal PCI serial communication board, allows users to add or expand one RS-232 port on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems.
รับประกัน 3 ปีเต็ม
Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด
Spec sheetSUNIX SER5027H, Universal PCI serial communication board, allows users to add or expand one RS-232 port on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER5027H card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features
- Expands single independent RS-232 serial port with communication speeds up to 921.6Kbps.
- High reliability SUN1989 16C950 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, and DOS.
Specifications
Description |
|
| Product Description | 1-port RS-232 High Speed Universal PCI Serial Board |
Serial Communication |
|
| Interface | RS-232 |
| Controller | SUNIX SUN1989 (16C950 UART Compatible) |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 1-port |
| IRQ & IO | Assigned by System |
| FIFO | 128 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 921.6 Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB connector | DB9 Male |
Driver Support |
|
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.3 |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals |
|
| Hardware | CE, FCC, VCCI, BSMI |
| Software | Microsoft WHQL Windows • Windows Client: Windows XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment |
|
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension |
|
| PCB Dimension | 120 x 51 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
|
