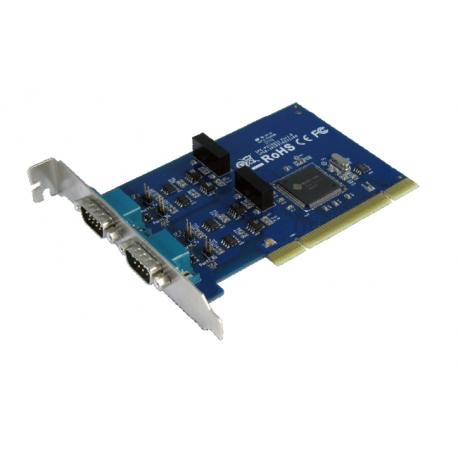

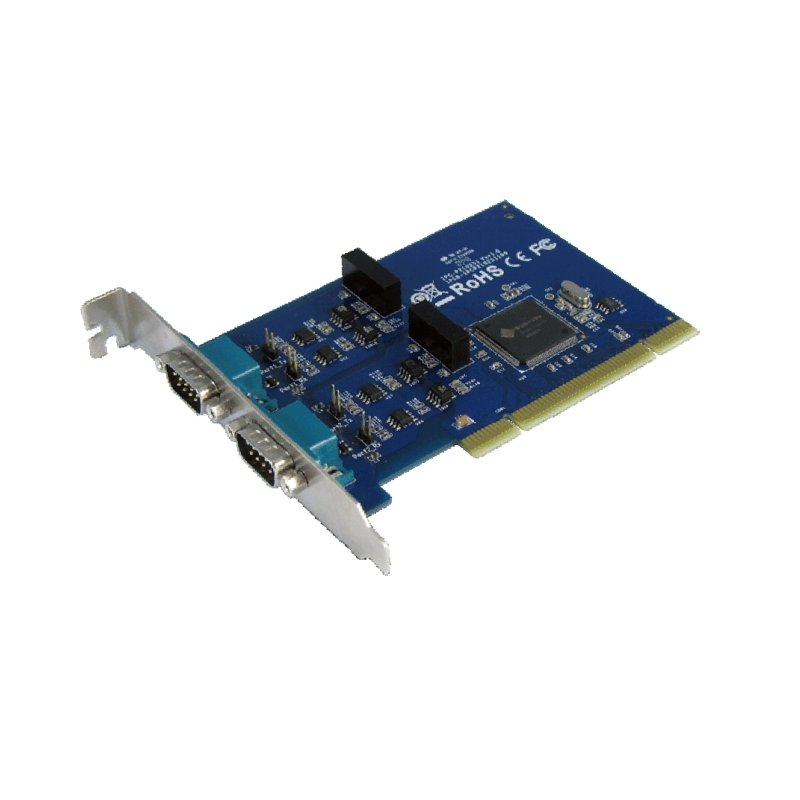

Industrial 2-port RS-422/485 Universal PCI Board with Surge & Isolation
IPC-P2102SI
SUNIX IPC-P2102SI, industrial standard universal PCI serial communication card, allows users to expand two RS-422/485 ports on PC-based system.
รับประกัน 3 ปีเต็ม
Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด
Spec sheetIntroduction
SUNIX IPC-P2102SI, industrial standard universal PCI serial communication card, allows users to expand two RS-422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDCTM technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. Under RS-485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km.
SUNIX IPC-P2102SI uses on-board 2500V optical isolators which achieve on power and serial signal lines to protect your PC and equipment against damages from ground loops, increasing system reliability in harsh environments. To further increase reliability, this board offers 500W surge protection technology, protecting your system from abrupt high voltage surges, such as those caused by lightning. SUNIX serial board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
Features
- Expands 2 independent RS-422/485 serial ports with communication speeds up to 921.6Kbps
- High reliability SUN1989 16C950 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver 3.0, 2.3, 2.2 & 2.1 specifications
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power
- RS-422/485 auto detect and switching technology – jumper and software free
- AHDC/CSTM technology for collision free communication
- 2.5 KV Isolation Protection for all signal and power
- Circuit Damage Protection of 600W Peak Per IEC 61000-4-5
- Ultra low power consumption design for Green Environment.
- Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, and DOS
Specifications
| Description | |
| Product Description | 2-port RS-422 / 485 Universal PCI Board With Surge & Isolation |
| Serial Communication | |
| Interface | RS-422/485 |
| Controller | SUNIX SUN1989 (16C950 UART Compatible) |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 2-port |
| IRQ & IO | Assigned by System |
| FIFO | 128 byte (Hardware) |
| Signal | RS-422: TxD+, TxD-, RxD+, RxD-, GND |
| 4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND | |
| 2-wire RS-485: Data+, Data-, GND | |
| Baud rate | 50 bps to 921.6 Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | Xon/Xoff (software) |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) |
| ±15KV IEC1000-4-2 Air Gap Discharge | |
| ±8KV IEC1000-4-2 Contact Discharge | |
| Surge Protection | Circuit Damage Protection of 600W Peak Per IEC 61000-4-5 |
| Isolation | 2.5 KV Isolation Protection for all signal and power |
| PCB connector | DB9 Male |
| Driver Support | |
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x |
| DOS | DOS |
| Regulatory Approvals | |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS |
| Software | Microsoft WHQL Windows |
| • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) | |
| • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) | |
| Environment | |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Dimension | |
| PCB Dimension | 120 x 82 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
|
