Industrial 8-port RS-422/485 with Surge & Isolation PCI-Express Serial Card
IPC-E2108SI

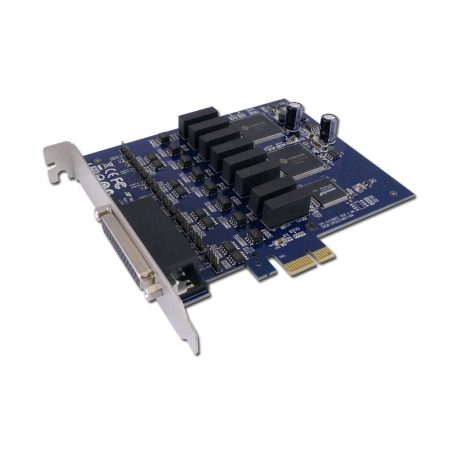

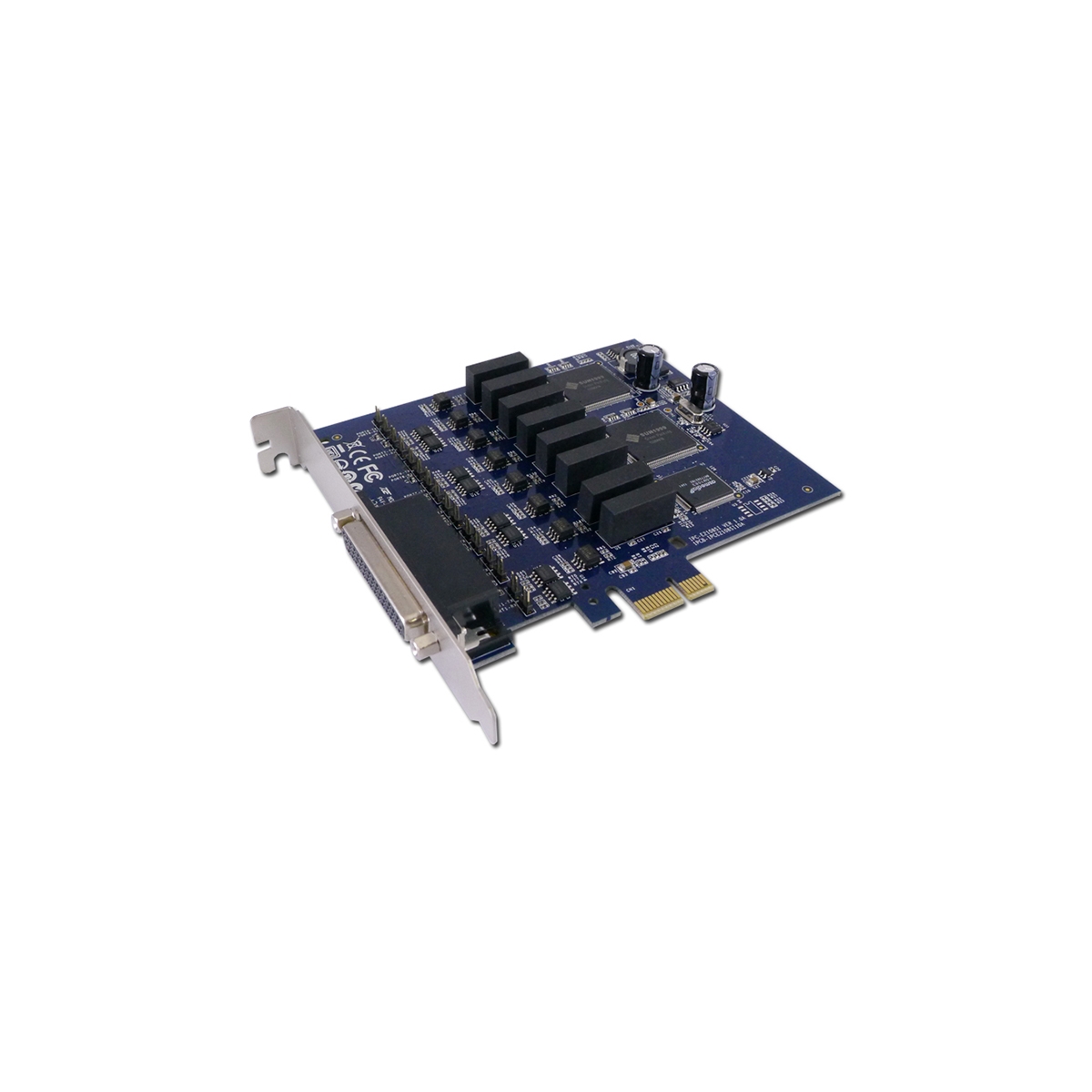

SUNIX IPC-E2108SI, Industrial 8-port RS-422/485 with Surge & Isolation PCI-Express Serial Card, allows users to expand eight RS-422/485 ports on Industrial PC-based system.
รับประกัน 3 ปีเต็ม
Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด
Spec sheetIntroduction
SUNIX IPC-E2108SI, Industrial 8-port RS-422/485 with Surge & Isolation PCI-Express Serial Card, allows users to expand eight RS-422/485 ports on Industrial PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC™ technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. Under RS-485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. SUNIX serial board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
Features
- Expands 8 RS-422/485 serial ports with communication speeds up to 921.6Kbps.
- 2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3.
- 1.5KV isolated protection for all signal and power meets IEC-60747-5-5.
- High reliability SUN1999 16C950 compatible UART controller on-board.
- Compliance with PCI Express 1.0a BUS specifications.
- RS-422/485 auto detect and switching technology – jumper and software free.
- AHDC/CS™ technology for collision free communication
- Ultra low power consumption design for Green Environment.
- Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, and DOS.
Specifications
| Serial Communication | |||
| Interface | RS-422/485 | Baud rate | 50bps ~921.6Kbps |
| Controller | SUNIX SUN1999 | Stop bit | 1, 1.5, 2 |
| (16C950 UART Compatible) | |||
| BUS | PCI Express 1.0a | Parity | even, odd, none, mark, space |
| No. of Port | 8-port | Flow Control | Xon/Xoff (software) |
| IRQ & IO | Assigned by System | FIFO | 128byte Hardware |
| Signal | RS-422: TxD+, TxD-, RxD+, RxD-, GND | ||
| 4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND | |||
| 2-wire RS-485: Data+, Data-, GND | |||
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) | ||
| ±15KV IEC1000-4-2 Air Gap Discharge | |||
| ±8KV IEC1000-4-2 Contact Discharge | |||
| 2KV Surge IEC61000-4-5 Level 3 Surge Immunity Test | |||
| 1.5 KV Isolation IEC60747-5-5 Hi-Pot | |||
| PCB Connector | DB44 Female | ||
| Driver Support | |||
| Windows Client | Windows XP / Vista / 7 / 8.x / 10 (X86/X64) | ||
| Windows Server | Windows 2003 / 2008 / 2012 / 2016 (X64) | ||
| Windows Embedded | Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 | ||
| Linux | Linux 2.x / 3.x / 4.x | ||
| DOS | DOS | ||
| Regulatory Approvals | |||
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS | ||
| Software | Microsoft WHQL Windows | ||
| • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) | |||
| • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) | |||
| Environment | |||
| Operation Temperature | 0 to 70°C (32 to 158°F) | ||
| Operation Humidity | 5 to 95% RH | ||
| Storage Temperature | -20 to 85°C (-4 to 185°F) | ||
| Dimension | |||
| PCB Dimension | 83 x 88 mm | ||
| Bracket | Standard 121 mm | ||
| Bracket Space | 1 | ||
Accessories
Including Accessories
DB44 to 8-port DB9 Male Connection Cable
- 40 cm
- Part No.: 1WDB-44M04009D8000
- 1 pcs.
