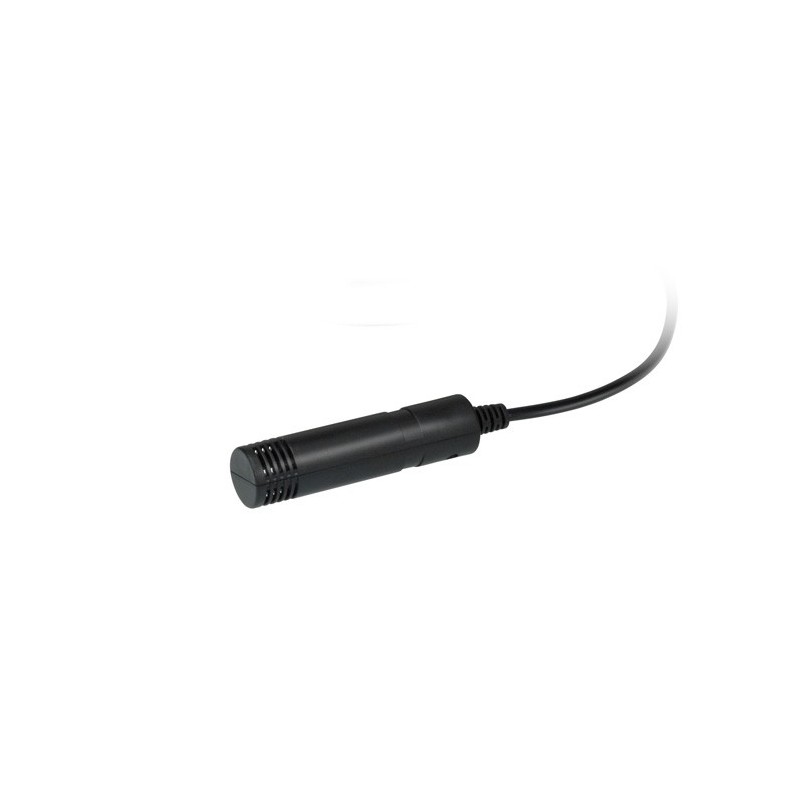

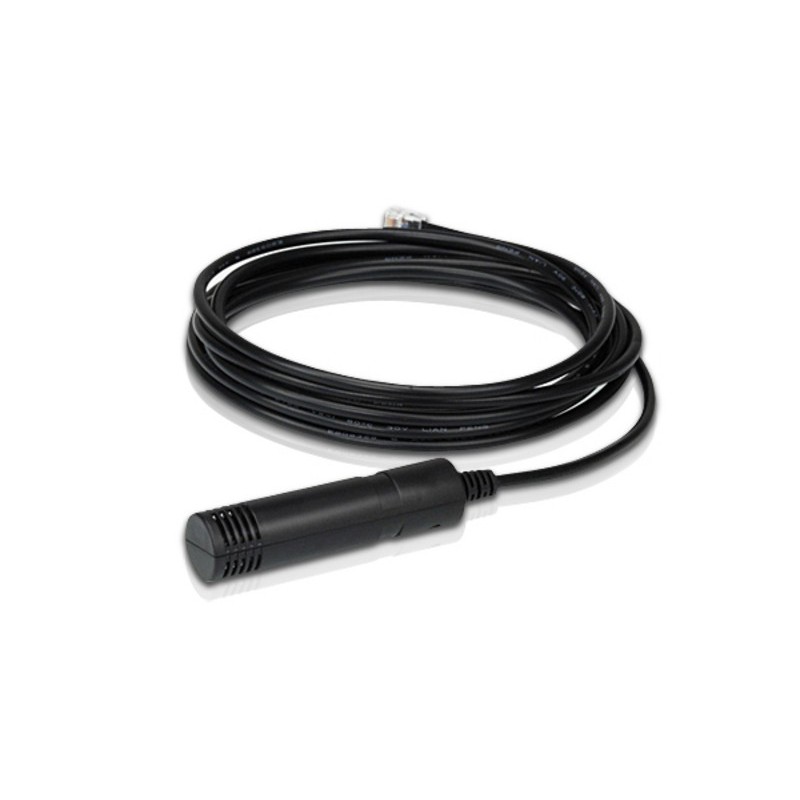

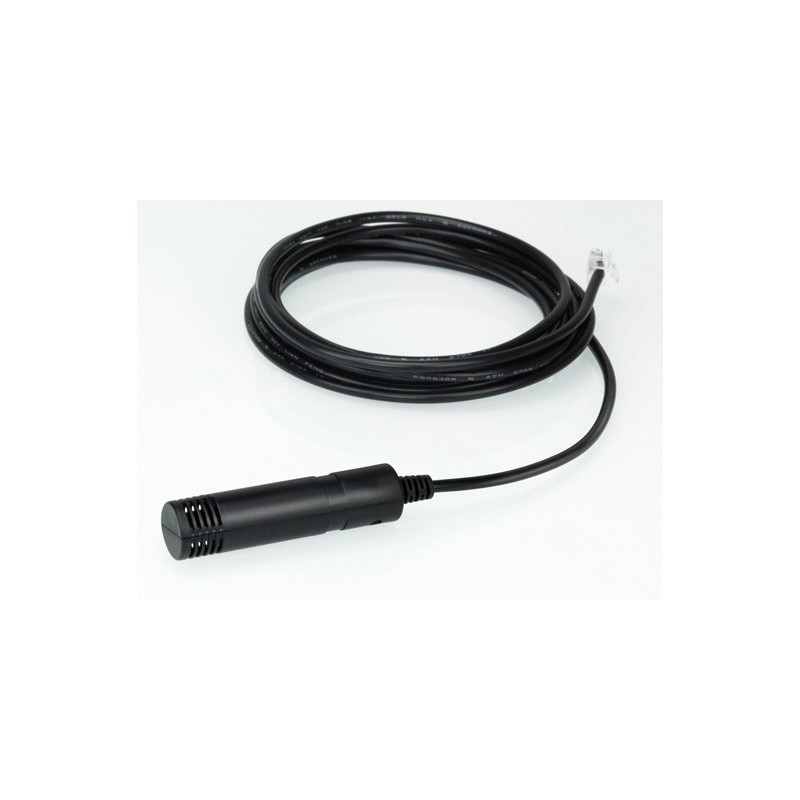

Temperature Sensor
EA1140
For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of temperate.
รับประกัน 3 ปีเต็ม
For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of temperate. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature.
*The Sensor is an optional accessory. You can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.
Features
- Measurement range: 0 – 40°C
- Measurement accuracy: +/- 1°C
- Compact design – built in 3 m cable
- High sensitivity
- Easy operation
Specification
| Connectors | RJ-11 Male | |
| Measurement | Range | 0 – 40°C |
| Accuracy | +/- 1°C | |
| Supply Voltage | 5VDC (Max.) | |
| Current Consumption | 5mA max: (2mA avg.) | |
| Environment | Operating Temp. |
0 – 55°C |
| Storage Temp. | -20 – 70°C | |
| Humidity | < 95% RH | |
| Housing | Plastic | |
| Weight | 0.06 kg | |
| Cable Length | 3 meter | |
Package Content
- 1x EA1140 Temperature sensor
- 1x Sensor mount
- 4x Tie wrap
- 3x Adhesive cable tie holder
