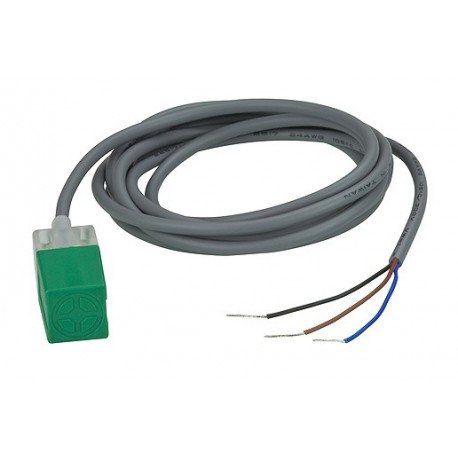

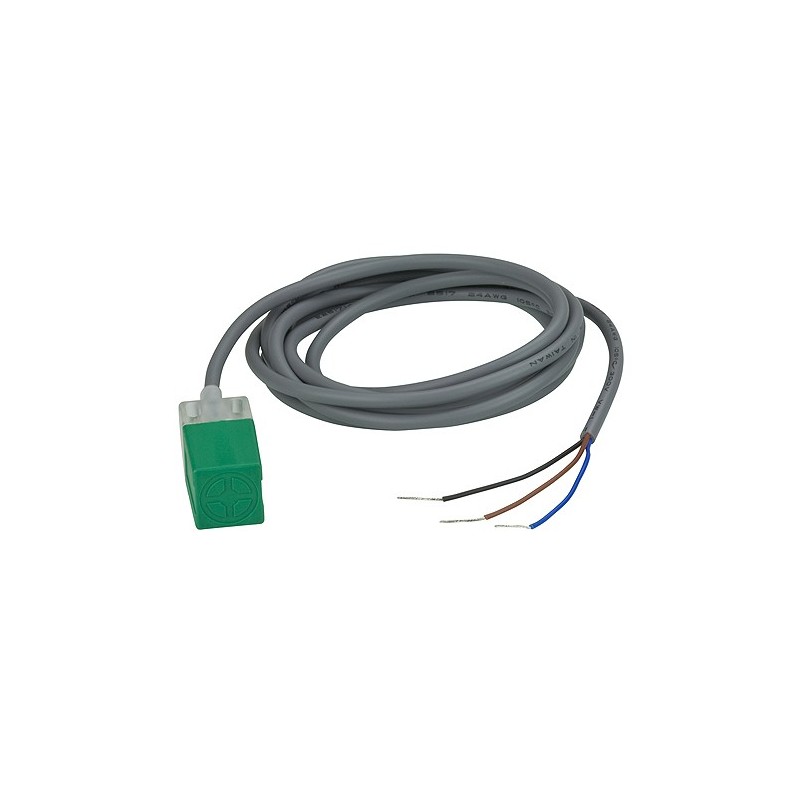

Inductive Proximity Door Sensor
EA1441
The Inductive Proximity Door Sensor allows the monitoring of a rack mounted enclosure’s door access – notifying users when a door has been opened
**Support model : EC2004, PE7216, PE7324, PE7328, PE8216, PE8324, PE9216, PE9324, PE9330
รับประกัน 3 ปีเต็ม
Spec SheetFor the security of your data center, ATEN provides Inductive Proximity Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.
* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.
**Support model : EC2004, PE7216, PE7324, PE7328, PE8216, PE8324, PE9216, PE9324, PE9330
Features
- The Inductive Proximity Door Sensor allows the monitoring of a rack mounted enclosure’s door access – notifying users when a door has been opened
- High sensitivity
- Easy operation

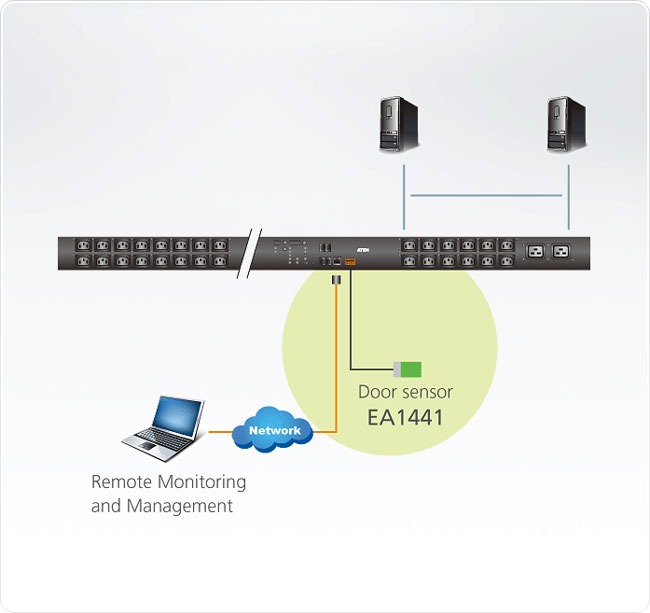

Diagram
Specification
| Operating voltage | 10-30VDC |
| Ripple of power | 20% peak to peak |
| Current consumption | 10mA max. |
| Sensing distance | 5.0 mm |
| Hysteresis | 10% of sensing distance max |
| Response frequency | 800Hz min. |
| Output method | PNP |
| Output status | NO |
| Output current | 150mA max. |
| Residual voltage | 0.1V max. |
| Leakage current | 0.8mA max. |
| Protection circuit | Short circuit & polarity reversed protection |
| Connection | 3c/4.0 |
| Dielectric strength | 2.5kv / 1 minute min. |
| Insulation strength | 100 MΩ / 500vdc |
| Operating circumstance | -20°C - +80°C ; 35% - 95% RH |
| Protection class | IP-67 |
Package Contents
- 1x Inductive Proximity Door Sensor
- 2x Screw
- 1x Bracket
- 1x Velcro
