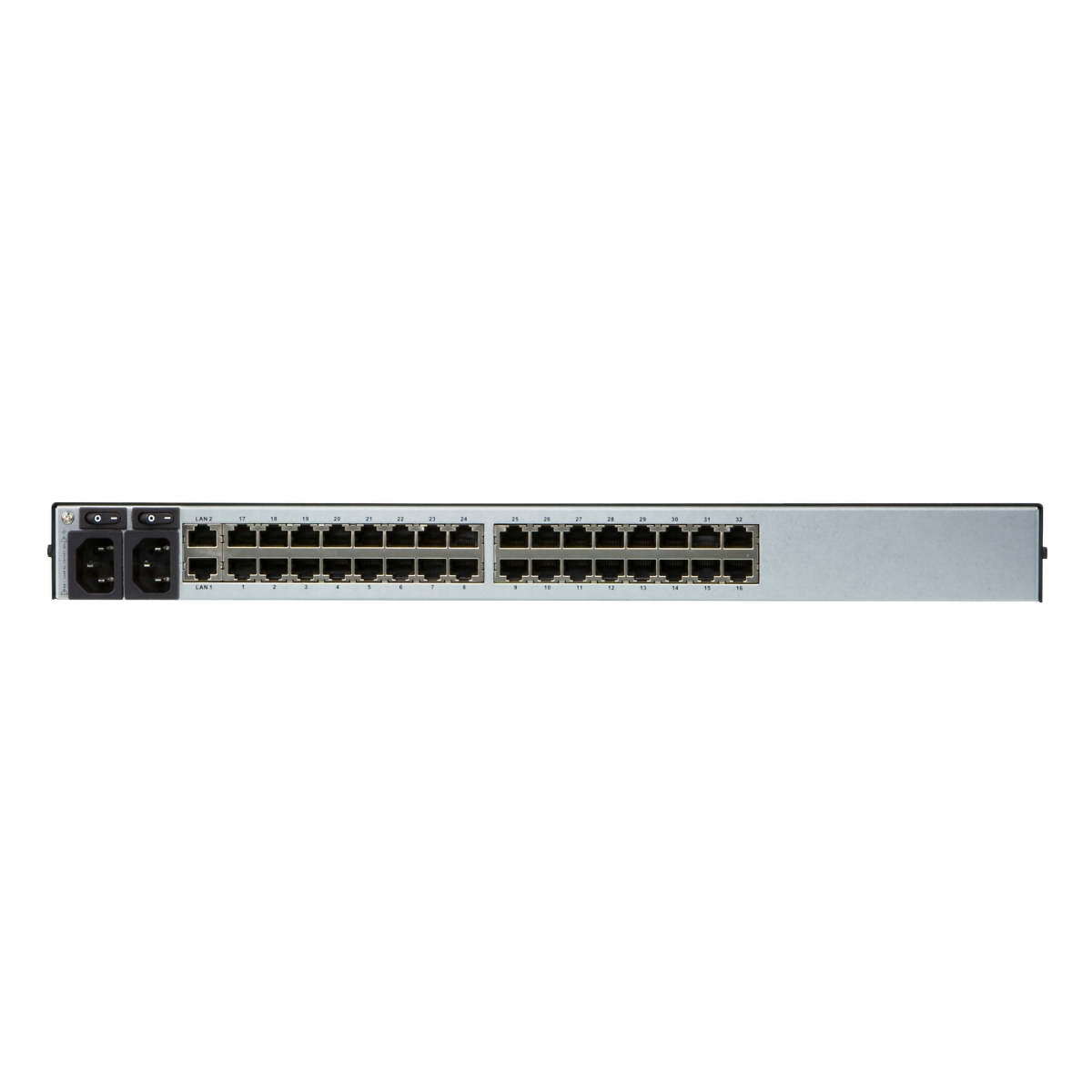

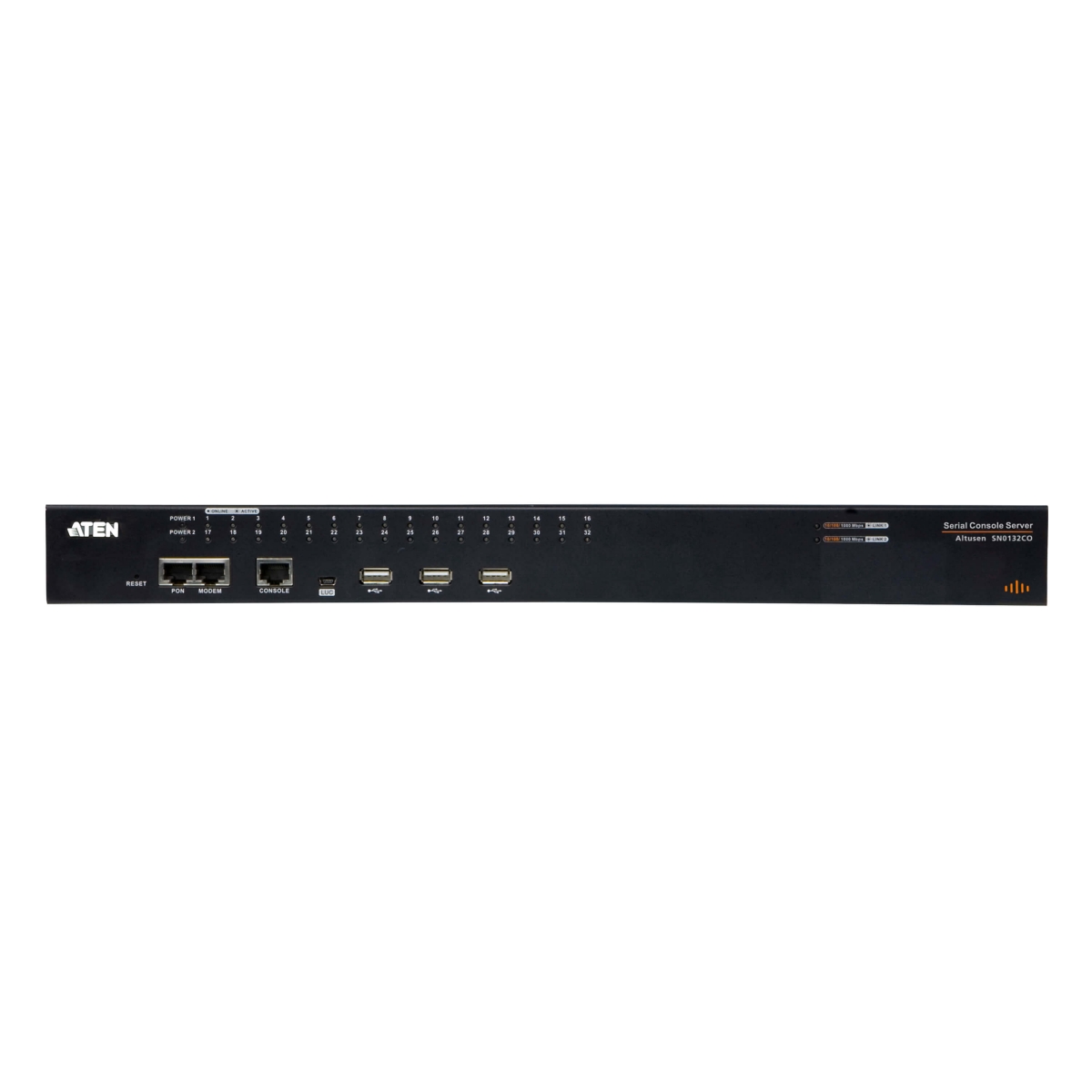

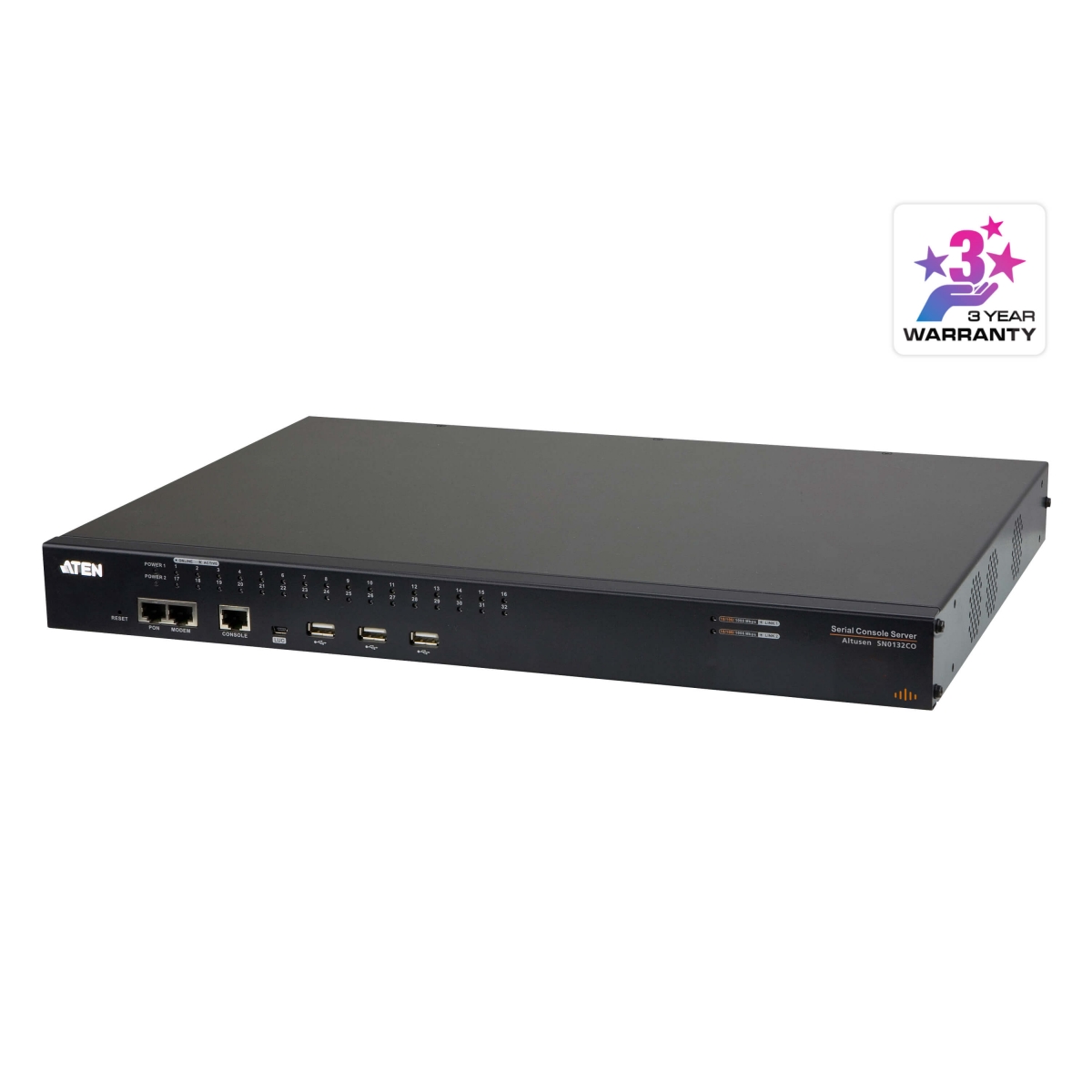

32-Port Serial Console Server with Dual Power/LAN
SN0132CO
ATEN launches a new generation of Serial Console Servers, the SN01xxCO Series (SN0108CO / SN0116CO / SN0132CO / SN0148CO). With dual power / LAN in SN01xxCO models, they integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.
รับประกัน 3 ปีเต็ม
Spec sheetFeatures
-
System Accessibility and Availability
- Secure in-band and out-of-band remote serial console access
- Browser access with an intuitive GUI
- Terminal-based access with a menu-driven UI
- Modem dial-in/dial-back/dial-out access
- Front USB ports for storage or USB-based PC cards
- Laptop USB Console (LUC) port for local console access via laptop
- Dual Ethernet ports allow fail control or dual IP address access
- Dual power supply
-
Serial Console Management
- Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
- Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
- Response Check － checks the system status of the connected serial devices, and sends a notification if the check fails (e.g. system crash)
- Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
- Easy port access via selectable ActiveX or Java serial viewer
- Comprehensive viewer functions – copy/paste, logging, data import, macros, broadcasting and message board
- Sun Solaris ready – Sun “break-safe”
- Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
- Command filter – administrators can restrict users to execute only pre-defined commands
- Multiple users can simultaneously access the same port – up to 16 connections per port
- Modes for simultaneous access – Exclusive/Occupy/Share
- Integrates with ATEN PDU* products for power management of each port
-
Security
- Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
- Configurable user permissions for port access and control
- Local and remote authentication and login
- Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
- IP and MAC address filter for enhanced security protection
- High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
- Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control
-
System Management
- System configuration via web browser, Telnet/SSH client and local console
- System log and event login
- Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive
- SNMP agent
- Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
- Backup / Restore system configuration and upgradeable firmware
- Multi-browser support – Internet Explorer, Chrome, Firefox
- NTP for time server synchronization
- IPv4 / IPv6 support
- Integrates into CC2000 software for centralized data center management
- Integrates into CCVSR software for user session recording
-
Serial Device Management
- Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
- Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
- Real TTY driver for Linux
- Fixed TTY driver for UNIX**
- Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps
-
Language
- Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese
Note:
* PG Series
** Fixed TTY Driver Supports 1) OpenServer (Sco Unix); 2) UnixWare 7, SVR 5; 3) UnixWare 2.1, SVR 4.2; 4) QNX 4.25,QNX 6; 5) FreeBSD; 6) Solaris 10; 7) AIX 5.x; 8) HP-UX 11i
- Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese

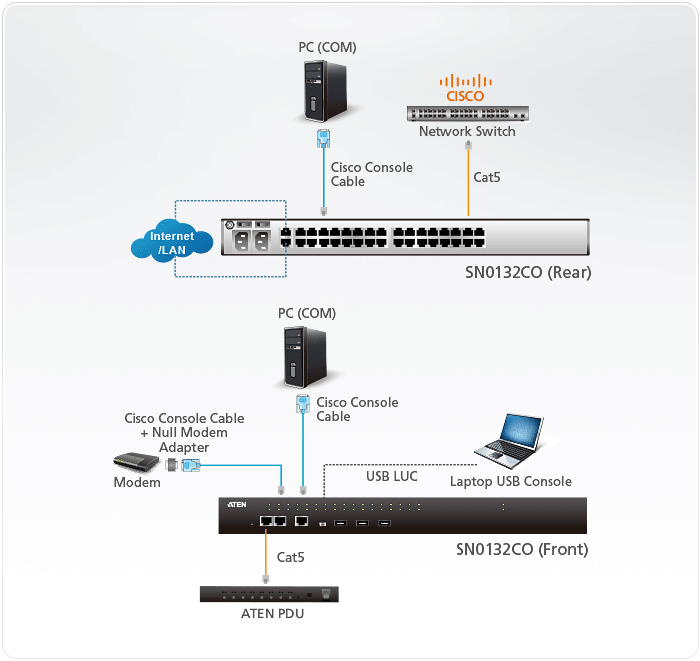

Diagram
Specifications
| Connectors | |
| Serial | 32 x RJ-45 Female |
| LAN Ports | 2 x RJ-45 Female |
| Power | 2 x IEC 60320/C14 |
| Local Console | 1 x RJ-45 Female |
| Modem | 1 x RJ-45 Female |
| PON | 1 x RJ-45 Female (Reserved) |
| Laptop USB Console (LUC) Port | 1 x Mini USB |
| USB Port | 3 x USB Type A Female |
| Switches | |
| Power | 2 x Rocker Switch |
| Reset | 1 x Recessed Pushbutton |
| Maximum Input Power Rating | 100–240VAC; 50/60Hz; 1.8A |
| Power Consumption | AC110V:20.2W:127BTU AC220V:21W:130BTU |
| LEDs | |
| Serial | 32 (Green) |
| 10/100/1000 Mbps | 2 (Red/Orange/Green) |
| Power | 2 (Blue) |
| Mode of Operation | Console Management,Console Management Direct,Real Com Port, TCP Server/Client, UDP Server/Client, Virtual Modem |
| Environmental | |
| Operating Temperature | 0 - 40˚C |
| Storage Temperature | -20 ~ 60˚C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 4.84 kg ( 10.66 lb ) |
| Dimensions (L x W x H) | 43.84 x 32.77 x 4.40 cm (17.26 x 12.9 x 1.73 in.) |
| Note | SN0132COD with dual DC power (I/P Rating: 36-48 V DC; 1.6 A in 5-Pin Terminal Block, Power Consumption: DC48V/22.1W) available at customer’s request |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
- 1x SN0132CO Serial Console Server
- 1x Laptop USB Console Cable
- 2x Power Cords (AC models)
- 1x Mounting Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
