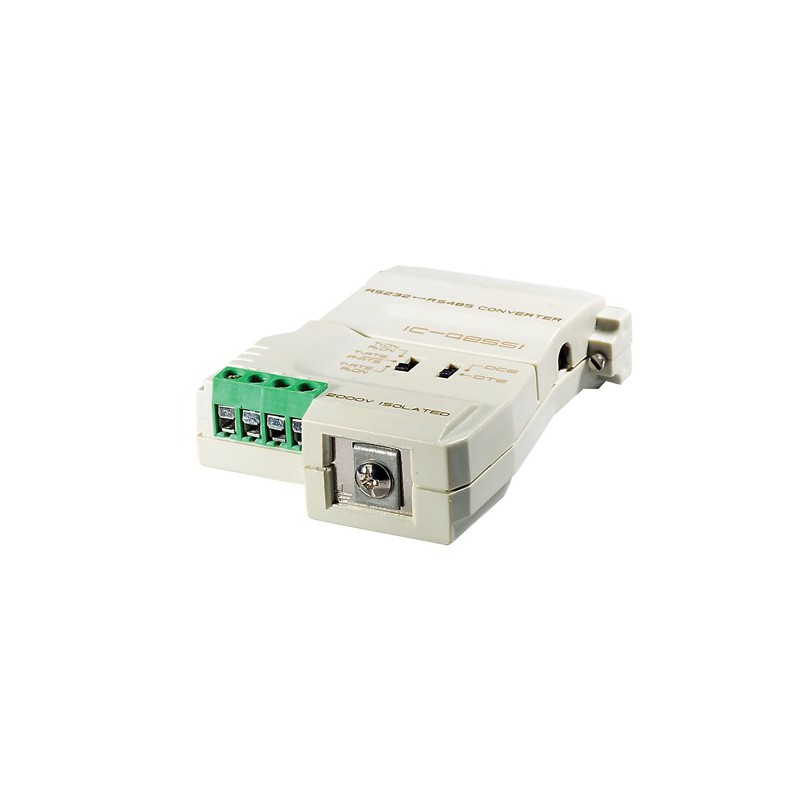

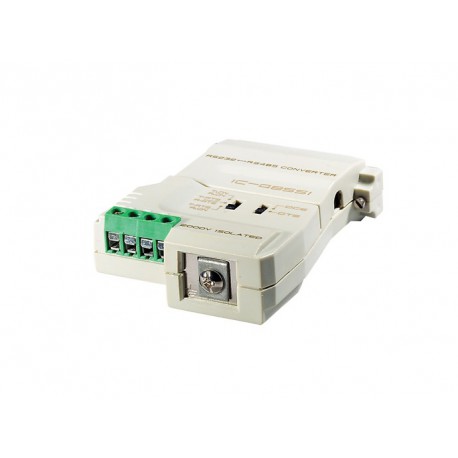

ATEN RS232 to RS422/485
IC485SI
Opto Isolator, ตัวแปลง RS232 เป็น RS485 / RS422, support cable length 1200m, Baud Rates support up to 100kb
รับประกัน 3 ปีเต็ม
RS-232/RS-485 Interface Converter
IC485SI transfers data according to RTS (transfer requests) signal control. It supports point-to-point and multipoint communication, simplex/duplex connections, and is switchable between full duplex and half duplex, and DCE and DTE. It needs no external power supply and is the most economical and reliable option.
Features
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex; two wire half duplex.
- Compact size.
- Cable distance of up to 1200m (4000 ft.).
- Signal and power isolation.
- Supports baud rates up to 115.2kbps.
- OS Support: Windows 2000, Windows XP
Package Content
- 1x Bi-directional Converter
- 1x Power Adapter
- 1x User Manual
Specification
|
||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||
| * The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders. |
