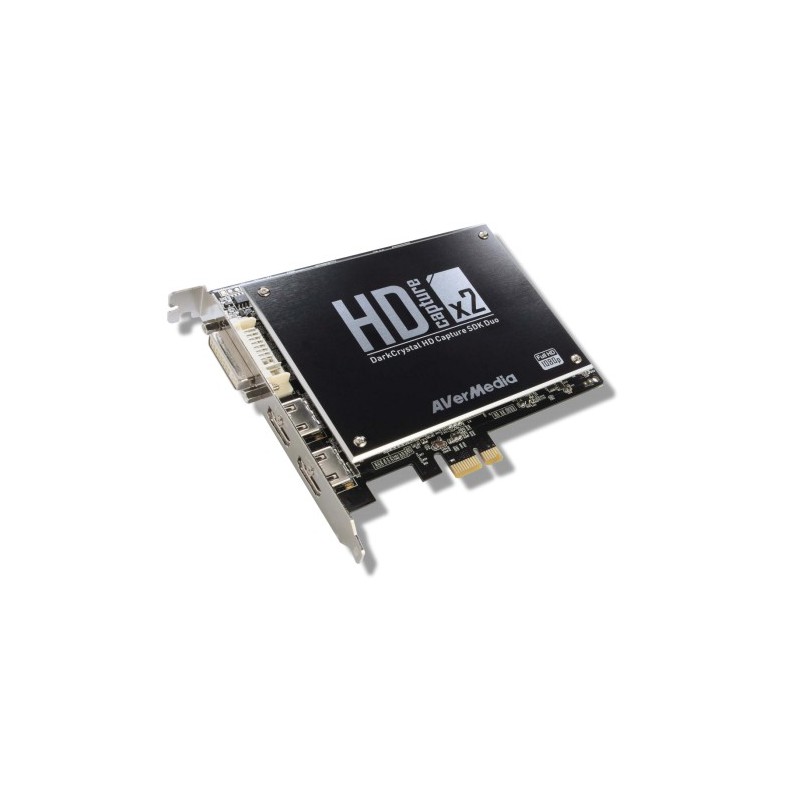

DarkCrystal HD Capture SDK Duo
C129
DarkCrystal HD Capture SDK Duo is a 1080p HD capture card which allows capture video from 2 HD sources and 2 SD sources simultaneously. It can be used for the most mission-critical applications while saving the precious PCI-E slot for other crucial needs.
รองรับ Windows® 8/7/Vista™/XP (32/64-Bit)
สะดวกสั่งซื้อผ่าน Online คลิกที่นี่
โปรโมชั่นพิเศษเพียง 4,990 บาท (ปกติ 12,290) ประกัน 1 ปี
สอบถามรายละเอียดเพิ่มเติมได้ที่
Manualรองรับ Windows® 8/7/Vista™/XP (32/64-Bit)
AverMedia Capture Card ติดตั้งง่าย ไร้ปัญหา ความไม่เข้ากันกับ เมนบอร์ด หรือ ชิบเซ็ตใด ๆ มาพร้อม SDK สำหรับนักพัฒนา Software ฟรี
The exclusive hardware design of AVerMedia DarkCrystal HD Capture Duo facilitates and video professional to monitor, archive, verify, master or broadcast HD Video content with more flexibilities and possibilities. It is designed to fullfill the high-density HD capture or encoding demands. With only one PCI-E slot, it is capable of preserve up to 4 video from analog or digital sources in SD or HD quality simultaneously. The dual HDMI ports get the uncompressed 1080p video from HD camcoders, set-top boxes or other video devices directly in 8-bit color precision. Meanwhile, the PCI-Express interface takes care of high-speed transmission without frame drop.
Beside the comprehensive video input selection, the VESA resolution support allows DarkCrystal HD Capture Duo meet various needs from different industries. Also, this four-in-one capture card is fully DirectShow compatible. That means it can work perfectly with your familiar video streaming or post-production software. To expand the scope of application DarkCrystal HD Capture SDK Duo is shipped with Software Development Kit that includes offen-used functions for web broadcasting, lab, healthcare and manufacturing. This factor also makes it an idel solution for system integration. Even better, the accompanying Adobe Premiere Pro plug-in facilitates video capturing and processing on Adobe Premiere Pro CS6.
*Capturing HDCP (HIGH-Bandwidth Digital Protection) is not supported.
Software Support:
- Windows Media Encoder 9
- GraphEdit
- AMCap
- Adobe Premiere Pro
- Adobe Flash Media Live Encoder 3
- Corel VideoStudio
- CyberLink PowerDirector
- CyberLink PowerProducer
- Real Producer (v13)
- VLC Media Player

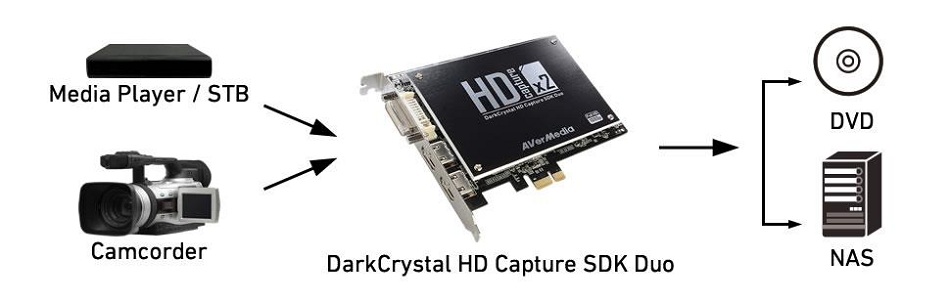

Diagram
Specifications
| Interface | PCIe 1x Gen2 |
| Input | S-Video x 2 (through breakout cable) |
| Composite (RCA) x 2 (through breakout cable) | |
| Component (YPbPr) x 2 (through breakout cable) | |
| Audio (L/R) x 2 (through breakout cable) | |
| HDMI x 2 | |
| Input Video Resolution | Composite & S-Video: |
| 720 x 480@60i, 720 x 576@50i | |
| Component: | |
| 720 x 480@60i/60p, 720 x 576@50i/50p, 1280 x 720@50p/60p, 1920 x 1080@50i/60i | |
| HDMI: | |
| 640x480@60/72/75/85 / 720x480@60i/60p / 720x576@50i/50p / 800x600@56/60/72/75/85 / | |
| 1024x768@60/70/75/85 / 1152x864@75 / 1280x720@50p/60p / 1280x768@60 / 1280x800@60 / 1280x960@60 / | |
| 1360x768@60 / 1280x1024@50 / 1440x900@50 / 1600x1200@30 / 1680x1050@35 / 1920x1080@50i/60i / 1920x1080@24/25/30 | |
| Capture Video format | Composite & S-Video: |
| 720 x 480, 720 x 576 | |
| Component: | |
| 640 x 480, 720 x 480, 720 x 576, 1280 x 720, 1920 x 1080 | |
| HDMI: | |
| 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1152x864 / 1280x720 / 1280x768 / 1280x800 / | |
| 1280x960 / 1360x768 / 1280x1024 / 1440x900 / 1600x1200 / 1680x1050 / 1920x1080 | |
| Pixel Format | YUY2 (4:2:2), YVYU (4:2:2), UYVY (4:2:2) |
| Color Adjustment | Composite & S-Video: Brightness, Contrast, Hue (NTSC only), Saturation |
| Component: Brightness, Contrast | |
| HDMI: Not supported | |
| Multi-Card Support | Yes (up to 8 pcs) |
| Programming Language | Visual Basic, Visual C++, Delphi, C#, VB.NET |
| SDK Framework | General DLL |
| Operating Environment | Temperature: 0 to +60 ℃ |
| Humidity: 0 to 90% RHNC | |
| Storage Environment | Temperature: -20 to +60 ℃ |
| Humidity: 0 to 90% RHNC | |
| Power Requirement | 3.3V max 3A |
| Dimensions (L x W) | 124.8 x 110mm |
| System Requirements | |
| CPU | For SD Video Capturing (MPEG-2 Format) |
| -Intel® Core™2 Duo Processor E8400 3.0GHz | |
| -AMD Athlon™ II X3 450 3.2GHz | |
| For HD Video Capturing (MPEG-2 Format) | |
| -Intel® Core™ i5 750 or AMD equivalent | |
| For HD Video Capturing (H.264 Format) | |
| -Intel® Core™ i5 3570 or AMD FX-8150 Eight-Core | |
| Memory | 512 MB RAM |
| *2GB RAM is recommended for HD video capturing. | |
| VGA | VGA card with support for DirectX9.0c or above |
| *Standalone graphics card is recommended for HD video capturing. | |
| Sound Card | Yes |
| Supported OS | Windows 7/8.1/10 (32/64 bits), Linux (32/64 bits)* |
