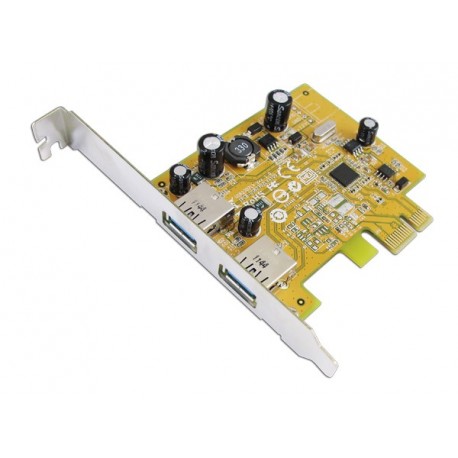

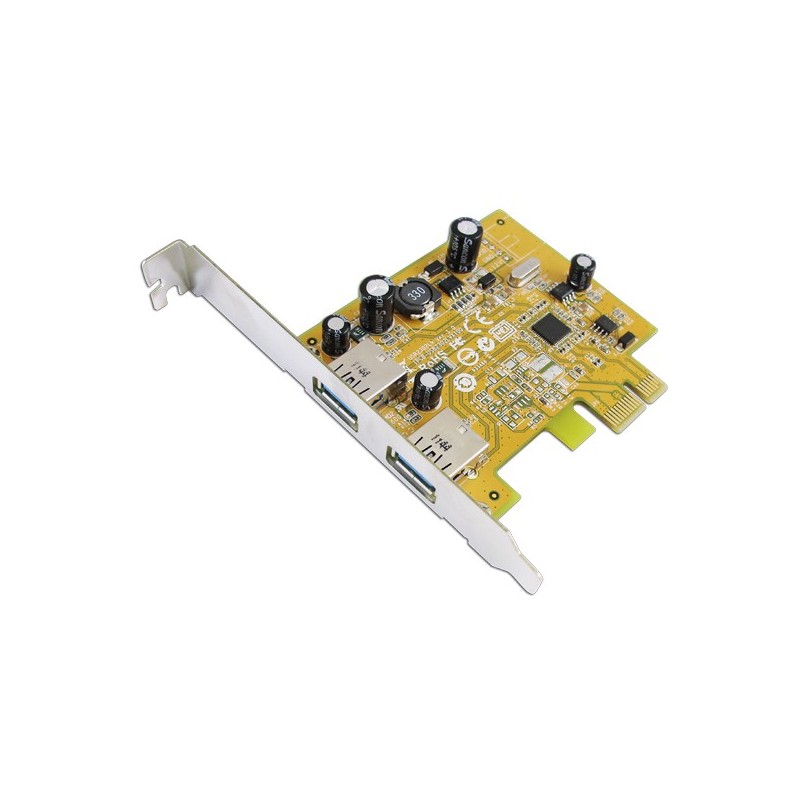

USB3.0 Dual ports PCI Express Host Controller
USB2302
การ์ดเพื่อพอร์ต USB3.0 ให้เครื่อง PC 2 ช่อง ติดตั้งทาง 1x Slot PCI-Express รองรับทั้ง Windows XP, 7, Vista, 8, 8.1, 10 และ Windows Server
รับประกัน 3 ปีเต็ม
Manual
Introduction
Super-Speed USB 3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. With 10 times faster throughput than USB 2.0 standard and backward compatible with current USB device features, USB 3.0 interface will be the trendy of IT technology.
SUNIX USB2302 is a dual-port Super-Speed USB 3.0 PCI Express card, and compliant with the PCI Express Generation 2 specification for host PC system. It works up to 5 Gbps for data transfer when connecting to USB 3.0 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. With USB Hot-Swapping and Plug-n-Play function, you don't have to worry about running out of slots on your motherboard or complicated hardware installation process.
SUNIX USB2302 card supports USB 3.0 High-Speed device and backward compatible with USB 2.0 High-Speed and USB 1.1 Full-Speed device. With SUNIX unique technology, it can output efficient power to USB device without additional power adapter connection. SUNIX USB2302 is an ideal choice for external storage devices, MP3 players, external writer, digital cameras, webcam, networking and video devices, and all other USB devices.
Features
- USBIF certificated USB 3.0 host card TID 350000174
- Supports PCI Express Base Specification Revision 2.0.
- Single-lane (x1) PCI Express throughput rates up to 5 Gbps.
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0.
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.0.
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
- Supports USB data transfer rate of 1.5/12/480/5000 Mbps.
- Expands two external USB 3.0 Super-Speed ports on the system.
- Each USB port supplies maximum +5V / 900mA power output to USB device.
- Hot-swapping feature allows connect/disconnecting devices without powering down the system.
- Driver supports for Microsoft Windows XP, Vista,7, 2008, 8 and 8.1 operation system.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval. (
ข้อมูลเพิ่มเติม)
Specification
| Interface | Single-Lane (x1) PCI Express Gen2 |
| Mode | Universal Serial Bus 3.0 |
| Controller | Renesas (NEC) µPD720202 |
| PCB Version | Ver1.0 |
| USBIF TID | TID350000174 |
| Port | 2 external USB 3.0 ports |
| Speed | Data Transfer rate of 1.5/12/480/5000 Mbps. Low Speed (1.5Mbps), Full Speed(12Mbps), High Speed(480Mbps), SuperSpeed(5Gbps) |
| Power Input | PCIe Bus Power |
| Power Output | +5V / 900mA (each port) |
| PCB Dimension | 78 (W) x 68 (L) mm |
| Bracket | Standard 121mm |
| Certified | EUR: CE, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3 US: FCC Part 15 Class B TAIWAN: BSMI: CNS13438 JAPAN: VCCI |
| O.S. Support | Windows XP/2003/Vista/7/2008/8/8.1/10 (32/64-bit) Linux 2.6.31 or later (Linux OS already implemented USB 3.0 driver) |
Environment |
Operation temp. 0 °C ～ 57 °C Operation humidity: 5 ～ 95% RH Storage temp.-20 °C ～ 85 °C |
Package
- USB2302
- CD Driver
- User's Manual

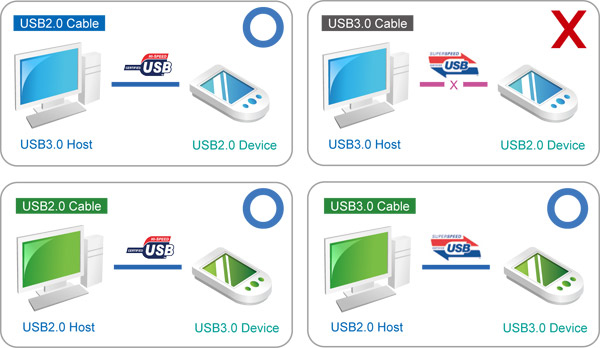

Backward Compatible Application

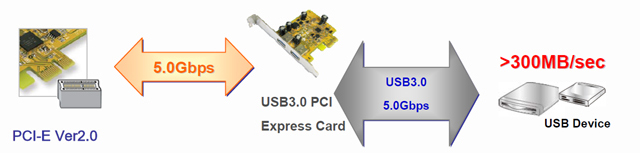

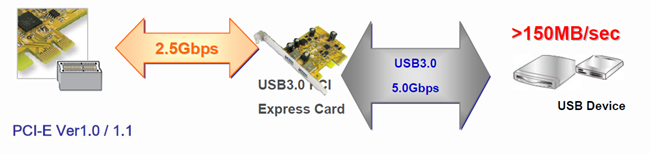

The Performance of USB 3.0
.jpg)
.jpg)
USB Comparison
| Logo | Speed | Transmission | Power | Cable | |
| USB 1.1 | .jpg){kind=small} |
Low-speed (1.5 Mbps) Full-speed (12 Mbps) |
Half-duplex two-wire differential signaling Unidirectional data flow with negotiated directional bus transitions |
5V / 500mA | 5M |
| USB 2.0 | .jpg){kind=small} |
Low-speed(1.5Mbps) Full-speed(12Mbps) High-speed(480Mbps) |
5V / 500mA | 5M | |
| USB 3.0 | .jpg){kind=small} |
Low-speed(1.5Mbps) Full-speed(12Mbps) High-speed(480Mbps) Super-speed(5.0Gbps) |
Dual-simplex, four wire differential signaling separate from USB2.0 signaling Simultaneous bi-directional data flows |
5v / 900mA | 5M |
Download Driver
| Driver | USB3.0 Windows Inbox Driver |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
|
| Driver | RENESAS-USB3-Host-Driver-30230-setup |  |
| Version | V3.0.23.0 | |
| Update | 2013-06-10 18:03:54 | |
| Size | 9.1MB | |
| OS |
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2008 R2 SP1 64bit
|
| Driver | USB3.0 Linux Inbox Driver |
| OS |
Linux 2.6.31 above
|
