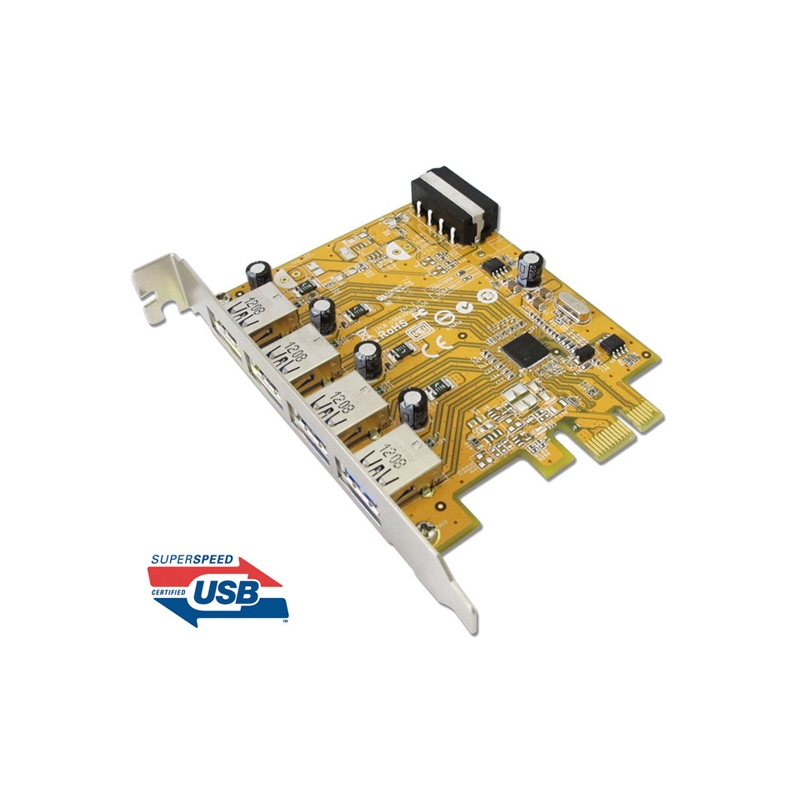

USB 3.0 4-port PCI Express Host Controller
USB4300N
SUNIX USB4300N card supports USB 3.0 High-Speed device and backward compatible with USB 2.0 High-Speed and USB 1.1 Full-Speed devices. It is an ideal choice for external storage devices, MP3 players, external writer, digital cameras, webcam, networking and video devices, and all other USB devices.
รับประกัน 3 ปีเต็ม
Spec sheetSuper-Speed USB 3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. With 10 times faster throughput than USB 2.0 standard and backward compatible with current USB device features, USB 3.0 interface will be the trendy of IT technology.
SUNIX USB4300N is a four-port Super-Speed USB 3.0 PCI Express card, and it is compliant with the PCI Express Generation 2 specification for host PC system. It works up to 5 Gbps for data transfer when connecting to USB 3.0 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. With USB Hot-Swapping and Plug-n-Play function, you don't have to worry about running out of slots on your mother board or complicated hardware installation process.
SUNIX USB4300N card supports USB 3.0 High-Speed device and backward compatible with USB 2.0 High-Speed and USB 1.1 Full-Speed devices. It is an ideal choice for external storage devices, MP3 players, external writer, digital cameras, webcam, networking and video devices, and all other USB devices.
Features
- USBIF certificated USB 3.0 host card TID 350000211
- Supports PCI Express Base Specification Revision 2.0.
- Single-lane (x1) PCI Express throughput rates up to 5 Gbps.
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0.
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.0
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
- Supports USB data transfer rate of 1.5/12/480/5000 Mbps.
- Expands four external USB 3.0 Super-Speed ports on the system.
- Each USB port supplies +5V / 900mA power output to USB device.
- Hot-swapping feature allows to connect / disconnect devices without powering down the system.
- Driver supports for Microsoft Windows XP, Vista, 7, 2008, 8 and 8.1 operation systems.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม)
Specifications
| Interface | Single-Lane (x1) PCI Express Gen2 |
| Mode | USB 3.0 |
| Controller | Renesas uPD720201 |
| USBIF TID | 350000211 |
| Port | 4 external USB 3.0 ports |
| Speed | Data Transfer rate of 1.5/12/480/5000 Mbps. Low Speed (1.5Mbps), Full Speed(12Mbps), High Speed(480Mbps), SuperSpeed(5Gbps) |
| Power Input | 4-pin CD-ROM Type Power Connector |
| Power Output | +5V / 900mA (each port) |
| PCB Dimension | 78 (W) x 99(L)mm |
| Bracket | Standard 121mm |
| Certified | CE, FCC, VCCI, BSMI |
| O.S. Support | Windows XP/2003/Vista/7/2008/8/8.1/10 (32/64-bit) Linux 2.6.31 or later (Linux OS already implemented USB 3.0 driver) |
Environment |
Operation temp. 0 °C ～ 57 °C Operation humidity: 5 ～ 95% RH Storage temp.-20 °C ～ 85 °C |
Download Driver
| Driver | USB3.0 Windows Inbox Driver |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64bit
|
