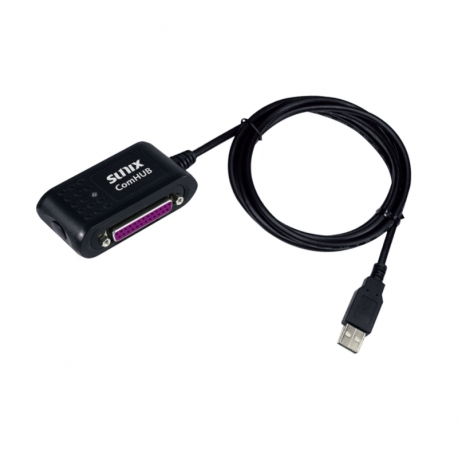

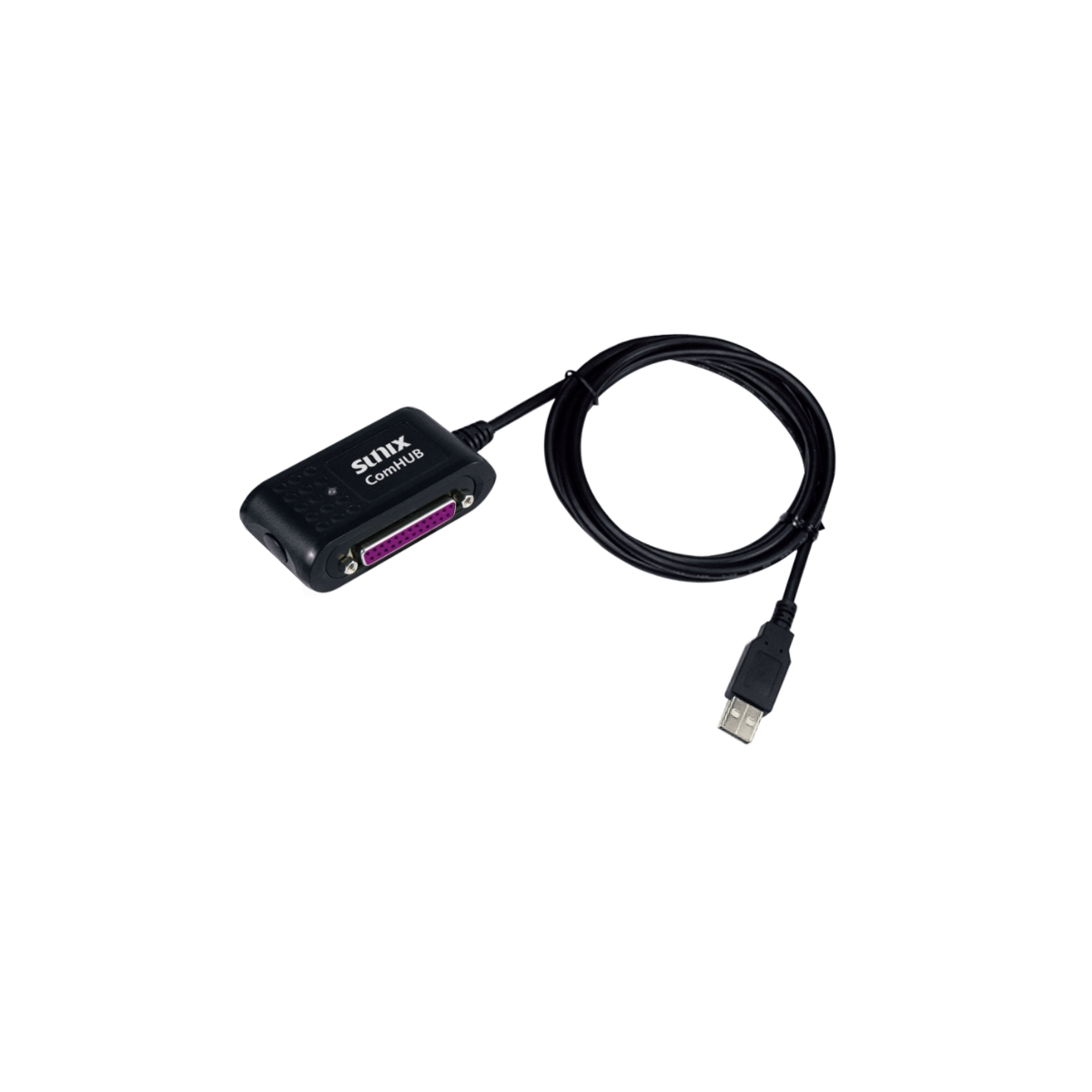

SUNIX ComHub UTM1925C transform your Universal Serial Bus (USB) port into a RS-232 serial ports and a printer port for communication with serial and parallel devices. The UTM1925C adapter is compatible with both USB 2.0 and 1.1 specifications and provides a serial port with transfer speed up to 115.2Kbps. It provides a quick, simple and cost-effective way to bring the advantages of data accessibility and mobile solution for kinds of commercial and industrial automation applications.
Features
- Expands RS-232 serial and Parallel LPT ports through USB interface
- Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature
- No IRQ, DMA, I/O address resource required
- Serial port provides transmission rate up to 115.2Kbps
- IEEE1284 Parallel (LPT) port supports SPP mode with transfer speed up to 2.7MB/sec.
- Supports USB 1.1 full speed 12Mbps, and it is also USB 2.0 and 3.1 compatible.
- Supports USB bus power supply
- Built-in ±15KV ESD protection for all serial signals.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, VCCI, BSMI, and RoHS.
- Support Microsoft Windows and Linux.
Specification
Description
|
Product Description |
USB to USB to 1-port RS-232 & 1-port Printer Adapter |
|
Serial Communication
|
Interface |
RS-232 |
Controller |
Serial port: PL2303GC |
Bus Interface |
Universal Serial Bus (USB) 2.0 / 1.1 |
No. of Port |
1-port |
IRQ & IO |
Assigned by System |
FIFO |
16 byte (Hardware) |
Signal |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
Baud rate |
50 bps to 115.2 Kbps |
Data bit |
5,6,7,8 |
Stop bit |
1,1.5,2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
RTS/CTS (Hardware) , XON/XOFF(Software) |
Protection |
±15KV ESD protection for each signal |
Board connector |
DB9 Male |
|
Printer Communication
|
Interface |
Printer |
Controller |
Printer port: PL2305 |
No. og port |
1-port |
Mode |
SPP Mode (Support Printer only) |
Cable connectors |
DB25 Female |
ESD Protection for Parallel I/O |
±2KV ESD Protection |
|
Driver Support |
Microsoft Windows |
Windows 7/ 8.x/ 10 (X86/X64) |
Microsoft Server |
2008/ 2008R2/ 2012/ 2012R2/ 2016/2019 |
Linux |
Linux 2.4.3.1 and above |
MAC |
MAC OS 10.9/ 11 |
|
Regulatory Approvals
|
EMC |
CE, FCC, VCCI, BSMI |
Green |
RoHS, WEEE, REACH |
|
Environment
|
Operating Temperature |
0 to 60 °C ( 32 to 140 °F ) |
Operating Humidity |
0% to 85% RH |
Storage Temperature |
-30 to 85 °C ( -22 to 185 °F ) |
|
Power
|
Input |
USB Bus-power |
Consumption |
<1W = 5V x 200mA |
|
Mechanical
|
Dimension |
75 (W) x 40 (D) x 22 (H) mm |
Cable Length |
1500mm (5ft) |
Case |
ABS |
Weight |
106 ± 5 g |
|
Package Content
- UTM1925C
- Quick Installation Guide
Download Driver
Driver |
PL23XX_Prolific_DriverInstaller_v206 |
|
Version |
V2.0.6 |
Update |
2021-07-26 09:52:00 |
Size |
10.8MB |
OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows XP SP3 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 64-bit
|
