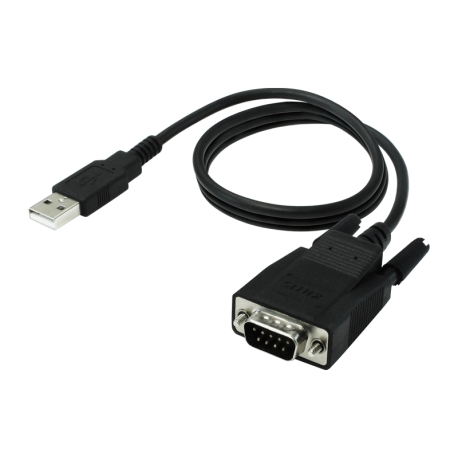

1 port USB-to-RS-232 Adapter
UTS1009GC
- สายแปลงจาก USB เป็น Serial Port RS-232
- ความเร็วสูงสุดในการโอนถ่ายข้อมูลสูงถึง 115.2Kbps
- มี ± 15KV ESD protection ในตัว
- ผ่านการรับรองมาตรฐาน CE, FCC, RoHS, and Microsoft WHQL approval
- ใช้ได้ทั้ง Windows, Mac, Linux
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX ComHub UTS series transform your Universal Serial Bus (USB) port into asynchronous RS-232 serial ports for communication with serial devices. The UTS1009GC adapter is compatible with both USB 2.0 and 1.1 specifications and provides serial port with transfer speed up to 115.2Kbps. It provides a quick, simple and cost-effective way to bring the advantages of data accessibility and mobile solution for kinds of commercial and industrial automation applications.
Features
- Expands one independent RS-232 serial ports through USB interface.
- Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
- No IRQ, DMA, I/O address resource required.
- Supports USB 1.1 full speed 12Mbps and USB 2.0/3.0/3.1 compatible.
- Each serial port provides transmission rate up to 115.2Kbps.
- Built-in ± 15KV ESD protection for all serial signals.
- Compact Size and low power consumption.
- Supports both USB bus power mode without additional external power.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Mac and Linux.
Specifications
Serial Communication
| Interface | RS-232 |
| Controller | Prolific PL2303GC |
| BUS | Universal Serial Bus (USB) |
| No. of Port | 1-port |
| IRQ & IO | Assigned by System |
| FIFO | Receive 768 byte Buffer Hardware Transmit 256 byte Buffer Hardware |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
| Baud rate | 50~115.2Kbps |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV ESD IEC61000-4-2 Contact Discharge |
| PCB Connector | DB9 Male with Screw bolt |
Power
| Power Source | USB Bus Power +5VDC (±5%) |
| Standby Power Consumption | <100mA / 5VDC |
| Working Power Consumption | <150mA / 5VDC |
Driver Support
| Windows Client | 7 / 8.x / 10 (X86/X64) / 11 |
| Windows Server | 2008/ 2008R2 / 2012/ 2012R2/ 2016/ 2019 |
| Linux | Linux 2.4.3.1 and above |
| MAC | MAC OS 10.9/11 |
Standards and Certifications
| EMC | CE, FCC, VCCI, BSMI |
| Green | RoHS, WEEE,REACH |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 15 x 45 x 33 mm |
| Cable Length | 1200 mm (3.9ft) |
Download
Download Driver
| Driver | PL23XX_Prolific_DriverInstaller_v401 |  |
| Version | V4.0.1 | |
| Update | 2022-03-14 17:27:12 | |
| Size | 9.2MB | |
| OS |
Windows 10 32/64 bit
Windows 11
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Vista SP2 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows Server 2012 R2 64-bit
Windows Server 2008 R2 SP1 64bit
Windows Server 2008 64-bit
|
| Driver | PL2303HXD_G_Mac Driver_v2_1_0_20210311 | |
| Version | V2.1.0 | |
| Update | 2021-07-26 09:59:12 | |
| Size | 513.2KB | |
| OS |
OS X Mavericks 10.9
OS X Yosemite 10.10
OS X El Capitan 10.11
OS X Sierra 10.12
OS X High Sierra 10.13
OS X Mojave 10.14
OS X Catalina 10.15
OS X Big Sur 11
|
| Driver | PL2303G_Linux_Driver_v1.0.4 | |
| Version | V1.0.4 | |
| Update | 2020-08-07 09:40:27 | |
| Size | 339KB | |
| OS |
Linux 2.6 ~ 5.2
|
