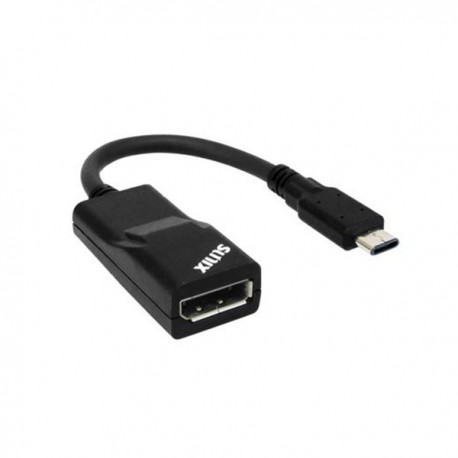

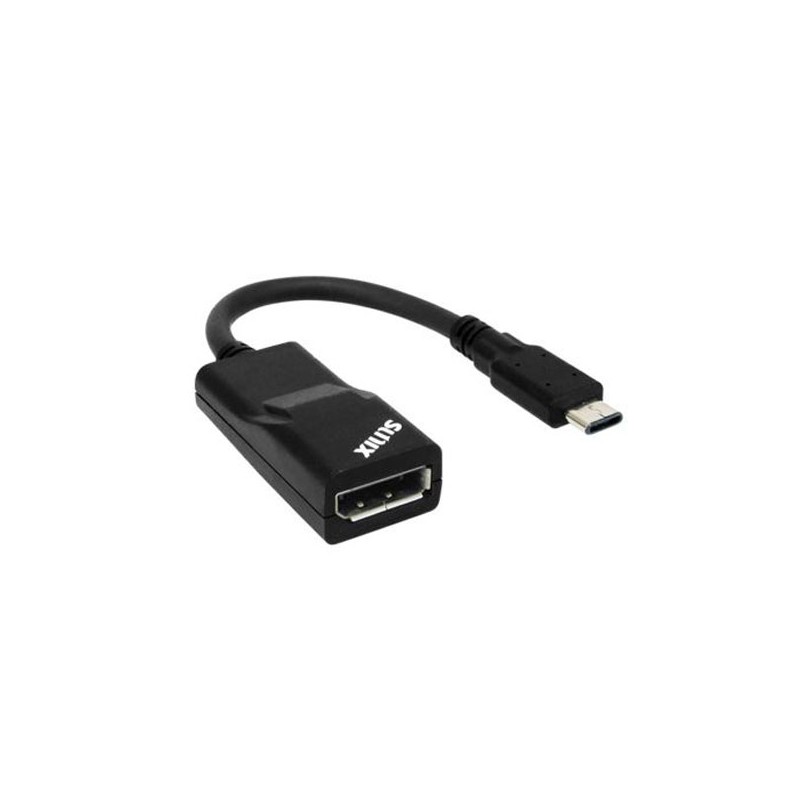

USB Type-C to DisplayPort Adapter
C2DC100
USB type-C แปลงเป็น DisplayPort รองรับความละเอียดสูงสุดถึง 4096x2160 ใช้ได้ทั้ง Windows, Mac และ Chrome book เสียบใช้งานได้ทันทีโดยไม่ต้องลง Driver
หมายเหตุ ช่อง USB-C ของ Laptop / PC ต้องรองรับ DP Alt mode จึงจะสามารถแสดงผลออกจอภาพได้ กรุณาตรวจสอบจากสัญลักษณ์ DP หรือ Thunderbolt ข้างพอร์ต USB-C หรือดูได้จากคู่มือของ Laptop นั้น ๆ
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX C2DC100, USB-C to video Adapter lets you connect your Apple MacBook, Google Chromebook, or Windows laptop with USB-C port to a DisplayPort display. This slim design adapter allows you to mirror/extend your display to your DisplayPort-enabled TV, display, projector or other compatible display in up to 1080p or UHD (3840x2160) at 60Hz.
This high-resolution adapter offers plug and play functionality to provide an active digital conversion without software or drivers. Simply attach SUNIX USB Type-C to DisplayPort Adapter to the USB Type-C connector on your laptop and then to your TV or projector via a DisplayPort cable. You can use an external display as your main workspace or to extend your desktop, or you can work in mirrored mode with a projector so you can view what your audience sees.
Features
- Adapts USB C-Type equipped laptops to work with DisplayPort-enabled displays.
- Integrated chip to provide an active digital conversion from USB-C Type port.
- Converts audio and video to any device display enabled with DisplayPort technology.
- Compliant with DisplayPort 1.2 spec with HDTV 4K (2160p) resolution and stereoscopic 3D.
- Compliant with VESA DisplayPort Alternate Mode for USB Type-C Standard Rev1.0.
- Easy plug and play allows seamless display of your laptop and tablet content to your display.
- Driver free under Apple MAC, Google Chromebook and Microsoft Windows operation systems.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, C-Tick, BSMI) and RoHS approval.
Note: To enable connecting an HDMI monitor, projector, or display, be sure to use “ACTIVE” DisplayPort to HDMI converter. SUNIX USB Type-C to DisplayPort Adapter does NOT output dual mode/multi-mode (DP++) signals.
Specifications
| Model | C2DC100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | USB Type-C toDisplayPort Adapter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Interface |
USB Type-C
USB Type-C Alternate Mode
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Interface |
DisplayPort Ver1.2
Standard DisplayPort Female
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power |
USB Bus Power
+5VDC @ 250mA
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display Resolution |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Digital Audio output over DisplayPort | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Housing | ABS(Plastic) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Driver Support | Driver free under Apple MAC, Google Chrome, and Microsoft Windows |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | Operation temp. 0 °C ～ 40 °C (32-140°F) Operation humidity: < 85% non-condensing Storage temp. -10 °C ～ 85 °C (14~176°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension | 46(L) x 22(W) x 13(H) mm USB-C Cable length 80mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 25(0.8oz) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Regulatory Approvals | EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3 US: FCC Part 15 Class B TAIWAN: BSMI: CNS13438 AS/NZS: C-Tick: CISPR22 JAPAN: VCCI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Green Environment | RoHS, CRoHS, WEEE |
Package Content
- C2DC100 - USB Type-C to DisplayPort Adapter
- Manual
Download Driver
| Driver | Driver Free |
| OS |
All System
|
