Aten VGA EDID Emulator
2A-130G
The 2A-130G VGA EDID Emulator สายเชื่อมต่อ KVM Extender
รับประกัน 3 ปีเต็ม

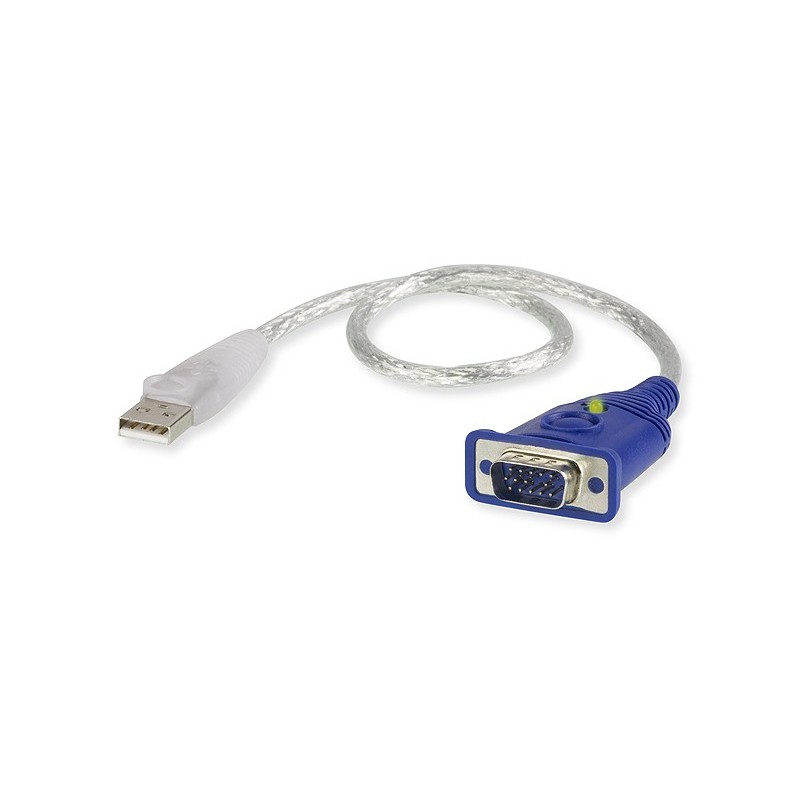

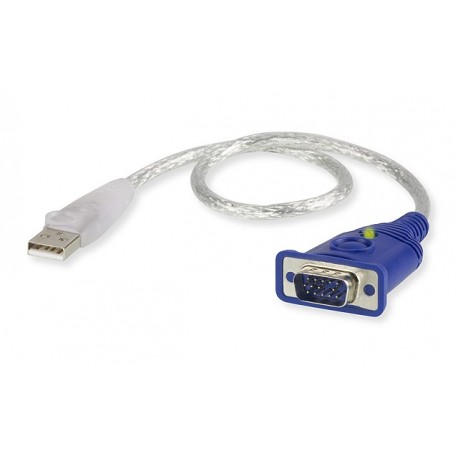

The 2A-130G VGA EDID Emulator is designed for ATEN KVM extender or video extender installations that do not utilize a local monitor at the site where the computer/video source is located. The 2A-130G emulates and stores a default ATEN EDID (Extended Display Identification Information) setting in a non-volatile memory. This means the computer/video source can still "see" the display, even though it is not directly connected.
The 2A-130G is suitable for any ATEN KVM or video extender installation where a monitor is not required at the local site, providing a simple, cost-saving, and convenient solution for display-related boot-up problems.
Features
- Subsitutes as a monitor at the site where the computer/video source is located
- EDID built-in - Stores ATEN standard EDID information in device
- ATEN standard EDID supports all popular resolutions
- Superior video quality - up to 1920x1200@60Hz
- USB Powered - No need for an external power adapter
- No software required - Eliminates incompatibility and installation issues; no need to confi gure
- Compatible Extenders: CE700A, CE750, CE770, CE800B, CE350, CE370, VE150, VE200
Package Content
- 1x 2A-130G VGA EDID Emulator

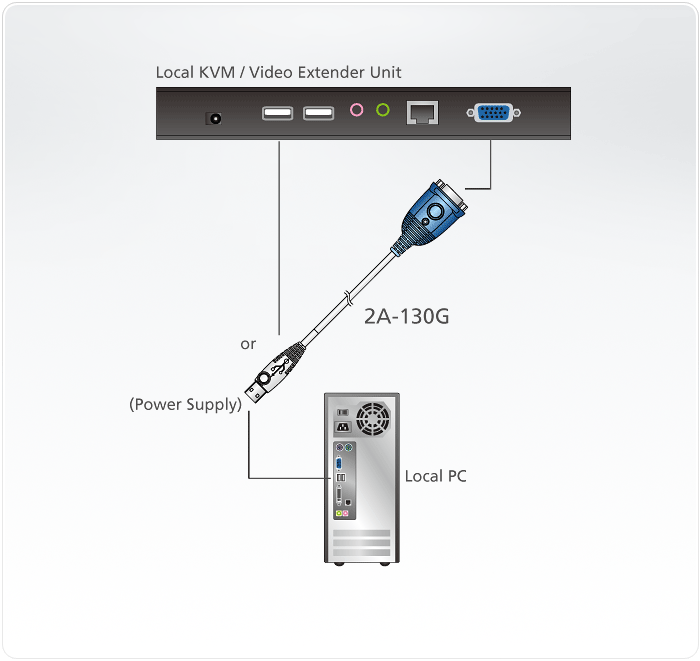

Diagram
Specification
| Connectors | Video | 1 x HDB-15 Male (Blue) | |
| Power | 1 x USB Type A Male | ||
| LEDs | Power | 1 (Green) | |
| Video | 1920 x 1200@60Hz | ||
| Cable Length | 0.35 m | ||
| Power Consumption | DC5V, 0.06W | ||
| Environment | Operating Temp. | 0-50°C | |
| Storage Temp. | -20-60°C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties |
Housing | Plastic | |
| Weight | 42 g | ||
| Dimensions ( L x W x H ) |
6.59 x 3.40 x 1.60 cm | ||
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
