VGA Booster

รุ่น VB100

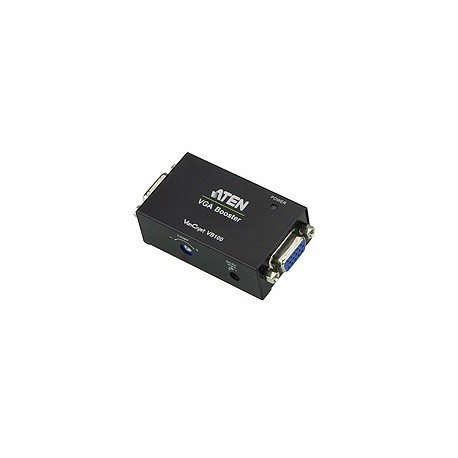

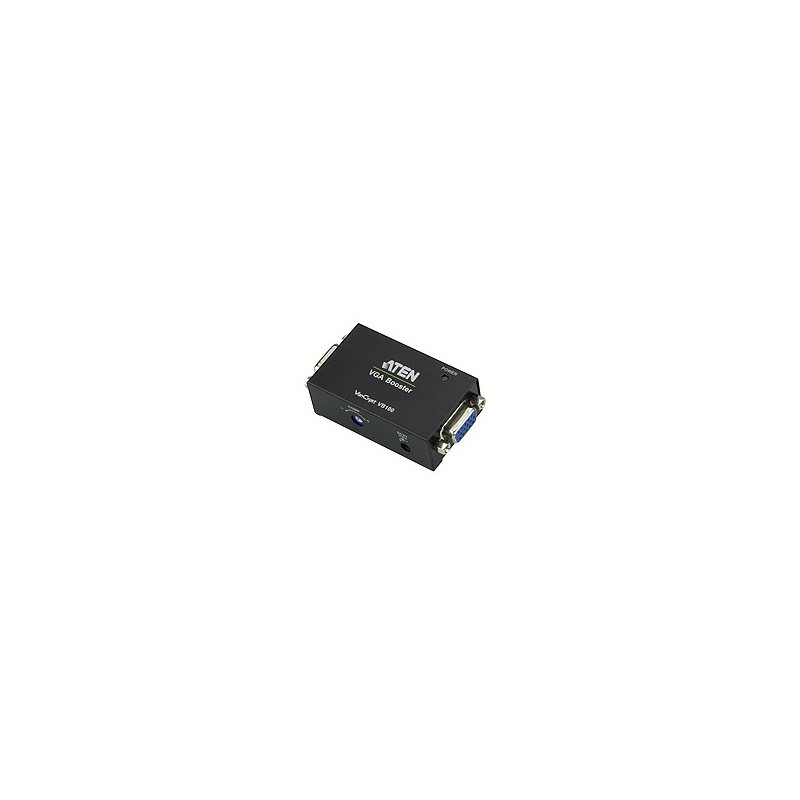

The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม

ส่งให้เพื่อน

ส่งให้เพื่อน

VGA Booster

The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Spec Sheet

The VB100 VGA Booster amplifies the VGA signal from a sourcedevice and transmits it to a display up to 70 meters away.The VGA booster extends the display distance without anysignal loss; to bring you a crystal clear video display at a longerdistance. The VB100 is built with a compact housing designfor easy installation and manual gain control to improve imagequality at different distances. The VB100 can be powered fromthe VGA source and has a built-in LED indicator for power.The VB100 supports hotplugging and requires no software forinstallation, making it an easy, compact, and affordable solutionto extend your VGA display.

Features

Long distance transmission – up to 70 m
Adjustable video compensation - manually adjust signal strength to compensate for distance
Superior video quality – up to 1920x1200 (30 m); 1280x1024 (70 m)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
Supports wide screen formats
Supports hot-plugging
Compact housing
LED indication of power status and source device
Plug-and-play – no software installation required

Diagram

* If the source device cannot power the VB100 please use the power adapter included with this package.
Note: The length of each of the two VGA cables can vary, but the maximum distance of the two VGA cables combined can not exceed 70 meters

Specifications

Function		VB100

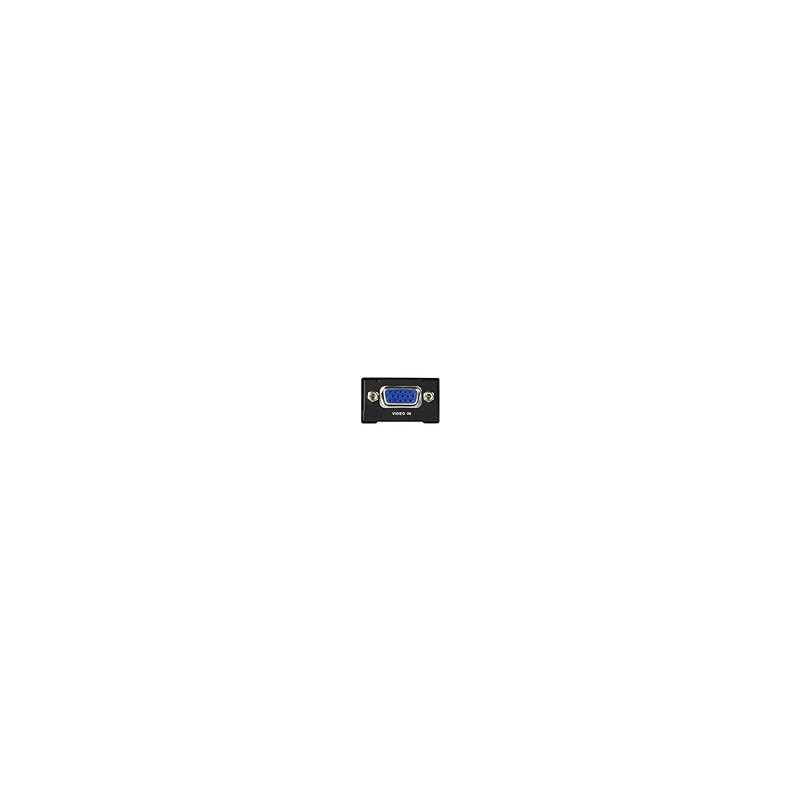

Connectors	Video In	1 x HDB-15 Female (Blue)

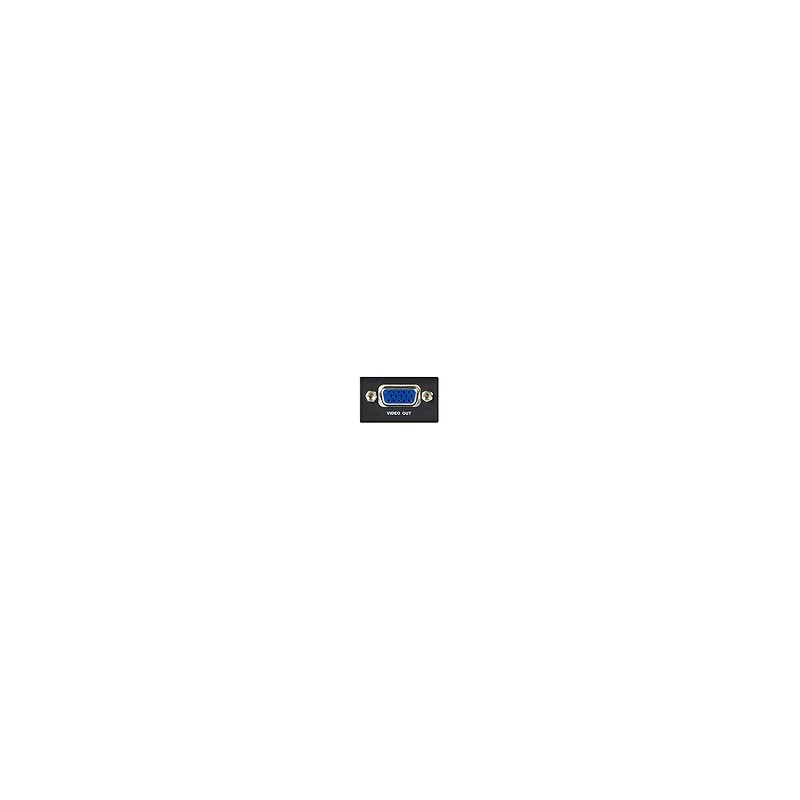

	Video Out	1 x HDB-15 Female (Blue)
	Power Jack	1 x DC Jack

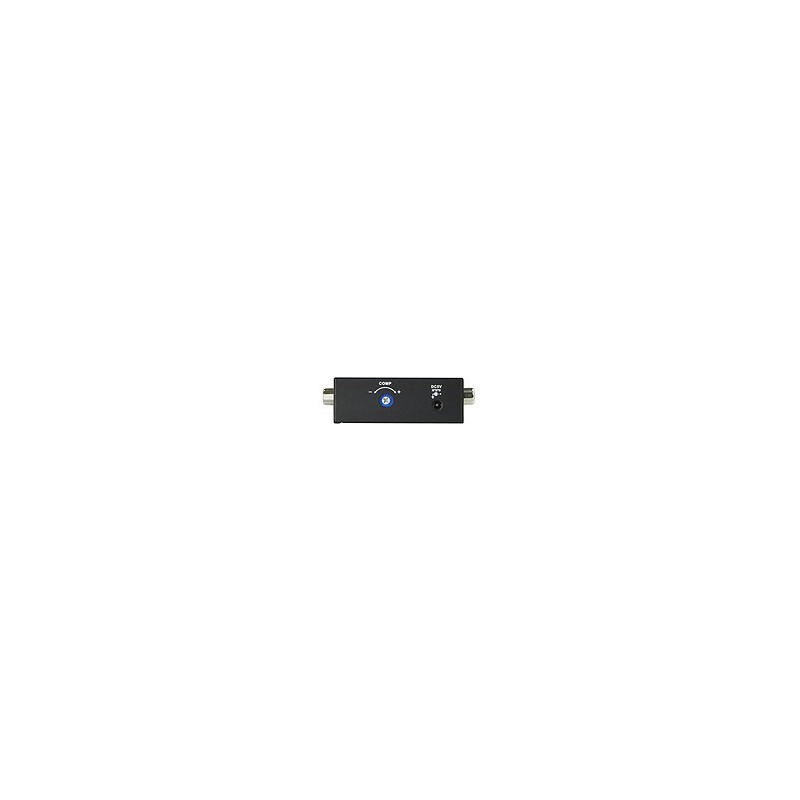

Switches	Manual Gain Control	1 x Knob
LED	Power	1 (Green)
Video	Signal Range	1920x1200@60Hz at 30m, 1280x1024@60Hz at 70m
Power Consumption		DC 5V; 0.9W
Environment	Operating Temp.	0–50ºC
	Storage Temp	-20–60ºC
	Humidity	0–80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	56 g
	Dimensions (L x W x H)	6.88 x 3.53 x 2.06 cm
