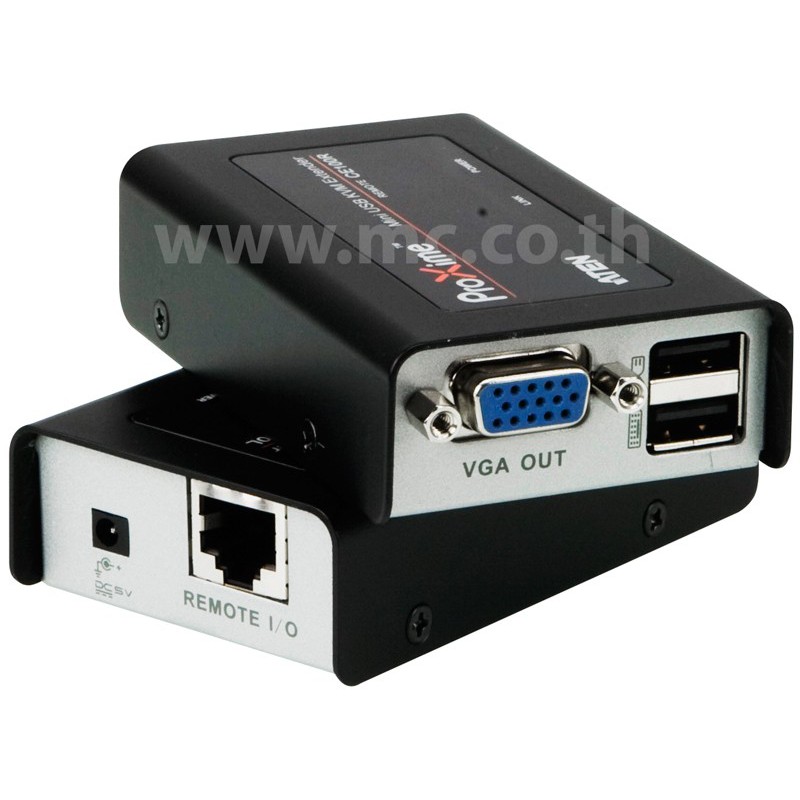

MINI USB KVM Extender
CE100
The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
รับประกัน 3 ปีเต็ม
คุณสมบัติ ผังการต่อ ข้อมูลจำเพาะ อุปกรณ์ในกล่อง
The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.
คุณสมบัติ
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
ผังการต่อ
ข้อมูลจำเพาะ

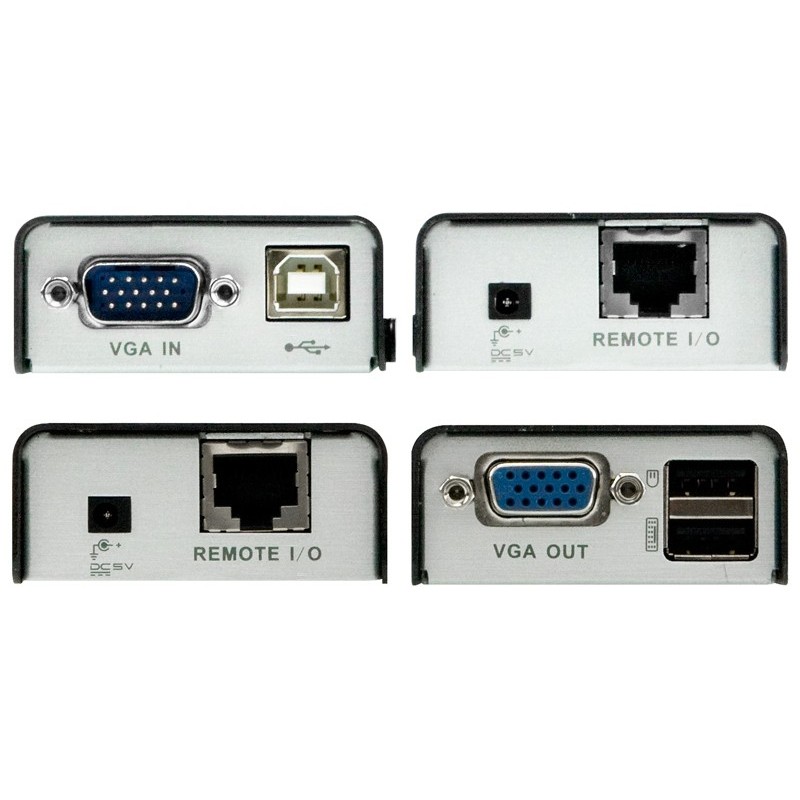

| Function | CE100L | CE100R | ||
| Connectors | Console Ports |
Keyboard | N/A | 1 x USB Type A Female (White) |
| Video | N/A | 1 x HDB-15 Female (Blue) |
||
| Mouse | N/A | 1 x USB Type A Female (White) | ||
| KVM Ports |
Keyboard / Mouse |
1 x USB Type B Female (White) | N/A | |
| Video | 1 x HDB-15 Male (Blue) |
N/A | ||
| Power | 1 x DC Jack | |||
| Unit to Unit | 1 x RJ-45 Female (Black) | |||
| Switch | N/A | 1 x Knob | ||
| LEDs | Link | 1 (Blue) | ||
| Power | 1 (Green) | |||
| Video | 1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m) |
|||
| Power Consumption | DC5V, 0.5W | DC5V, 1.25W | ||
| Environment | Operating Temp. | 0–50°C | ||
| Storage Temp. | -20–60°C | |||
| Humidity | 0–80% RH, Non-condensing | |||
| Physical Properties | Housing | Metal | ||
| Weight | 0.16 kg | |||
| Dimensions (L x W x H) |
9.00 x 5.50 x 2.40 cm | |||
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
อุปกรณ์ในกล่อง
- 1x CE100L Mini USB KVM Extender (Local Unit)
- 1x CE100R Mini USB KVM Extender (Remote Unit)
- 1x USB/VGA Cable
- 2x Grounding Wires
- 1x Power Adapter (for Remote Unit)
- 1x Mounting Kit
- 1x User Guide
