Aten PS/2 KVM Extender
CE350

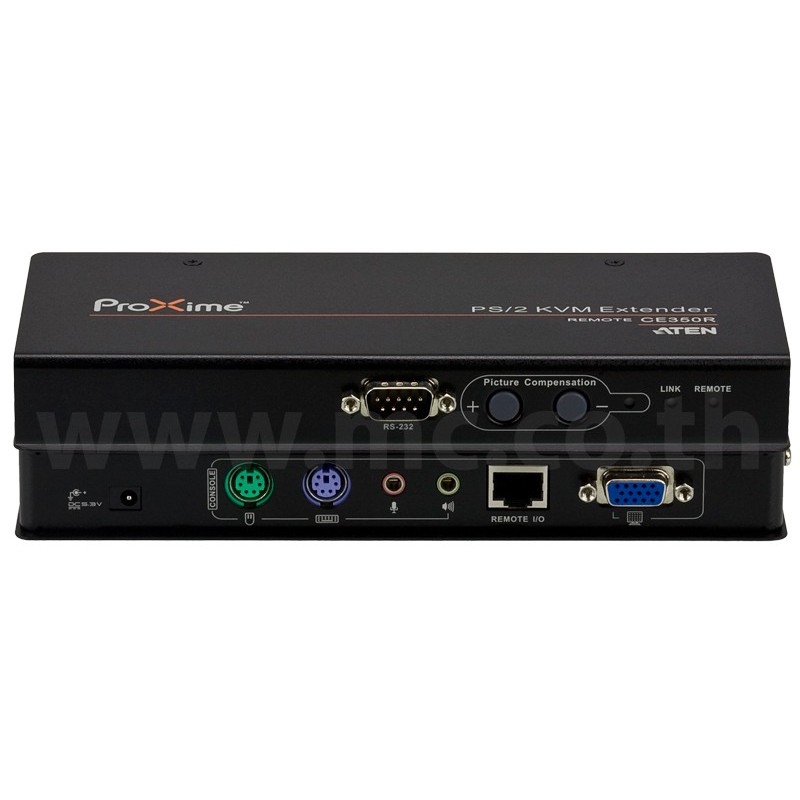

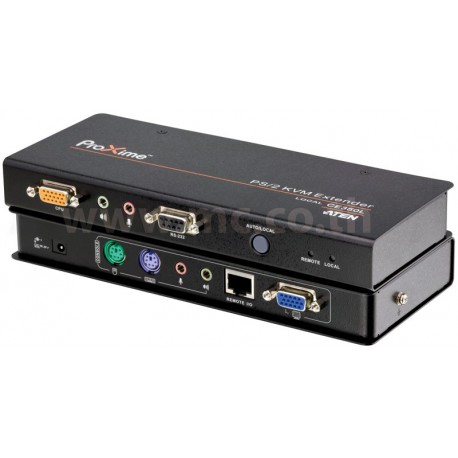

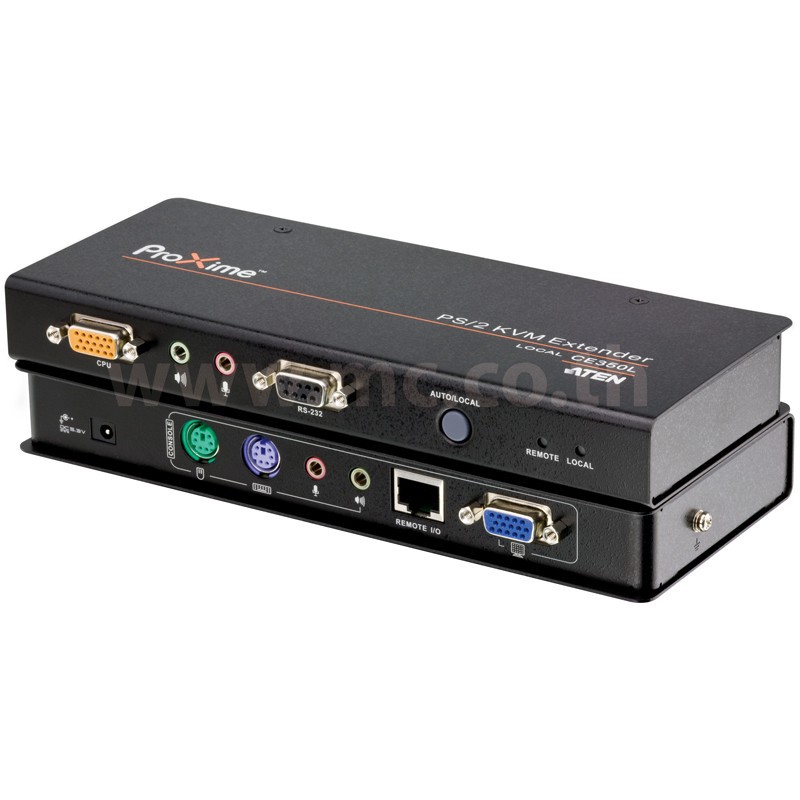

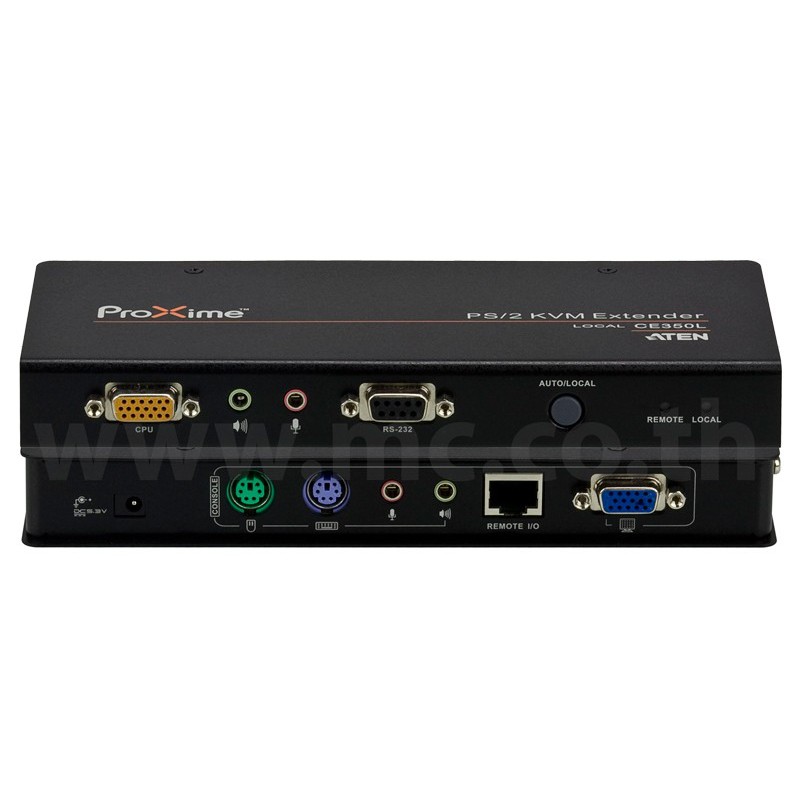

The CE350 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console
รับประกัน 3 ปีเต็ม
คุณสมบัติ ผังการต่อ ข้อมูลจำเพาะ อุปกรณ์ในกล่อง
The CE350 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE350 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
คุณสมบัติ
- Local and Remote Units connect at distances up to 150 m using Cat 5e cable
- Adjustable gain control - manually adjust signal strength to compensate for distance
- Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC) and storage of settings
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Superior video quality - 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m)
- Superior Audio - no loss in audio quality at 150 m
- Supports Wide Screen formats
- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
- Hot pluggable
- Rack mountable
- Easy to install - no software required - connecting cables to the devices is all it takes
:: กลับขึ้นข้างบน ::
ผังการต่อ
:: กลับขึ้นข้างบน ::
ข้อมูลจำเพาะ
| Function | CE350L | CE350R | ||
| Connectors | Console Ports |
Keyboard | 1 x 6-pin Mini-DIN Female (Purple) | |
| Video | 1 x HDB-15 Female (Blue) | |||
| Mouse | 1 x 6-pin Mini-DIN Female (Green) | |||
| Speaker | 1 x Mini Stereo Jack Female (Green) | |||
| Mic. | 1 x Mini Stereo Jack Female (Pink) | |||
| KVM Ports |
KB / Video / Mouse |
1 x SPHD-17 Female (Yellow) | N/A | |
| Speakers | 1 x Mini Stereo Jack (Green) | |||
| Mic. | 1 x Mini Stereo Jack (Pink) | |||
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) | ||
| Unit to Unit | 1 x RJ-45 Female (Black) | |||
| Power | 1 x DC Jack | |||
| LEDs | Local | 1 (Green) | N/A | |
| Remote | 1 (Green) | 1 (Red) | ||
| Link | N/A | 1 (Orange) | ||
| Picture Compensation | N/A | 1 (Blue) | ||
| Pushbuttons | Operating Mode Selection |
1 x Pushbutton | N/A | |
| Compensation / Up | N/A | 1 x Pushbutton | ||
| Compensation / Down | N/A | 1 x Pushbutton | ||
| Emulation | Keyboard / Mouse | PS/2 | ||
| Video | 1920 x 1200 @ 60Hz (30 m); 1600 x 1200 @ 60Hz (150 m ); DDC, DDC2, DDC2B |
|||
| Power Consumption | DC5.3V/3.38W | DC5.3V/4.77W | ||
| Environment | Operating Temp. | 0 - 50°C | ||
| Storage Temp. | -20 - 60°C | |||
| Humidity | 0-80% RH, Non-condensing | |||
| Physical Properties | Housing | Metal | ||
| Weight | 0.49 kg | 0.48 kg | ||
| Dimensions (L x W x H) |
20.00 x 8.00 x 2.50 cm | |||
* The specification and pictures are subject to change without notice.
*All trademarks and logos are the properties of their respective holders.
:: กลับขึ้นข้างบน ::
อุปกรณ์ในกล่อง
- 1x CE350L PS/2 KVM Extender (Local Unit)
- 1x CE350R PS/2 KVM Extender (Remote Unit)
- 1x Custom PS/2 KVM Cable Set (1.8 m)
- 2x Power Adapters
- 1x Rack Mount Kit
- 2x Grounding Wires
- 1x User Manual
- 1x Quick Start Guide
