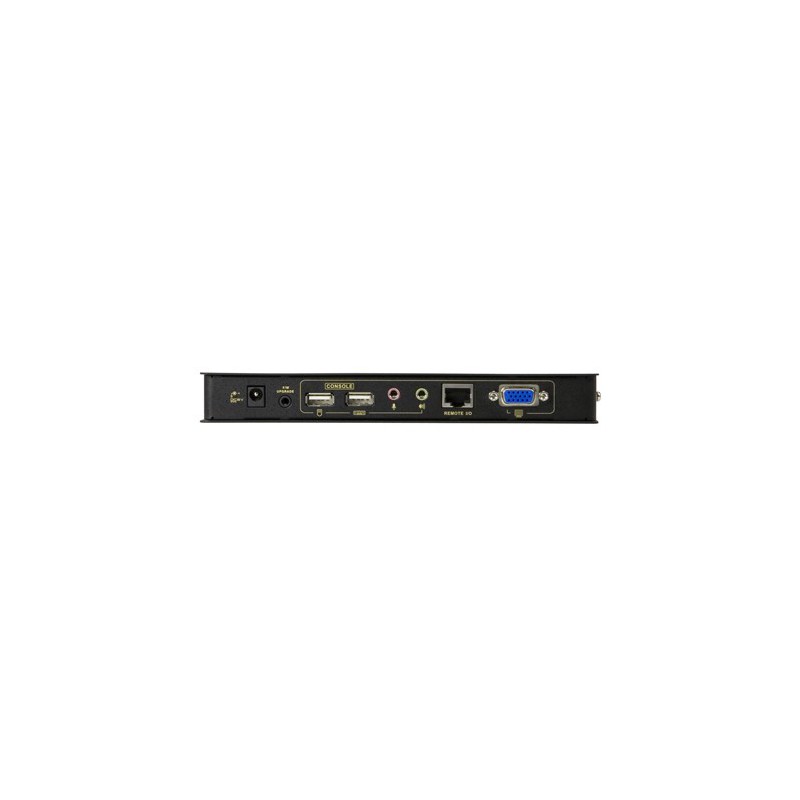

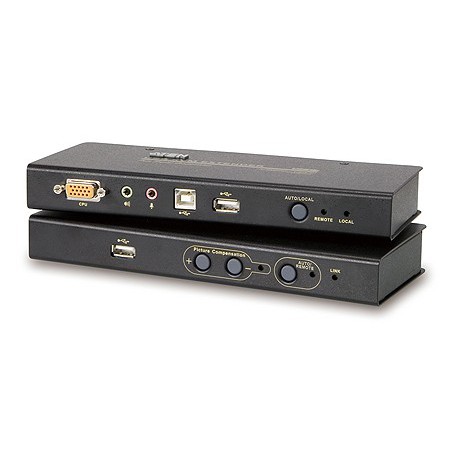

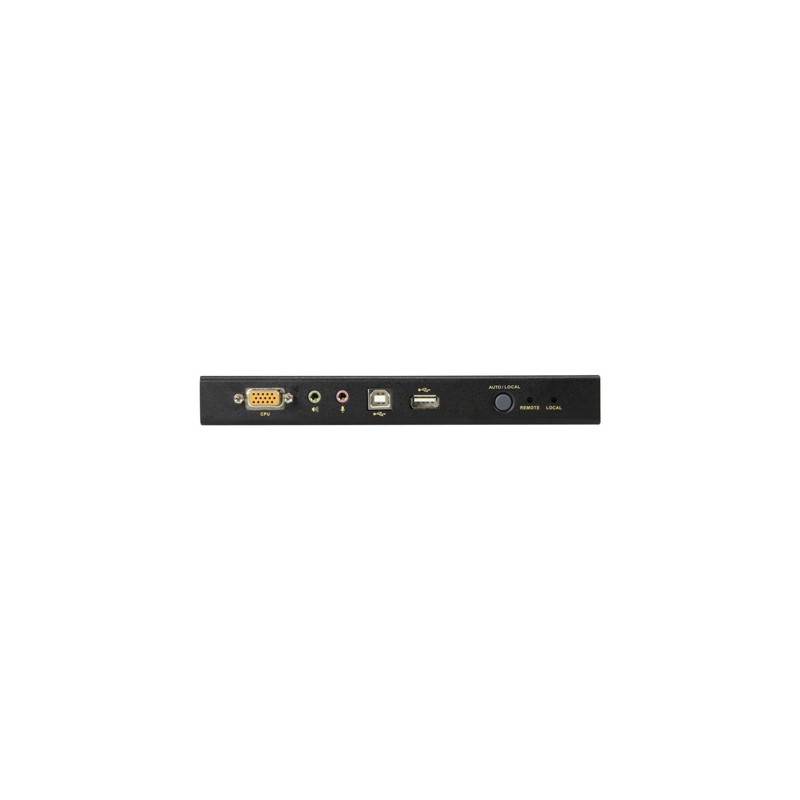

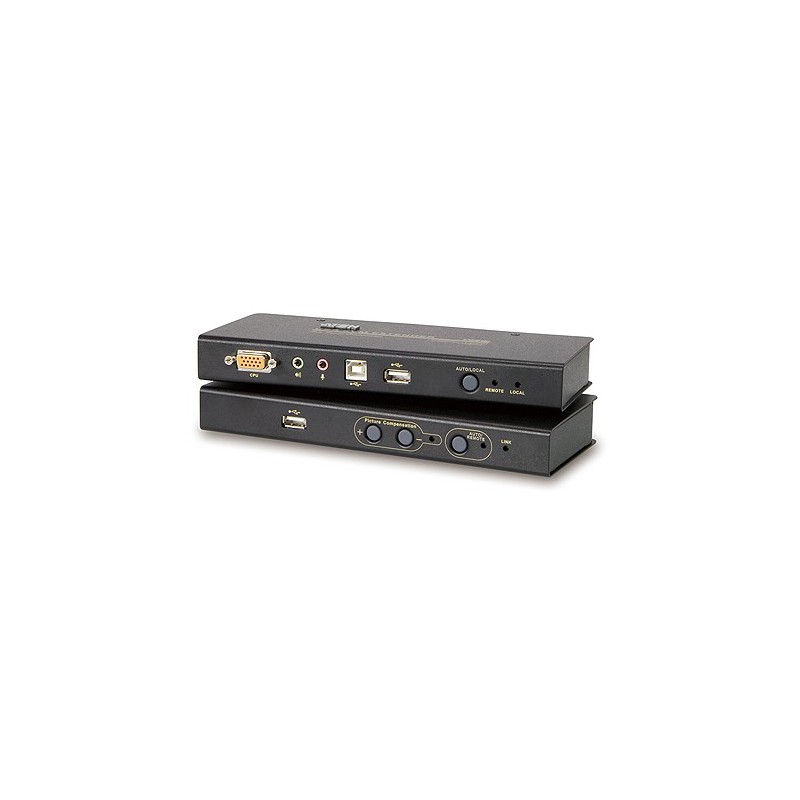

Aten USB console extender
CE800B
USB KVM Extenders เชื่อมต่อขยายสัญญาณภาพและเสียงจากคอมพิวเตอร์ระยะไกล 250เมตร VGA (RGB D-sub), stereo audio,USB keyboard/mouse + USB Hub
รับประกัน 3 ปีเต็ม
The CE800B USB KVM Extender เป็นอุปกรณ์เชื่อมต่อระหว่างคอมพิวเตอร์/server กับ หน้าจอควบคุมได้จากระยะไกลถึง 250ม. เหมาะสำหรับติดตั้งในศูนย์บริการ เช่น จุดสืบค้นข้อมูล
คุณสมบัติ
- Cat 5e cable to connect the Local and Remote Units - up to 250 m (825 ft) apart
- Dual console operation - control your system(s) from both the local and remote consoles
- Pushbutton selection of the active console
- Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing
- Special security feature requires login when mounting an external USB storage device on the remote unit
- Supports VGA, SVGA, and multisync monitors ?local monitor supports DDC; DDC2; DDC2B
- High resolution video - up to 1600 x 1200 @ 60 Hz
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Adjustable gain control - manually adjusts signal strength to compensate for distance
- Supports stereo speakers and stereo microphone
- Supports Microsoft Intellimouse and the scrolling wheel on most mice
- Upgradable firmware
- Built-in ASIC for greater reliability and compatibility

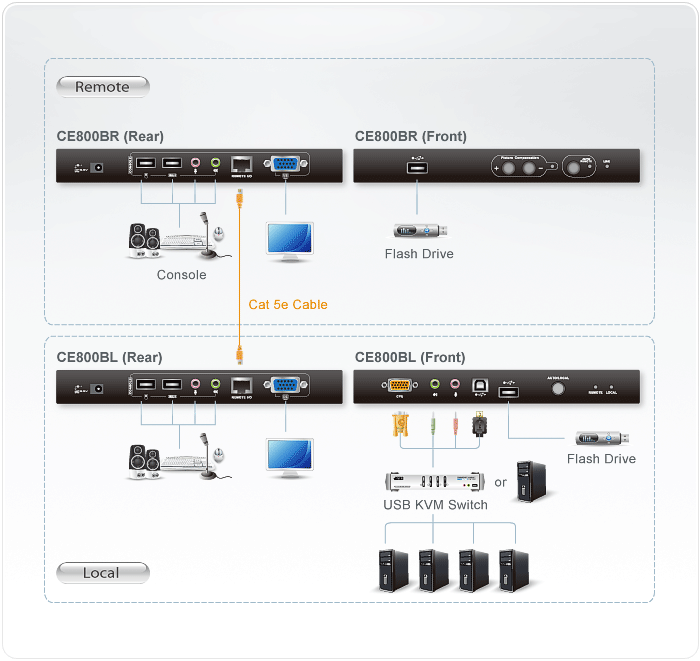

ผังการต่อ
ข้อมูลจำเพาะ
| Function |
CE800BL
|
CE800BR
|
||
| Computer Connections | 1 | N/A | ||
| Connectors | Console | Keyboard | 1 x USB Type A Female (White) | |
| Video | 1 x HDB-15 Female (Blue) | |||
| Mouse | 1 x USB Type A Female (White) | |||
| Speakers | 1 x Mini Stereo Jack (Green) | |||
| Microphone | 1 x Mini Stereo Jack (Pink) | |||
| KVM Ports | Keyboard/ Video / Mouse | 1 x SPHD-15 Female (Yellow) | N/A | |
| USB Port |
1 x USB Type B (Female) |
1 x USB Type A (Female) | ||
| Speakers | 1 x Mini Stereo Jack (Green) | N/A | ||
| Microphone | 1 x Mini Stereo Jack (Pink) | N/A | ||
| F/W Upgrade | 1 x 4-conductor 3.5 mm Jack | N/A | ||
| Power | 1 x DC Jack | |||
| Unit to Unit (Link) | 1 x RJ-45 | |||
| Switches | Operating Mode Selection | 1 x Pushbutton | ||
| Picture Compensation |
N/A | 2 x Pushbutton | ||
| LEDs | Local | 1 (Green) | N/A | |
| Remote | 1 (Green) | 1 (Green) | ||
| Link | N/A | 1 (Green) | ||
| Compensation | N/A | 1 (Orange) | ||
| Video | 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1024x768@60Hz at 250m | |||
| Power Consumption | DC5V, 6W | |||
| Environment | Operating Temp. | 0-50˚C | ||
| Storage Temp. | -20-60˚C | |||
| Humidity | 0-80% RH, Non-condensing | |||
| Physical Properties | Housing | Metal | ||
| Weight | 0.50 kg | 0.49 kg | ||
| Dimensions (L x W x H) | 20.00 x 8.00 x 2.50 cm | |||
อุปกรณ์ในกล่อง
- 1x CE800BL USB KVM Extender (Local Unit)
- 1x CE800BR USB KVM Extender (Remote Unit)
- 1x Custom KVM Cable (1.8 m)
- 2x Power Adapters
- 1x Firmware Upgrade Cable
- 1x USB Cable (1.8 m)
- 2x Grounding Wires
- 1x Rack Mount Kit
- 1x User Manual
- 1x Quick Start Guide
- 1x Grounding Information Card
ขอบพระคุณทุกความไว้วางใจ
