PS/2 KVM Extender
CE370
CE370 อุปกรณ์ขยายสัญญาณ VGA,คีย์บอร์ด,เม้าส์ แบบ PS/2 ให้ไกลถึง 300 ม. ผ่านสาย CAT5e/6 ควบคุมได้ทั้งต้นทางและปลายทาง มี RS-232 รองรับจอ Touchscreen / Barcode Scanner มีช่องต่อเสียงและไมค์
รับประกัน 3 ปีเต็ม
Spec Sheet
คุณสมบัติ ผังการต่อ ข้อมูลจำเพาะ อุปกรณ์ในกล่อง ผู้ใช้อ้างอิง

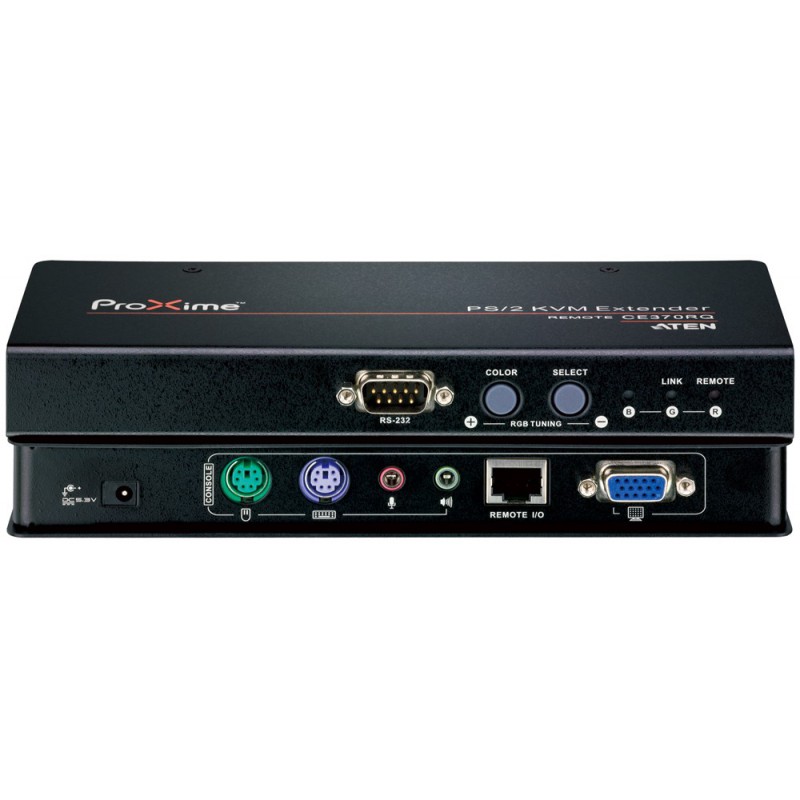

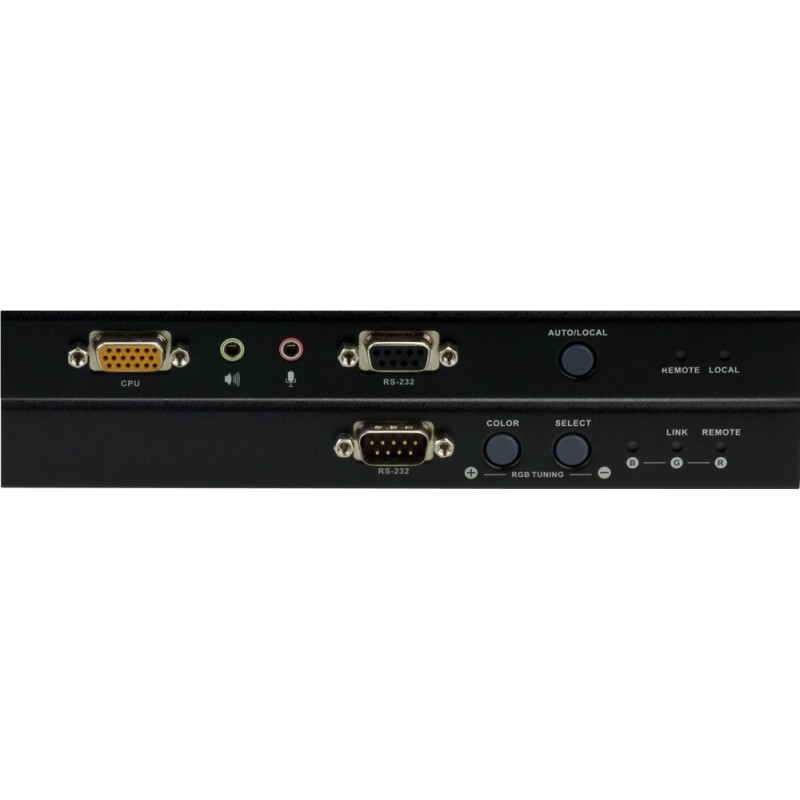

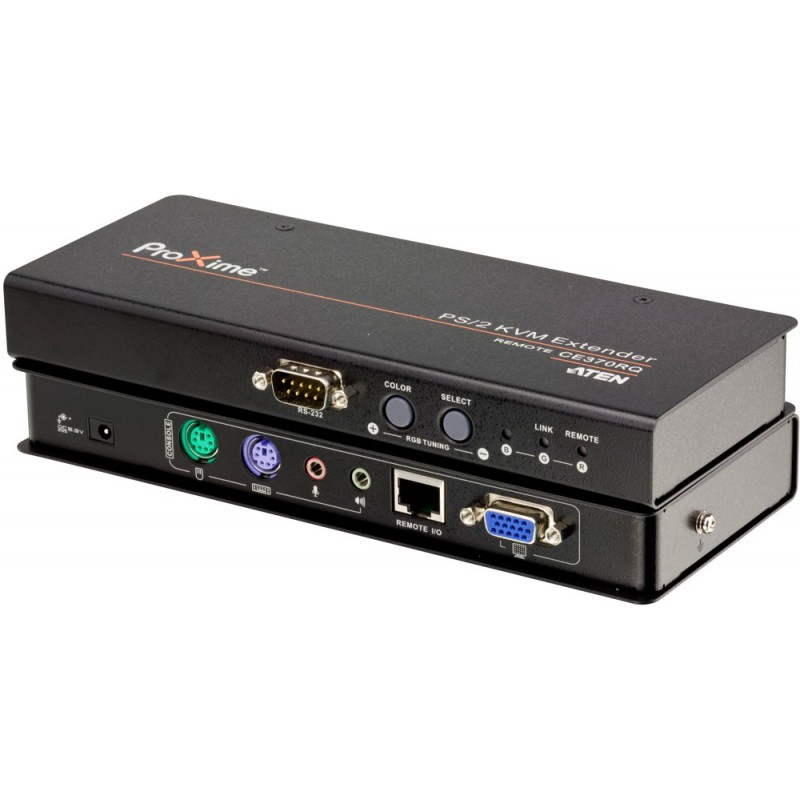

The CE370 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE370 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
คุณสมบัติ
- Local and Remote Units connect at distances up to 300 m using Cat 5e cable
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
- Manually tune the R/G/B settings, store and retrieve
- Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
- Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC) and storage of settings
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Superior video quality - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)
- Superior Audio - no loss in audio quality at 300 m
- Supports Wide Screen formats
- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
- Hot pluggable
- Rack mountable
- Easy to install - no software required - connecting cables to the devices is all it takes
ผังการต่อ
ข้อมูลจำเพาะ
| Function | CE370L | CE370RQ | ||
| Connectors | Console Ports |
Keyboard | 1 x 6-pin Mini-DIN Female (Purple) | |
| Video | 1 x HDB-15 Female (Blue) | |||
| Mouse | 1 x 6-pin Mini-DIN Female (Green) | |||
| Speaker | 1 x Mini Stereo Jack Female (Green) | |||
| Mic. | 1 x Mini Stereo Jack Female (Pink) | |||
| KVM Ports |
KB / Video / Mouse |
1 x SPHD-17 Female (Yellow) | N/A | |
| Speakers | 1 x Mini Stereo Jack (Green) | |||
| Mic. | 1 x Mini Stereo Jack (Pink) | |||
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) | ||
| Unit to Unit | 1 x RJ-45 Female (Black) | |||
| Power | 1 x DC Jack | |||
| LEDs | Local | 1 (Green) | N/A | |
| Remote | 1 (Green) | N/A | ||
| B | N/A | 1 (Blue) | ||
| G | Link | N/A | 1 (Orange/Green) | |
| R | Remote | N/A | 1 (Red) | |
| Pushbuttons | Operating Mode Selection |
1 x Pushbutton | N/A | |
| Color | N/A | 1 x Pushbutton | ||
| Select | N/A | 1 x Pushbutton | ||
| Emulation | Keyboard / Mouse | PS/2 | ||
| Video | 1920 x 1200 @ 60Hz (150 m); 1280 x 1024 @ 60Hz (300 m); DDC, DDC2, DDC2B |
|||
| Power Consumption | DC5.3V/3.38W | DC5.3V/6.43W | ||
| Environment | Operating Temp. | 0 - 50°C | ||
| Storage Temp. | -20 - 60°C | |||
| Humidity | 0-80% RH, Non-condensing | |||
| Physical Properties | Housing | Metal | ||
| Weight | 0.49 kg | 0.48 kg | ||
| Dimensions (L x W x H) |
20.00 x 8.00 x 2.50 cm | |||
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
อุปกรณ์ในกล่อง
- 1x CE370L PS/2 KVM Extender (Local Unit)
- 1x CE370RQ PS/2 KVM Extender (Remote Unit)
- 1x Custom PS/2 KVM Cable Set (1.8 m)
- 2x Power Adapters
- 1x Rack Mount Kit
- 2x Grounding Wires
- 1x User Manual
- 1x Quick Start Guide
