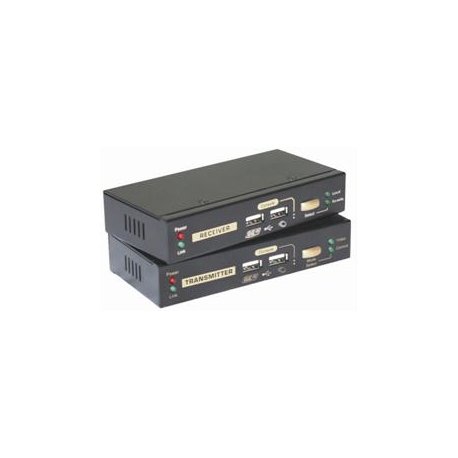

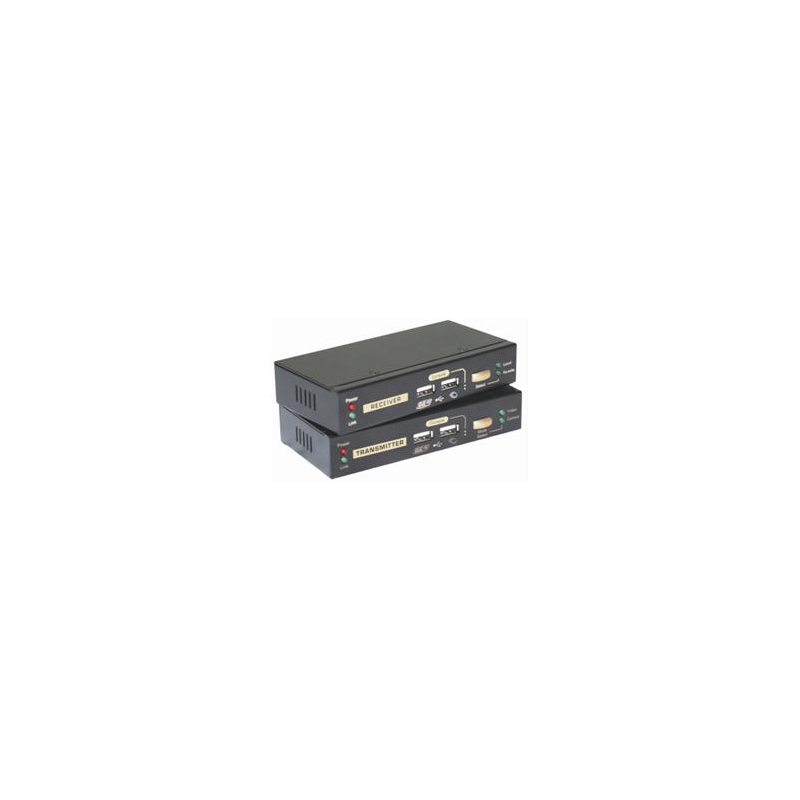

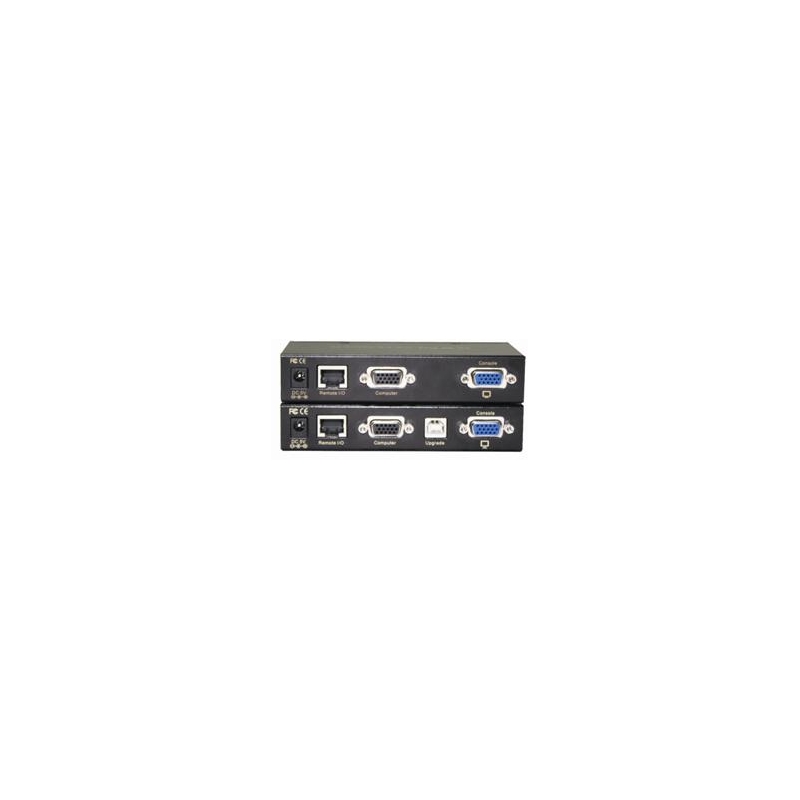

CAT5 USB KVM Extender w/ Skew Adjust
KE513
KE513 applies new KVM extender technology that maximize console's control span up to 300M/1000ft away via CATx cable, including keyboard, monitor, and mouse.
KE513 applies new KVM extender technology that maximize console's control span up to 300M/1000ft away via CATx cable, including keyboard, monitor, and mouse. Suitable for use in an exhibition room, working floors, security room, locked server room, or other mission-critical scenarios, this CAT5 KVM extender set allows easy-access for administrator to locate local console from the remote concole, or vice versa without security or distance limitations. KE513 is firmware upgradable via USB interface, thus can be serviced easily with latest functionality or compatibility enhancement.
Feature
- CAT5 USB KVM Extender
- 300 M / 1000 ft CAT5 extension distance
- Local / Remote computer selection in Receiver console
- DDC / EDID support mode selection for Local / Remote monitor
- Analog video resolution support up to 1920 x 1200
Specifications
| Model No. | KE513 |
| Product Description | CAT5 USB KVM Extender w/ Skew Adjust |
| Number of Console | 2 (1 Local + 1 Remote) |
| Maximum PC Connections | 2 (1 Local + 1 Remote) |
| Console Keyboard Connector | (TX) USB Type A Female (RX) USB Type A Female |
| Console Mouse Connector | (TX) USB Type A Female (RX) USB Type A Female |
| Console Video Connector | (TX) HDB15 Female (RX) HDB15 Female |
| PC Keyboard Connector | (TX) HDB15 Female (RX) HDB15 Female |
| PC Mouse Connector | (TX) HDB15 Female (RX) HDB15 Female |
| PC Video Connector | (TX) HDB15 Female (RX) HDB15 Female |
| PC selection | Push Button / Hotkey |
| PC port LED | 6 Green (3 on each unit) |
| Power LED | 2 Red (1 on each unit) |
| Analog Display Resolution | 1920 x 1200 |
| Keyboard & Mouse Emulation | Yes |
| DDC Emulation | Yes |
| OSD Menu | Yes |
| Keyboard Hotkey | Yes |
| Firmware Upgrade | Yes |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | - 20 ~ 60 °C |
| Humidity | 0 ~ 90 % RH, Non-Condensing |
| Power Adapter | DC 5 V |
| Weight | 610 g |
| Housing | Metal |
| Dimension(L×W×H) | 131 x 65 x 26 (mm) |
| Safety / Emission | FCC, CE |
