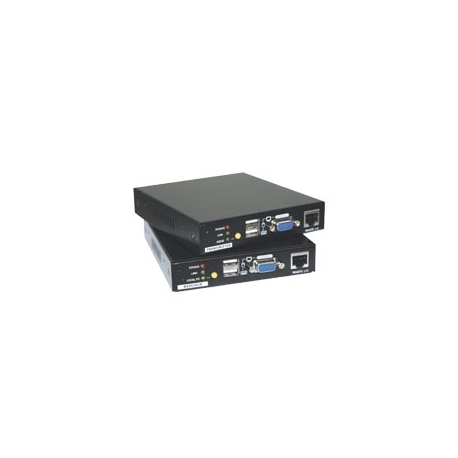

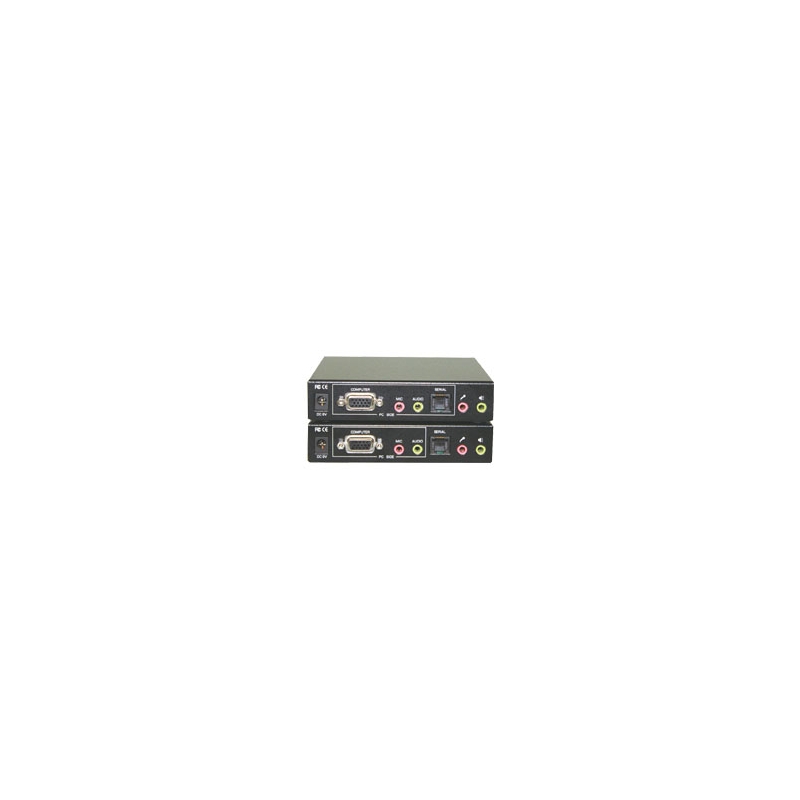

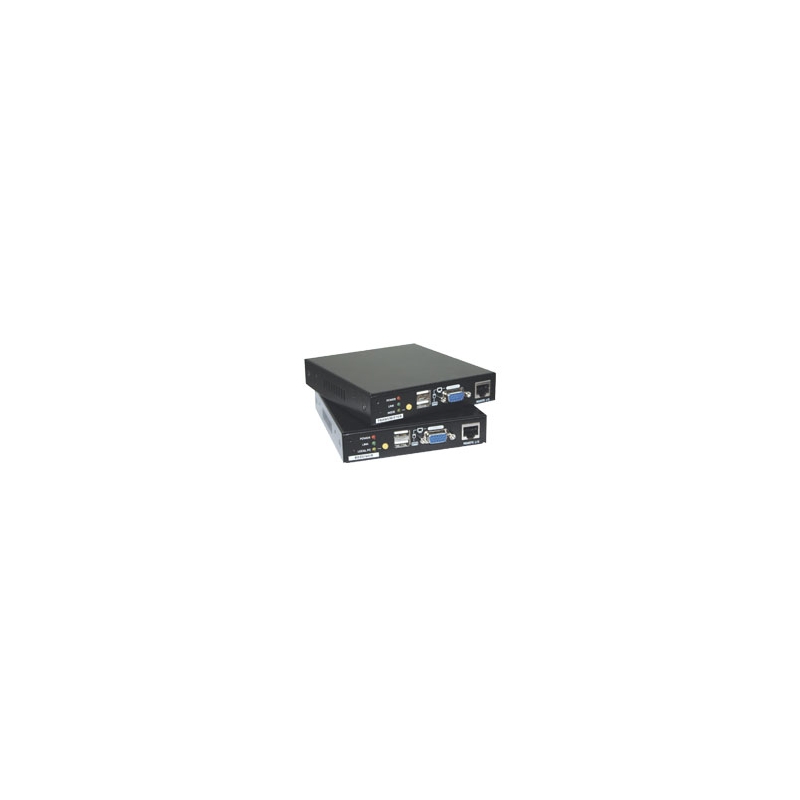

CAT5 KVM Extender Switch w/ Local Console, Audio, Mic, & RS-232
KE513A
KE513A applies new KVM extender technology that maximize console's control span up to 300M/1000ft away via CATx cable, including keyboard, monitor, mouse, even serial port, audio speaker, microphone as well.
KE513A applies new KVM extender technology that maximize console's control span up to 300M/1000ft away via CATx cable, including keyboard, monitor, mouse, even serial port, audio speaker, microphone as well. Suitable for use in an exhibition room, working floors, security room, locked server room, or other mission-critical scenarios, this CAT5 KVM extender set allows easy-access for administrator to locate local console from the remote concole, or vice versa without security or distance limitations. KE513A is firmware upgradable through a HDB connector and thus can be serviced easily with latest functionality or compatibility enhancement.
Features
- 300M/1000ft CAT5 extension distance
- Audio , Mic, and RS-232 signal extwnsion support
- Local / Remote computer selection in Receiver console
- DDC / EDID support mode selection for Local / Remote Monitor
- Analog video resolution support up to 1920 x 1200
Specification
| Model No. | KE513A |
| Product Description | CAT5 KVM Extender Switch w/ Local Console, Audio, Mic, & RS-232 |
| Number of Console | 2 |
| Maximum PC Connections | 2 (1 Local + 1 Remote) |
| Console Keyboard Connector | (TX) USB Type A Female (RX) USB Type A Female |
| Console Mouse Connector | (TX) USB Type A Female (RX) USB Type A Female |
| Console Video Connector | (TX) VGA HDB15 Female (RX) VGA HDB15 Female |
| Console Audio/Mic Connector | (TX) 2 x 3.5mm Audio / Mic Jack Female (RX) 2 x 3.5mm Audio / Mic Jack Female |
| PC Keyboard Connector | (TX) Via Video Connector (RX) Via Video Connector |
| PC Mouse Connector | (TX) Via Video Connector (RX) Via Video Connector |
| PC Video Connector | (TX) VGA HDB15 Female (RX) VGA HDB15 Female |
| PC Audio/Mic Connector | (TX) 2 x 3.5mm Audio / Mic Jack Female (RX) 2 x 3.5mm Audio / Mic Jack Female |
| Serial Port | (TX) RJ12 Female for RS-232 (RX) RJ12 Female for RS-232 |
| DDC / EDID emulation | Yes |
| TX Connectors | RJ45 Female |
| RX Connectors | RJ45 Female |
| RS-232 serial extension | Yes |
| Audio& Mic Extension | Yes (Stereo) |
| Cable media | CAT5 |
| Video Adjustment | Yes |
| PC selection | Push Buttons/ Hotkeys / OSD |
| Power LED | 1 Red on each model |
| LED Status | 1 Green & 1 Amber on each model |
| Analog Display Resolution | 1920 x 1200 |
| Keyboard & Mouse Emulation | Yes (USB and PS/2) |
| DDC Emulation | Yes |
| OSD Menu | Yes |
| Keyboard Hotkey | Yes |
| Firmware Upgrade | Yes |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity | 0 ~ 90 % RH, Non-Condensing |
| Power type | 2.1mm Power Jack |
| Power Adapter | DC 9V |
| Weight | 980g |
| Dimension(L×W×H) | 134 x 120 x 26 (mm) |
| Safety / Emission | FCC, CE |
