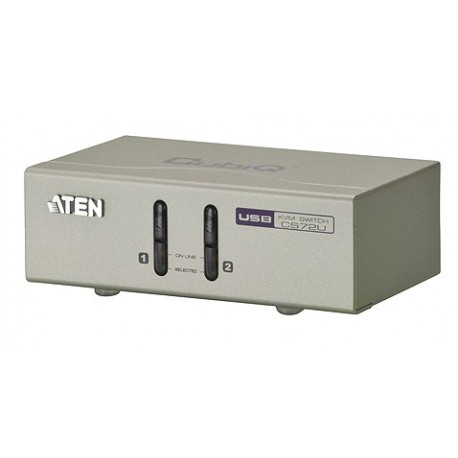

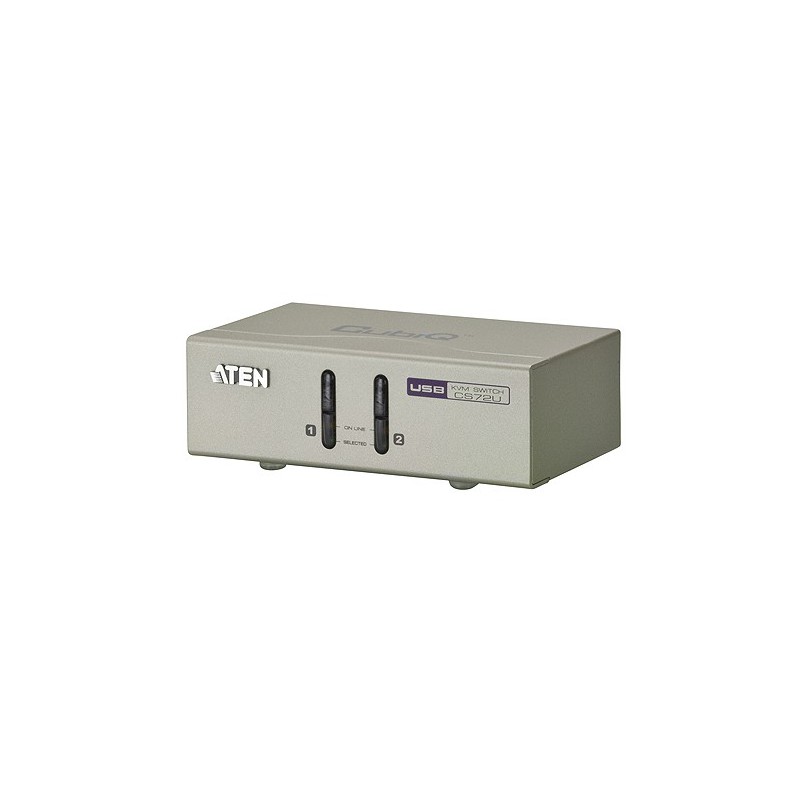

Aten 2 port USB KVM Switch with Audio
CS72U
KVM Switch 2 พอร์ต USB, สลับควบคุมการใช้งานคอมพิวเตอร์ 2 เครื่องด้วยจอ, คีย์บอร์ด, เมาส์ และเสียงในชุดเดียว
รับประกัน 3 ปีเต็ม
Spec Sheet
ManualThe CS72U 2-Port USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (keyboard and mouse, audio and VGA monitor).

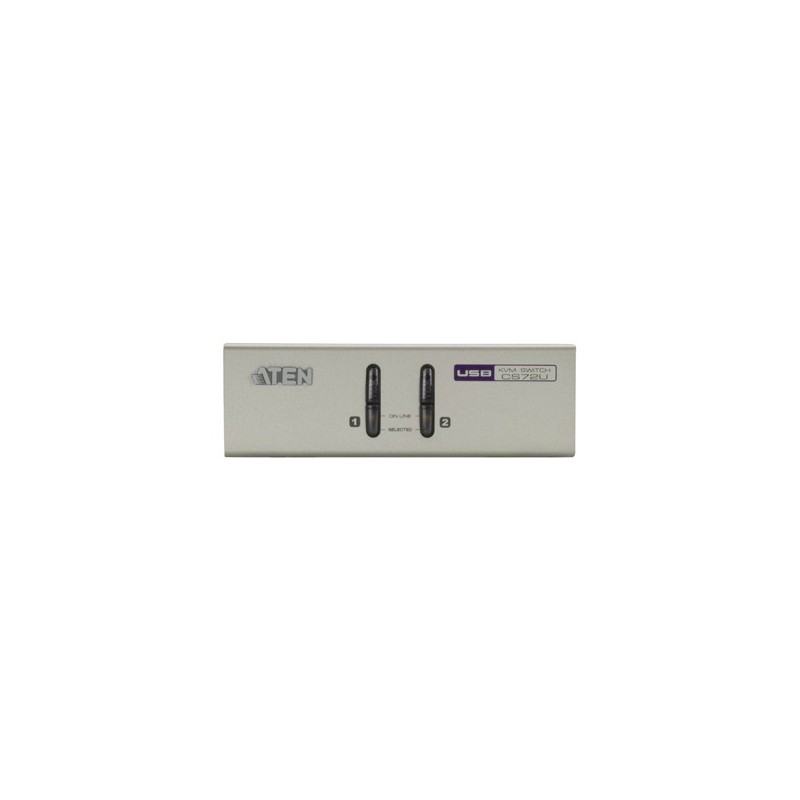

With the CS72U, you can access computers conveniently using port selection pushbuttons located on the unit’s front panel.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS72U intercepts keyboard input directly, it will work on multiple computing platforms.
Features
- One VGA console controls two USB VGA interface computers
- Computer selection via front panel pushbuttons
- Multiplatform support - Windows, Linux and Mac
- Audio Enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Superior video quality – 2048 x 1536; DDC2B
- Supports USB hot-plugging
- Non-powered
Package Content
- 1x CS72U 2-Port USB KVM Switch

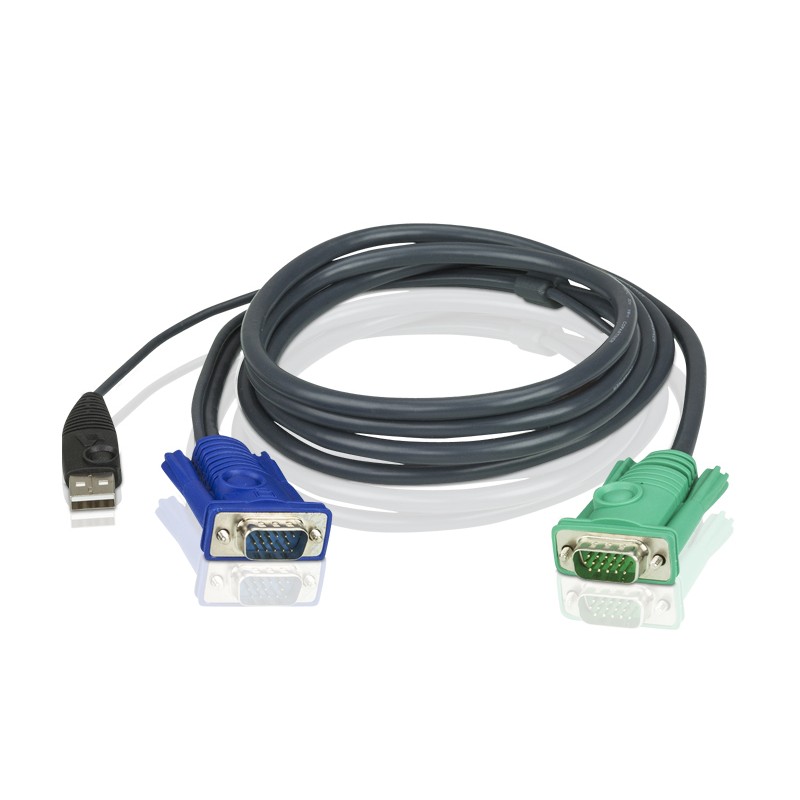

- 2x Custom KVM Cable sets
- 1x User Guide
- 1x User Manual
Diagram
Specification
| Computer Connections | 2 | ||
| Port Selection | Front Panel Pushbuttons | ||
| Connectors | Console Ports |
Keyboard | 1 x USB Type A Female (Black) |
| Video | 1 x HDB-15 Female (Blue) | ||
| Mouse | 1 x USB Type A Female (Black) | ||
| Microphone | 1 x mini stereo Jack Female (Pink) | ||
| Speaker | 1 x mini stereo Jack Female (Green) | ||
| KVM Ports | 2 x SPHD-18 Female (Green) | ||
| Power | 1 x DC 5V Jack (Spare) | ||
| LEDs | On Line | 2 (Orange) | |
| Selected | 2 (Green) | ||
| Switches | Selected | 2 x Pushbuttons | |
| Video | 2048 x 1536 @ 60 Hz; DDC2B | ||
| Power Consumption | DC5V, 0.5W | ||
| Environment | Operating Temp. |
0-50°C |
|
| Storage Temp. | -20-60°C | ||
| Humidity | 0 - 80% RH, Non-condensing | ||
| Physical Properties |
Housing | Metal | |
| Weight | 0.45 kg | ||
| Dimensions ( L x W x H ) | 13.00 x 7.45 x 4.20 cm | ||
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
