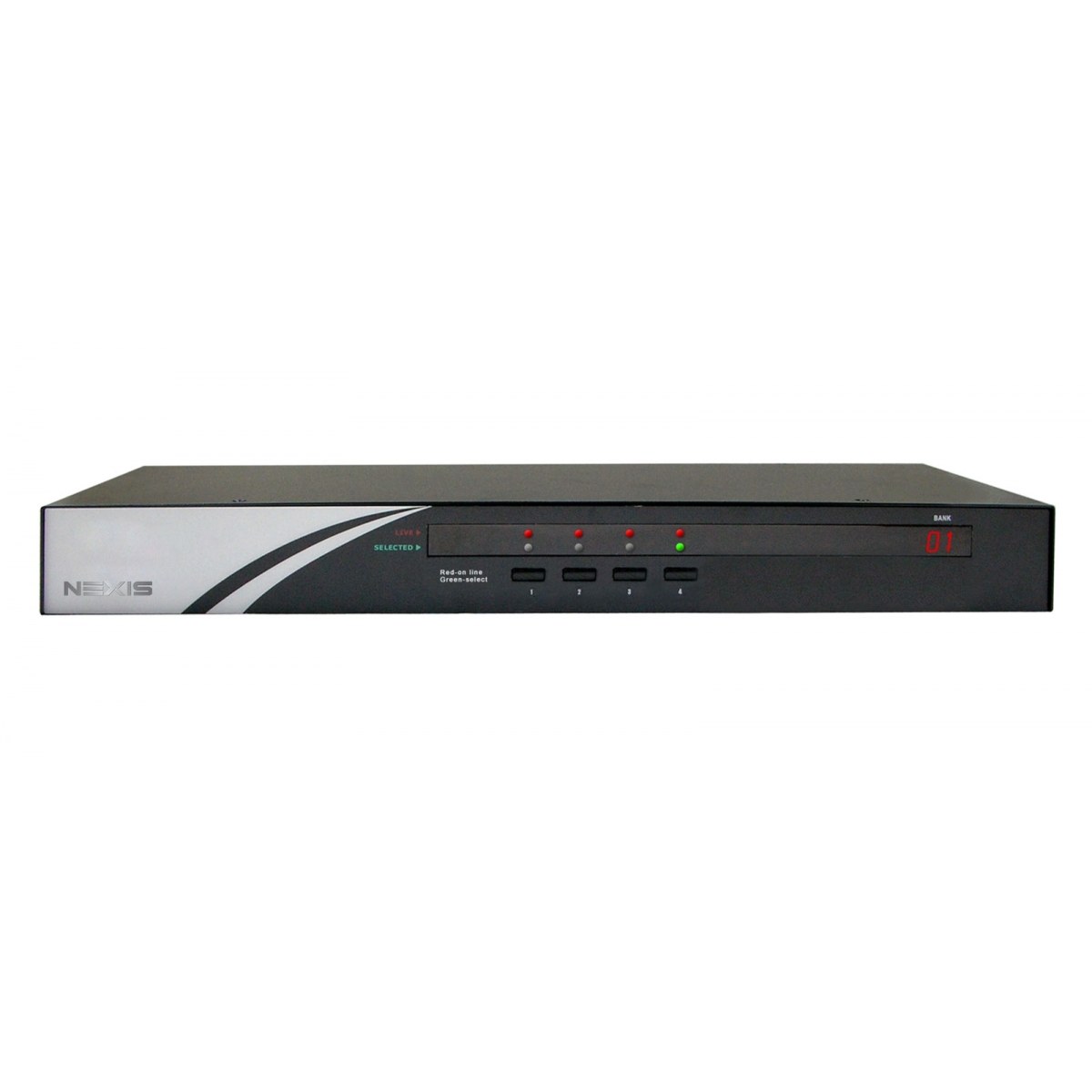

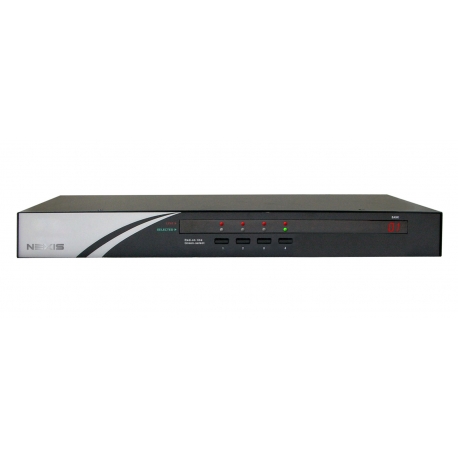

4-Port Rackmountable USB-PS/2 KVM Switch w/ OSD, Daisy-Chainable
KV814
KV814 is a 4-port USB PS/2 Rackmount KVM Switch that is designed for computer/server management on a central console in corporate, factory as well as in campus computing environment.
KV814 is a 4-port USB PS/2 Rackmount KVM Switch that is designed for computer/server management on a central console in corporate, factory as well as in campus computing environment. It provides the OSD Menu for intuitive KVM switching operations. Its cascadable feature can help upscale the server number to hundreds. Its enhanced hot-plugging capability allows you to plug off and on the KVM cablings without powering down a whole rack of servers, especially convenient when you are working on a sever rack configuration. Both USB and PS/2 interface support on both console side and PC side offers maximum convenience in a computing environment that accommodates both newer USB-enabled computers and older computers with only PS/2 interfaces.
Features
- 4-port 19” Cascadable Rackmount USB PS/2 KVM switch with OSD
- Cascadable up to 8 levels using daisy-chain cable
- Daisy-chaining distance up to a total of 30 M
- Port capacity scalable up to 116 PCs with multiple units in daisy-chain configuration
- USB and PS/2 interface support on both console and PC side
- Support Microsoft IntelliMouse®, IntelliMouse Explorer®, Logitech NetMouse® and other compatibles
- Direct channel selection and operation using front-panel push buttons and keyboard hotkeys
- Support for DOS, Windows 95/98/SE/ME/2000/XP, Linux, MacOS, etc.
- Numerical LED display and LED indicators for easy bank/port status monitoring
- Hot-plugging PCs for maintenance without powering down the KVM Switch or PCs
- Enhanced PS/2 mouse reset hotkeys for non-PnP OS such as Win NT 4.0 and Linux
- Plug-and-Play for PnP OS, no Windows driver software needed
- Buzzer sound for hotkey and port switching confirmation
- Autoscan mode for quick browsing of all connected computers
- Autoscan delay time programmable 5 ~ 100” through OSD Menu option
- Search PC by name
- Password protection
- Auto-logout timeout support
- High VGA resolution 2048 x 1536
- 19” rack mount design with metal enclosure for best shielding and protection
Specification
| Model No. | KV814 |
| Product Description | 4-Port Rackmountable USB-PS/2 KVM Switch w/ OSD, Daisy-Chainable |
| Number of Ports | 4 |
| Number of Console | 1 |
| Maximum PC Connections | 244 |

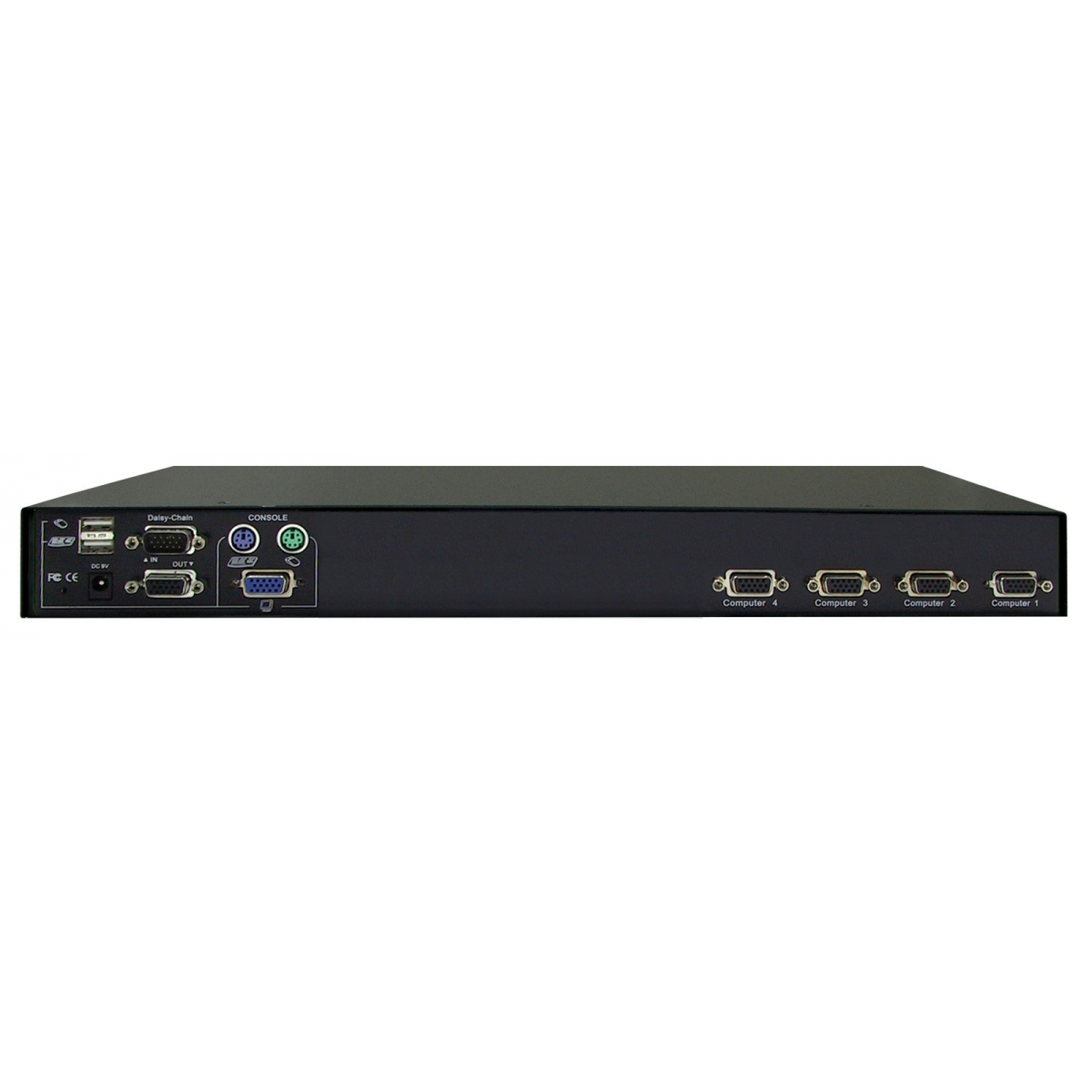

| Console Keyboard Connector | PS/2 Female + USB Type A Female |
| Console Mouse Connector | PS/2 Female + USB Type A Female |
| Console Video Connector | VGA HDB15 Female |
| PC Keyboard Connector | Via Video Connector |
| PC Mouse Connector | Via Video Connector |
| PC Video Connector | 4 x VGA HDB15 Female |
| Chain Topology | Daisy-Chain |
| Daisy-chain port Connector | HDB15 Female HDB15 Male |
| Chain Levels | 16 |
| PC selection | Push Button / Hotkeys / OSD |
| PC port LED | 4 (Green) 4 (Red) |
| Analog Display Resolution | 2048 x 1536 |
| Keyboard & Mouse Emulation | Yes |
| OSD Menu | Yes |
| Auto Scan Delay Time | 5~99 sec |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | PS/2 + USB Bus Power |
| Power Adapter | DC 9V/1A |
| Weight | 1.8Kg |
| Dimension(L×W×H) | 408.5 x 164 x 45mm |
| Safety / Emission | FCC, CE |
