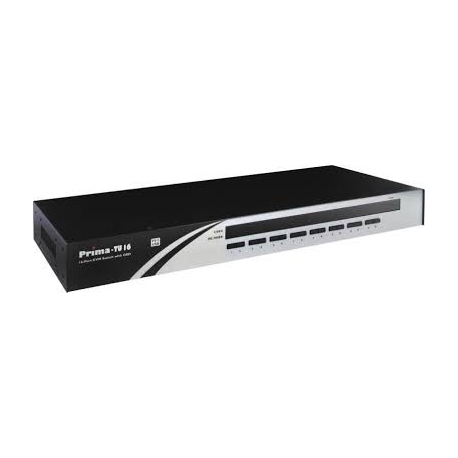

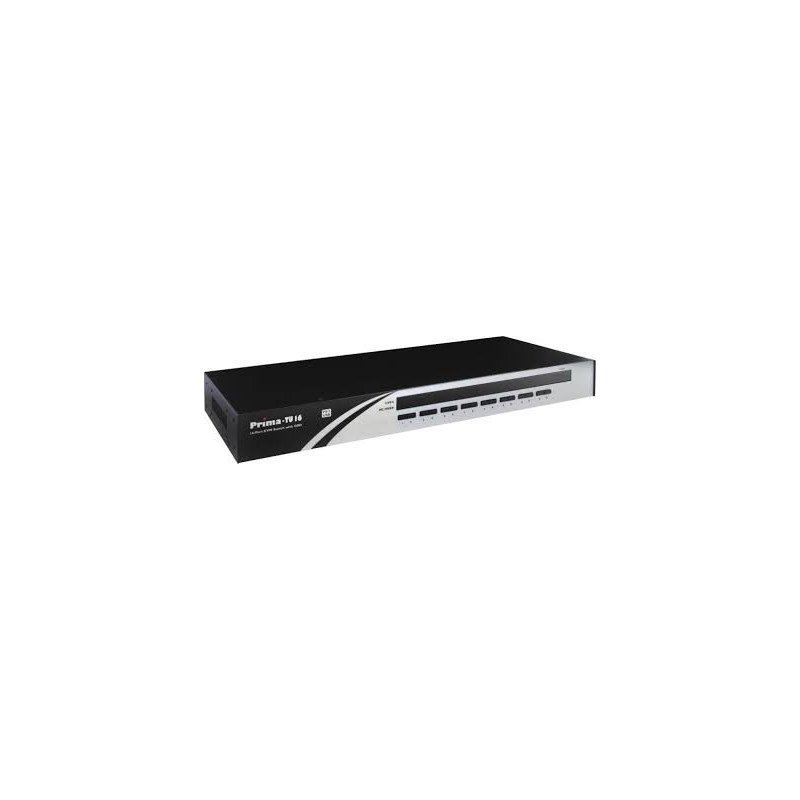

16-Port USB-PS/2 KVM Switch w/OSD, Hub, Tree-Chainable
KV9116
16-port 19" Tree-chainaable Rackmount USB PS/2 KVM switch with OSD + 2 x Transparent USB 2.0 Device Ports.
KV9116 is 16-port USB PS/2 Rackmount KVM Switch that offers 2 x transparent USB 2.0 device ports for easy sharing of high speed USB devices such as rescue disks or storage hard disks, etc. The Transparent USB feature allows the server admins to perform server rescue task using the USB hard disks connected via the transparent USB device ports. Since USB devices become so popular, even servers on rack will need to tap to the USB resources to complete its required task. However, with the number of servers ever replicating on rack, it is critical that a limited USB resources will have more difficulty to be shared efficiently among many rack servers. The transparent USB device ports are designed to address this issue in that it can easily provide an efficient way to share 2 USB devices among 16 computers. Thus, it can add more flexibility and value to maximize your USB resources sharing among many servers/computers. A maximum of 16 units can be tree-chained to provide a total maximum port capacity of up to 256 PCs (16 x 16). Tree-chaining distance can be up to a total of 10 meters. The Prima TU KVM switch can be tree-chained with Prima TU IP KVM switch to provide remote IP access to users across Intranet/Internet.
Features
- 16-port 19" Tree-chainaable Rackmount USB PS/2 KVM switch with OSD + 2 x Transparent USB 2.0 Device Ports.
- 2 x Transparent USB 2.0 device ports for server rescue task or simple device sharing.
- Tree-chainable up to16 units using daisy-chain cable.
- Tree-chain distance up to 10 M.
- USB and PS/2 interface support on both console and PC side.
- High VGA resolution 2048 x 1536.
- Firmware upgradable.
Specification
| Model No. | KV9116 |
| Product Description | 16-Port Rackmountable USB-PS/2 KVM Switch w/ OSD & Hub, Tree-Chainable |
| Number of Ports | 16 |
| Number of Console | 1 |
| Maximum PC Connections | 256 |
| Console Keyboard Connector | PS/2 Female + USB Type A Female |
| Console Mouse Connector | PS/2 Female + USB Type A Female |
| Console Video Connector | VGA HDB15 Female |
| Console USB Hub Ports | 2 x USB 2.0 Type A Female |
| PC Keyboard Connector | Via Video Connector |
| PC Mouse Connector | Via Video Connector |
| PC Video Connector | 16 x VGA HDB15 Female |
| Chain Topology | Tree-Chain |
| Daisy-chain port Connector | HDB15 Female |
| Chain Levels | 2 |
| PC selection | Push Button / Hotkeys / OSD |
| PC port LED | 16 (Green) 16 (Red) |
| Analog Display Resolution | 2048 x 1536 |
| Keyboard & Mouse Emulation | Yes |
| OSD Menu | Yes |
| Auto Scan Delay Time | 5~99 sec |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | 2.1mm Power Jack |
| Power Adapter | DC 9V/1A |
| Weight | 2Kg |
| Dimension(L×W×H) | 408.5 x 164 x 45mm |
| Safety / Emission | FCC, CE |
