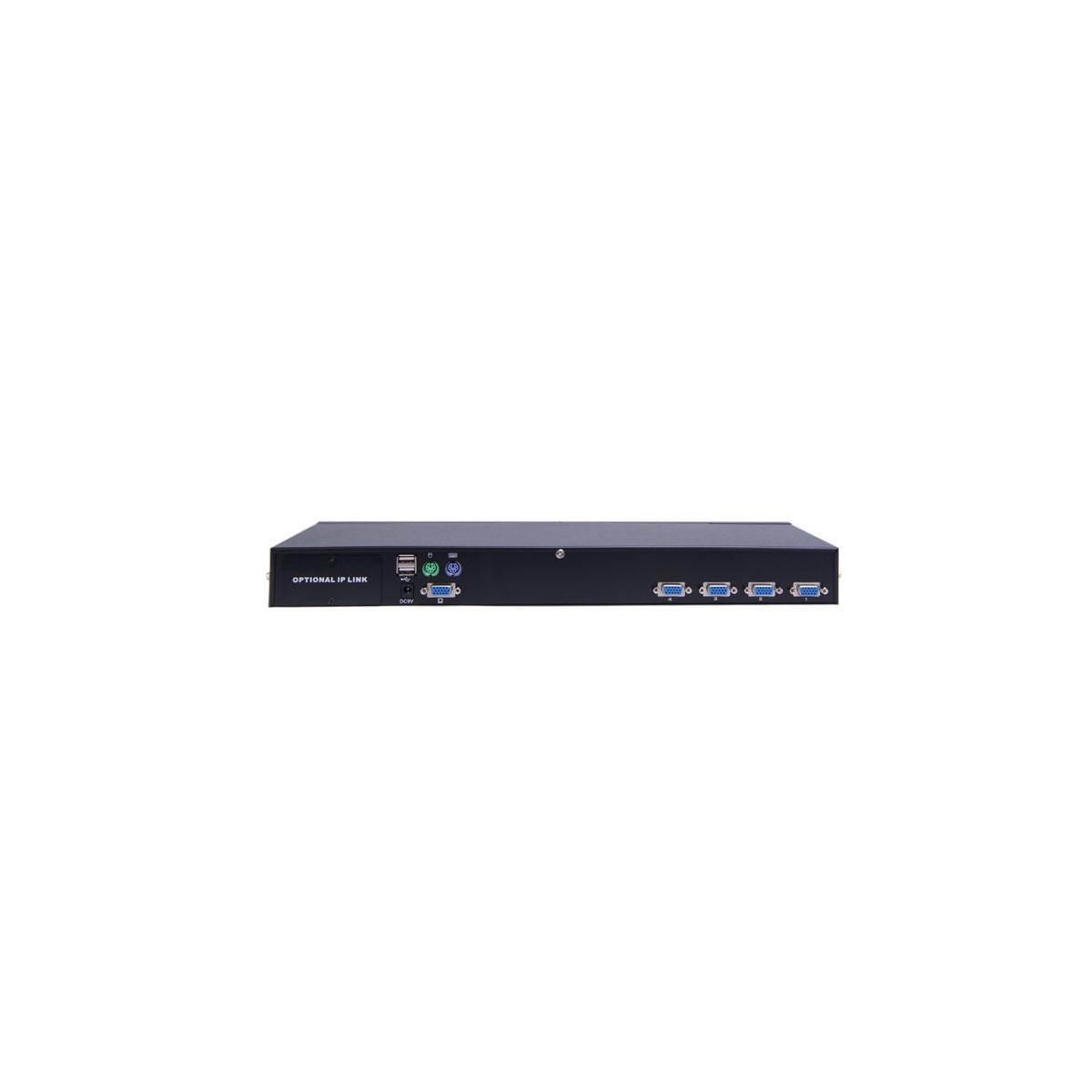

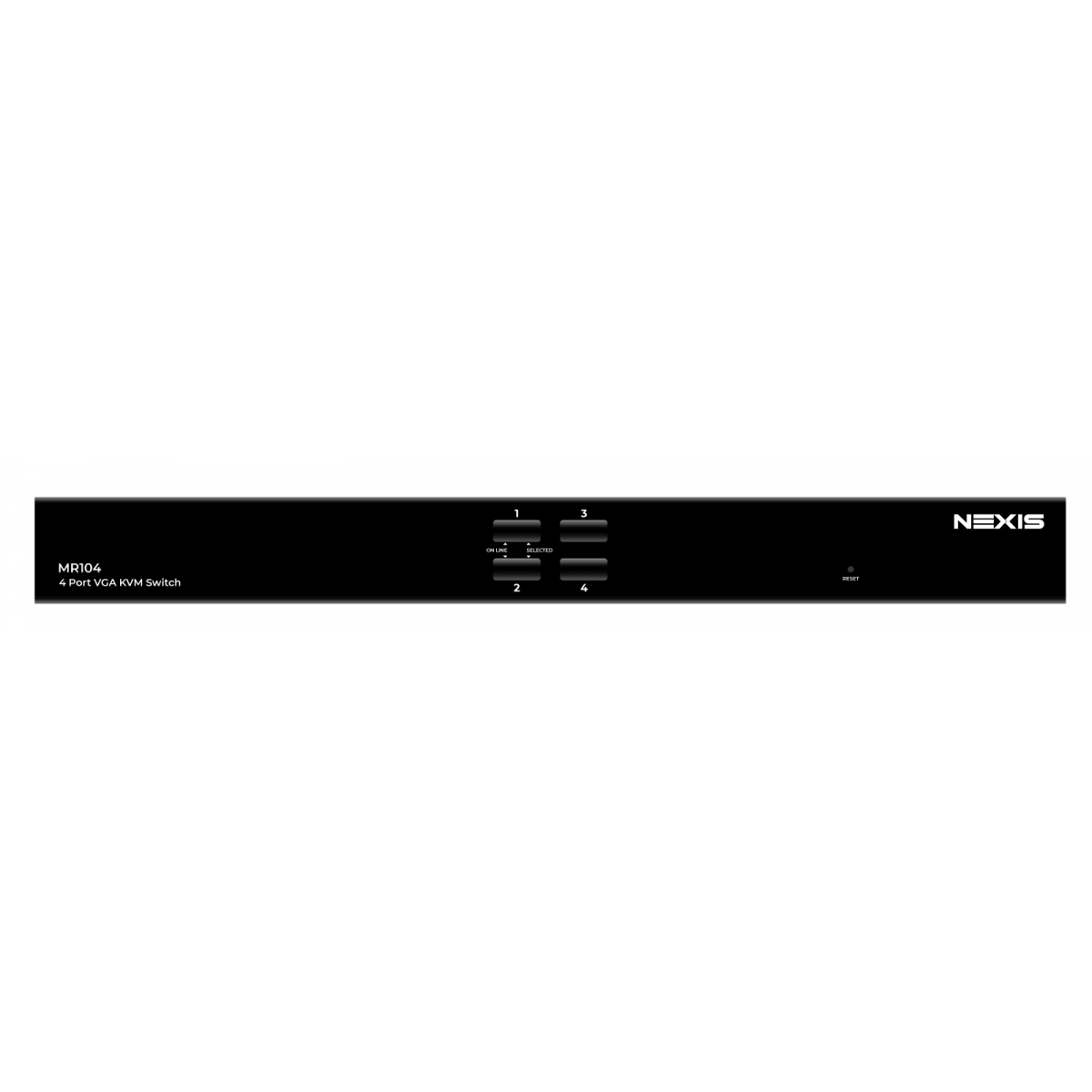

4 Port VGA/USB KVM Switch Rack-Mountable
MR104
4-Port VGA KVM Switch with IP Solot for IP Card installation (option), including 1.8m KVM cables
รับประกัน 2 ปีเต็ม
The MR104, USB / PS/2 KVM (Keyboard, Video, Mouse) Switches are control units that allow access and control of up to 4 computers from a single USB / PS/2 keyboard, USB / PS/2 mouse, and monitor console.
Features
- One console controls 4 computers
- Be compatible with USB / PS/2 keyboard and mouse in console and PS/2, USB keyboard and mouse in computer.
- Computer selection via front panel switches and OSD
- LEDs display for easy status monitoring
- Auto Scan Mode for monitoring all computers
- Superior video quality
- Easy installation – no software required
- Hot pluggable – add or remove computers for maintenance without powering down the switch
- Support cross-platform operation - Windows, Linux, Mac * and Sun *
Specifications
| Function | 4 port | ||
| Computer Connections | Direct |
4 | |
Cascade(Max) |
64 | ||
| CPU Port Selection |
OSD Menu, Front Panel Hot-Key, Hot-key, Remote Control IP (Optional) |
||
| Connector | Console Connectors |
Video | 1 x VGA DB15 Female Blue |
| Keyboard | 1 x USB Type A Female, 1 x PS2 Female (Purple) | ||
| Mouse | 1 x USB Type A Female, 1 x PS2 Female (Green) | ||
| Computer Connectors | Video/Keyboard/Mouse | 4 x VGA DB15 Female (Blue) | |
| Power |
1 x DC | ||
Network Port |
1 x RJ45(Optional) | ||
| Key Switch | Connection Port Selection | 4 x Button | |
| KVM Reset | 1 x Semi-embedded keys | ||
| IP Module Reset | 1 x Semi-embedded keys | ||
| IP Module Default | 1 x Semi-embedded keys | ||
| LEDs | Computer Selection Port | 4 x Green | |
| On Line | 4 x Red | ||
| IP Module Network Interface | 1 x Green, 1 x Orange | ||
| Analog Mode | Keyboard, Mouse | USB, PS2 | |
| Video resolution (Max) | 1920 x 1200 @ 60HZ Local & Remote | ||
| Scan time interval | 3, 5, 10, 15, 20, 30, 40, 60s (3s by default) | ||
| Operating Environment | Operating temperature | -10˚C~50˚C | |
| Storage temperature | -20˚C~60˚C | ||
| Humidity | 0-80%RH, No Condensation | ||
| Physical Properties | Housing | Metal | |
| Size | 432 x 155 x 44 mm | ||
| Weight | 1.82KG | ||
