CS1742
2 Port USB Dual View KVM Switch with 1.8m cable 2L-5202A x 2pcs and 2L-5201U x 2pcs, Speaker and microphone support, firmware upgradable
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

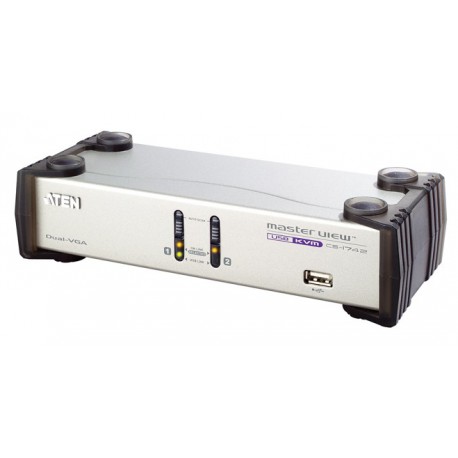

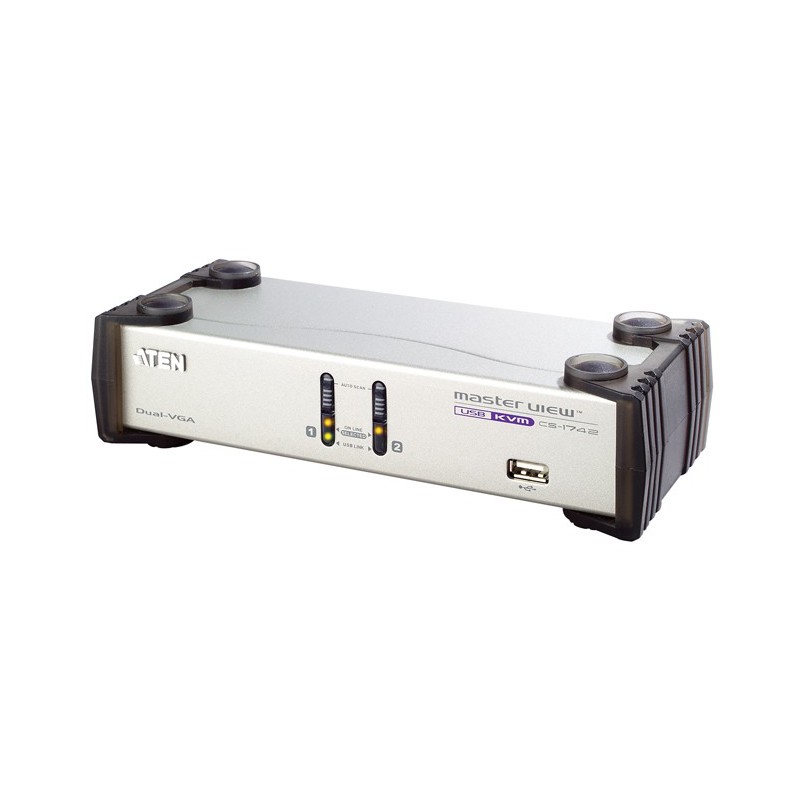

2-port USB KVM Dual-View
2 Port USB Dual View KVM Switch with 1.8m cable 2L-5202A x 2pcs and 2L-5201U x 2pcs, Speaker and microphone support, firmware upgradable
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Computer Connections | 2 | ||
Port Selection | Hotkeys, Pushbutton | ||
USB Port/ Audio Port Selection | Hotkey | ||

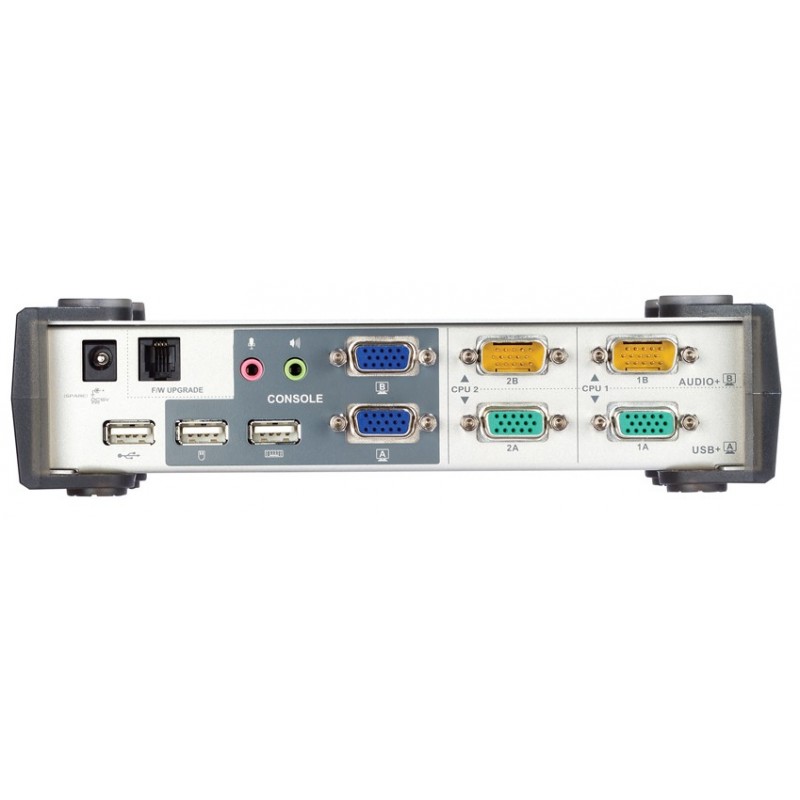

Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) |
Video | 2 x HDB-15 Female (Blue) | ||
Mouse | 1 x USB Type A Female (White) | ||
Speaker | 1 x Mini Stereo Jack Female (Green) | ||
Microphone | 1 x Mini Stereo Jack Female (Pink) | ||
KVM Ports | Speaker/Microphone | 2 x SPHD-15 Male (Yellow) | |
Video1 | |||
Keyboard/Mouse | 2 x SPHD-15 Female (Green) | ||
Video2 | |||
USB Hub | 2 x USB Type A Female (White) | ||
F/W upgrade | 1 x RJ11 Female (Black) | ||
Power | 1 x DC Jack (Black) | ||
Switches | Port | 2 x Pushbutton | |
LEDs | On Line / Selected | 2 (Orange) | |
USB Link | 2 (Green) | ||
Emulation | Keyboard/Mouse | USB | |
Video | 2048 x 1536; DDC2B | ||
Scan Interval | 1~99 seconds | ||
Power Consumption | DC5V, 1.25W | ||
Environment | Operating Temp. | 0~50 ํ | |
Storage Temp. | -20~60 ํ | ||
Humidity | 0~80% RH, Non-condensing | ||
Physical Properties | Housing | Metal | |
Weight | 0.82 kg | ||
Dimensions ( L x W x H ) | 21.00 x 8.70 x 5.50 cm |
