PCIe VGA 2D Power Saving Graphics Controller
VGA0419

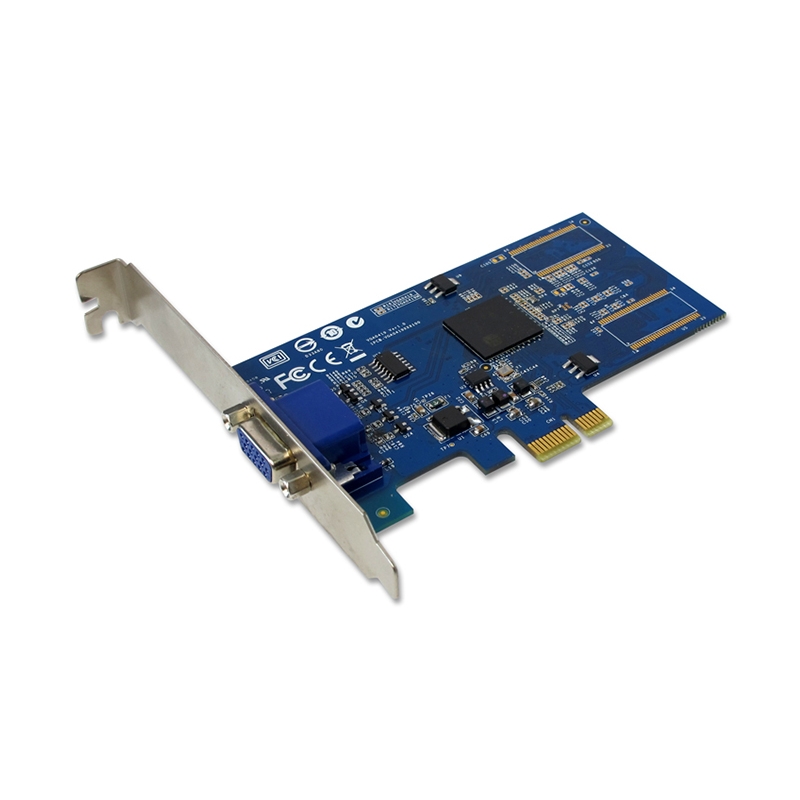

SUNIX VGA0419 graphics card which built-in ultra power saving graphics controller is specializes in commercial and industrial applications environments, only 2W ultra low power consumption, no heat-sink or fan needed, it is not only substantial increase in system MTBF rate and also best choice for green environmental protection energy conservation.
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX VGA0419 graphics card which built-in ultra power saving graphics controller is specializes in commercial and industrial applications environments, only 2W ultra low power consumption, no heat-sink or fan needed, it is not only substantial increase in system MTBF rate and also best choice for green environmental protection energy conservation. With high quality 2D 1920x1080 FullHD resolutions, 16.7M colors output, various drivers supporting, and PCI Express Bus cost efficient design. SUNIX VGA0419 is the high value and reliable graphics solution for server and cost conscious systems, such as servers, Thin Clients, ATM, POS system and industrial PC. This card is the best solution for multi-screen and expanding business opportunities.
Features
- Fully compliant with PCI Express 1.1 specification.
- Built-in standard VGA RGB connection.
- Ultra-Low power consumption 2W makes heat sink free.
- Max 2D resolution FullHD 1920x1080 resolution.
- Certified by CE, FCC, VCCI, BSMI, and RoHS. (
ข้อมูลเพิ่มเติม) - Supports a variety operation system, including Windows and Linux operation systems.
Specifications
Serial Communication
| Interface | PCI Express (x1) |
| Controller | Siliconmotion SM750 |
| Memory | 16MB DDR Synchronous DRAM (SDRAM) |
| Port Type | VGA RGB (S-Sub) |
| Power Consumption | 2W |
Driver Support
| Windows Client | XP/Vista/7/8/8.1/10 (X86/X64) |
| Windows Server | 2003/2008 (X86/X64) |
| Linux | Linux 2.x/3.x |
| DOS | DOS |
Regulatory Approvals
| Hardware EMC | CE, FCC, VCCI, BSMI |
| Software Driver | Microsoft WHQL Windows • Windows Client: XP/7/8/8.1 (X86/X64) • Windows Server: 2003/2008 (X64) |
Environment
| Operation Temperature | -10 to 70°C (-13.9 to 158°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 67.5(W) x - 112(L)mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
Download Driver
| Driver | SM750 WDDM2.0 v10.00.12.00 WHQL |  |
| Version | 10.10.12 | |
| Update | 2019-08-22 16:02:01 | |
| Size | 1.2MB | |
| OS |
Windows 10 32/64 bit
|
