PC/Component to CV Scaler
CV-VY2C

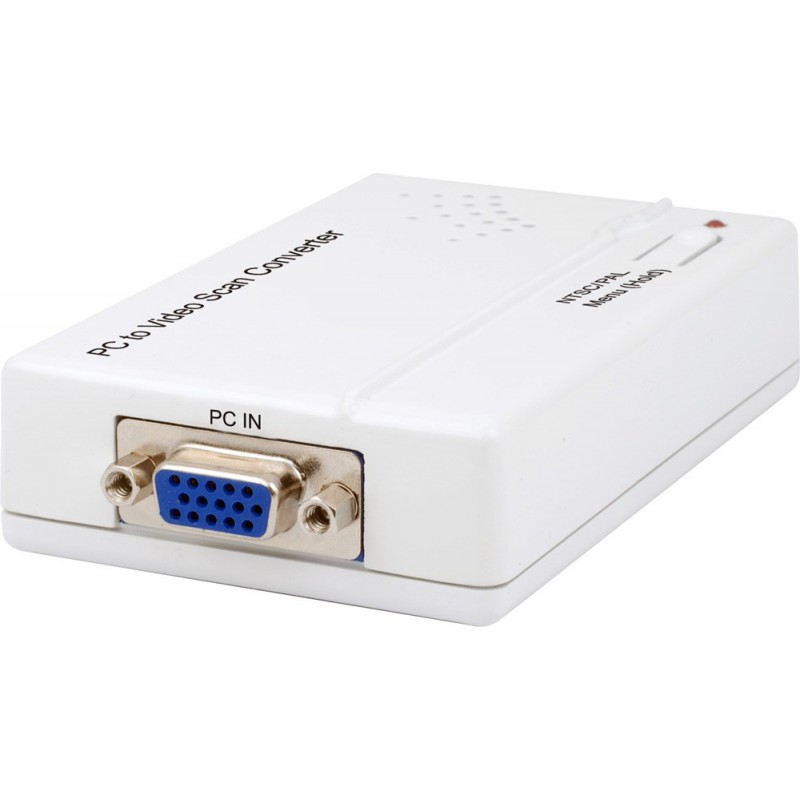

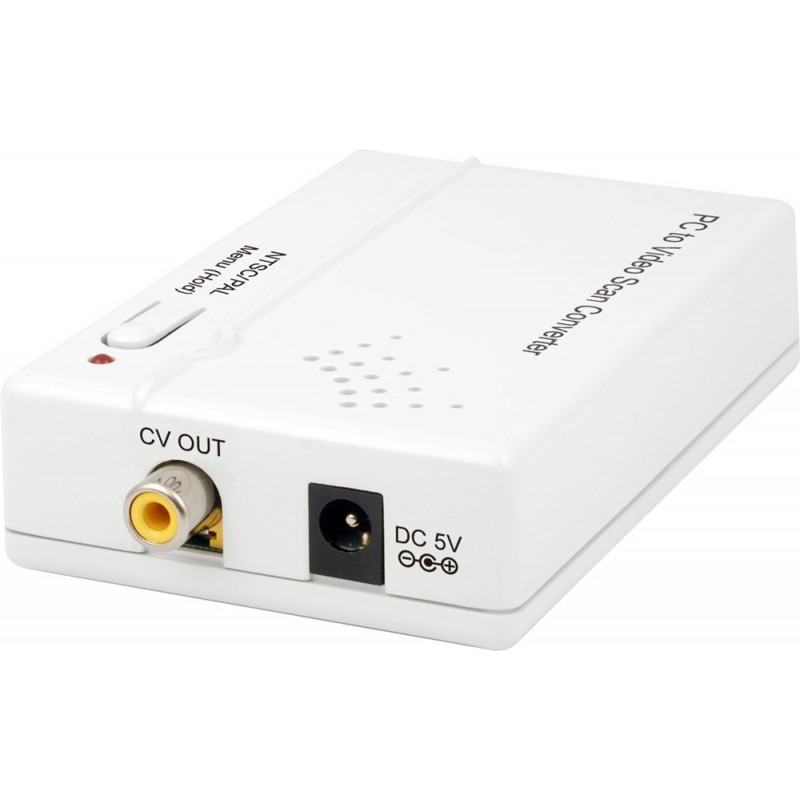

The PC/HD to Video Scan Converter is designed to down-scale PC/Component source to analog CVBS (NTSC,PAL) signal.
ManualThe PC/HD to Video Scan Converter is designed to down-scale PC/Component source to analog CVBS (NTSC,PAL) signal. Ideal for businesses with multiple CCTV cameras, this device takes your highresolution camera footage and scales it to lower resolutions. Supporting PC resolutions up to WUXGA@60Hz, this scaler can also connect new video sources to older displays. The device has many great features such as 3D noise reduction, frame rate conversion, adaptive contrast enhancement and many more. It also has a simple on-screen display (OSD) menu that allows the user to access the display status including input/output information.

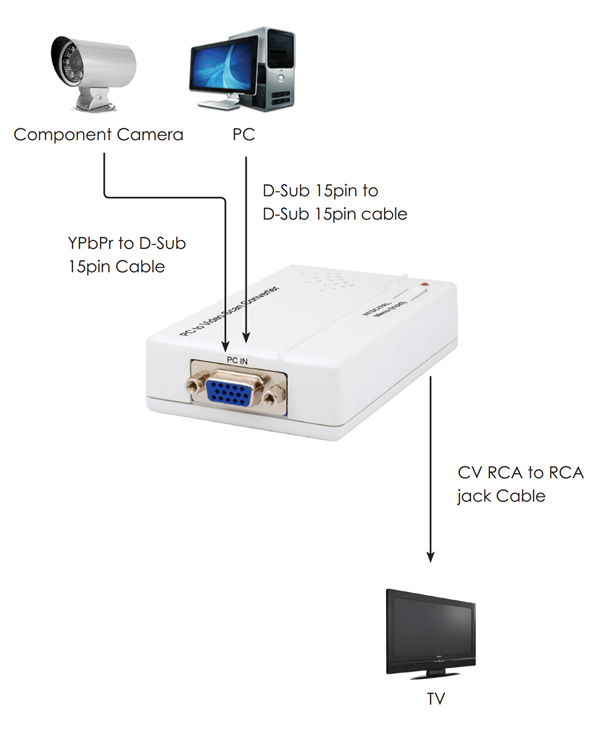

- Security camera display
- PC signal on a non-VGA CRT display
- PC signal on a non-VGA LCD display
FEATURES
- Converts the video signal from PC/component source to NTSC or PAL signal
- Accepts a wide range of component input resolutions from 480i to 1080p@60 Hz and PC input resolutions from VGA to WUXGA@60 (RB)
- 3D noise reduction in both temporal and spatial domain
- Frame rate conversion
- Adaptive contrast enhancement
- OSD Display
- Overscan and underscan adjustment
- Phase and Aspect adjustment
- No software installation required
- Compact and elegant design
NOTE: the following modes are not supported:
1. Interlace source signal conversion between 50/60 Hz
2. 480i and 1080i@60 to PAL frame rate conversion
3. 576i and 1080i@50 to NTSC frame rate conversion
