DVI/VGA/Component Video to DVI/VGA Scaler
SL-DVY2D

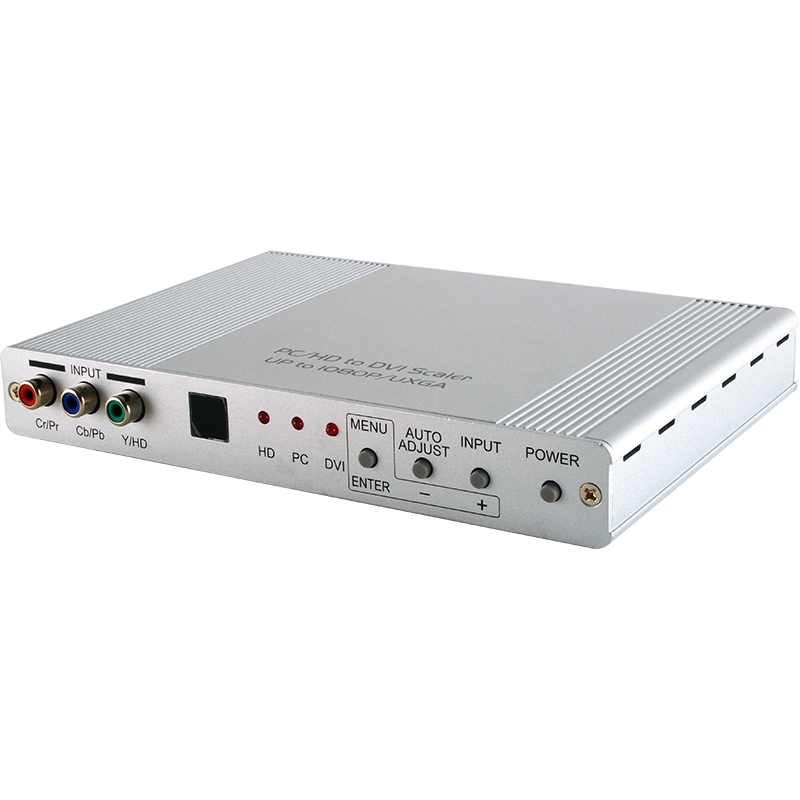

This DVI/PC/HD to DVI/PC Scaler is capable of scaling and source switching from PC (VGA), Component Video (SD/HD) and DVI input signals to analog PC (VGA) and digital DVI outputs.
รับประกัน 1 ปีเต็ม
ManualThis DVI/PC/HD to DVI/PC Scaler is capable of scaling and source switching from PC (VGA), Component Video (SD/HD) and DVI input signals to analog PC (VGA) and digital DVI outputs. It has the added benefit of control through front panel buttons and IR Remote, and there is on-screen menu (OSD) providing setting selection and system information. The device provides a full range of output resolutions, up to 1080p for HDTV resolutions, and WUXGA for PC resolutions making it ideal for use in professional large screen presentation applications.
Features
- Supports PC/RGB (up to WUXGA/RB), Component Video/HD (480i to 1080p) and DVI (up to WUXGA/RB) inputs to be scaled to analog PC and digital DVI outputs (up to 1080p/WUXGA)
- Supports analog PC or SD/HD input in RGBHV, YPbPr/YCbCr or digital DVI formats
- Supports digital DVI and analog PC output resolutions from 480i to 1080p and VGA to WUXGA (RB)
- DVI input is fully DVI and HDCP compliant
- Note: If the input is HDCP encrypted then DVI output is also HDCP encrypted. There is no analog PC output for HDCP encrypted content.
- 'NATIVE' output resolution ensures the most optimal display resolution for user's screen
- Note: When 'NATIVE' is selected as the output resolution, the Scaler will automatically detect the native resolution of the display and set the optimal resolution to match the display's optimum output resolution.
- Supports automatic detection of input resolutions
- Supports selection of the output resolutions and refresh rates
- Supports adjustment of brightness, contrast, color, RGB level, and Horizontal/Vertical position for the output signal
- Supportss advanced features such as Noise Reduction and
- Overscan/Underscan adjustments
- Supports OSD menu, front panel buttons or IR remote controls

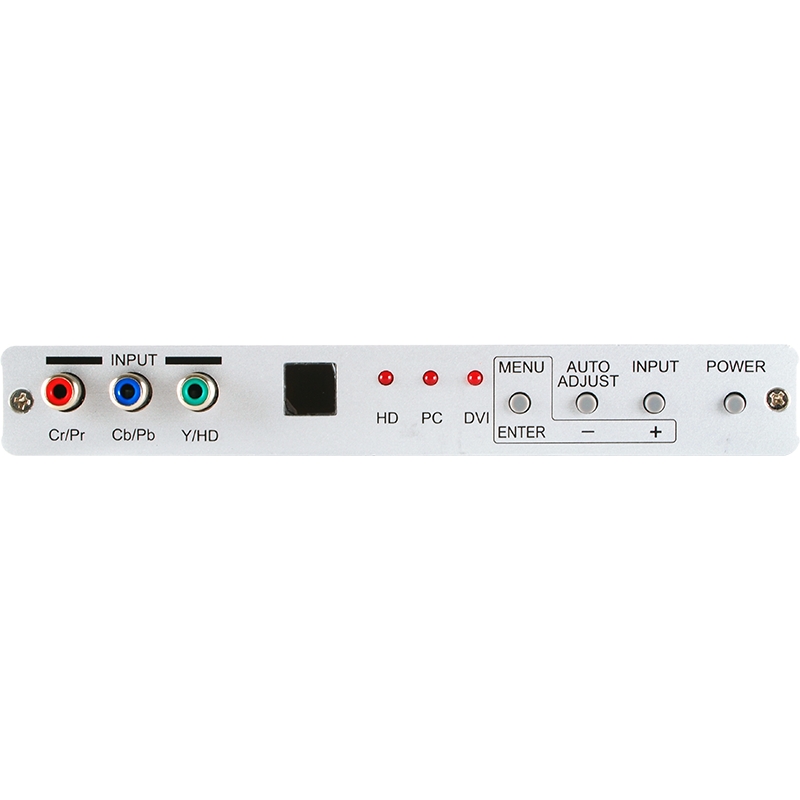

| Inputs | 1x DVI-I [1x DVI-D] 3x RCA [1x HD YPbPr Component / YCbCr Component] 1x 15-pin D-sub [1x PC RGBHV] |

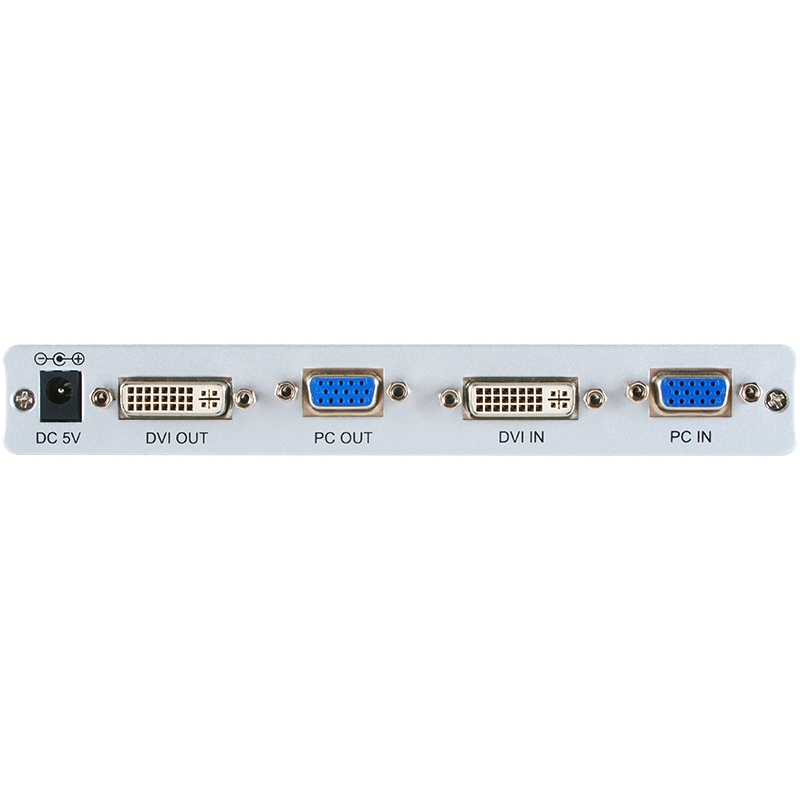

| Outputs | 1x DVI-I [1x DVI-D] 1x 15-pin D-sub [1x PC RGBHV] |
| PSU: | 5V/2.6A |
| Dimensions | 180mm [W] x 132mm [D] x 25mm [H] |
| Net Weight | 452g |

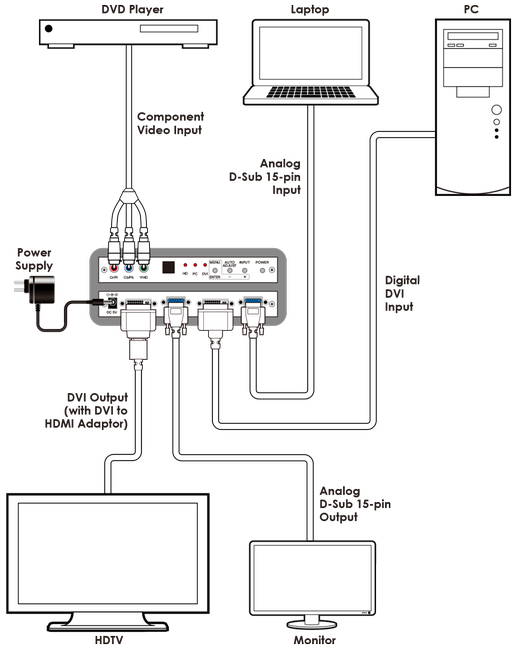

Diagram
