The DiSign system

รุ่น DiSign system

The Digital Signage system DiSign extends and distributes a computer's video and audio signals to multiple remote output devices, which can be placed in a distance of up to 300 m.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม

ส่งให้เพื่อน

ส่งให้เพื่อน

The DiSign system

The Digital Signage system DiSign extends and distributes a computer's video and audio signals to multiple remote output devices, which can be placed in a distance of up to 300 m.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Manual Spec

รับประกัน 3 ปี

The Digital Signage system DiSign extends and distributes a computer's video and audio signals to multiple remote output devices, which can be placed in a distance of up to 300 m.

DiSign is based on hardware and requires no additional installation. The system works independently from any user software installed on the computer.

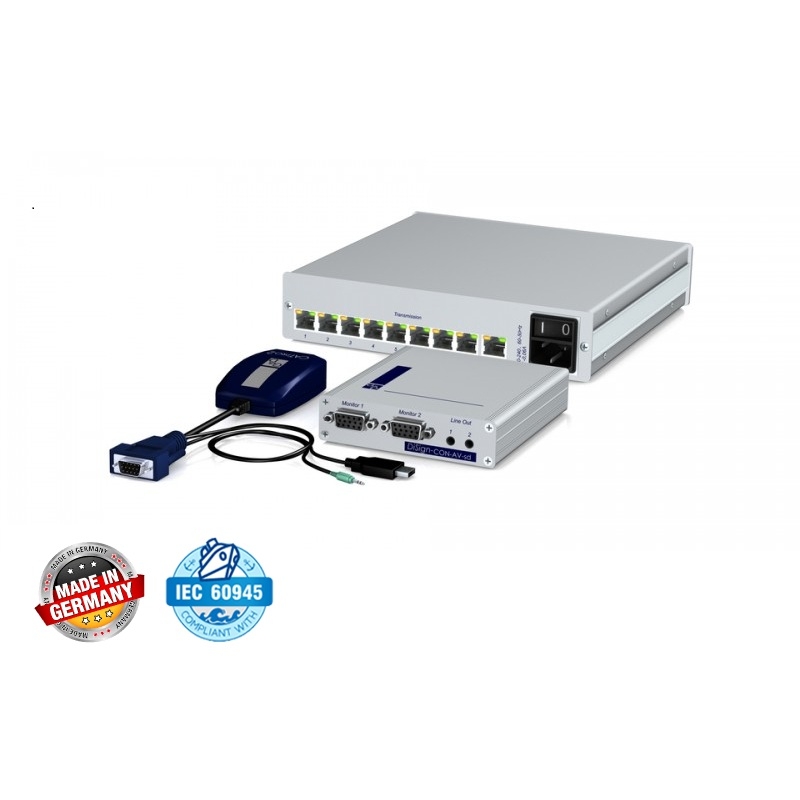

The modular system consists of three components:

1 × computer module CATpro2
1 × distributor DiSign-Splitter
1 × display module DiSign-CON

Computer modules can also be connected directly to display modules.

Product details

Components

Computer modules
The CATpro2-Audio computer module is connected to the ports of the computer that produces the image and processes the signals for the transmission over CAT-x cable.

DiSign-Splitter
The DiSign-Splitter reproduces the signals of a source computer at 8 outputs. Therefore, it is not necessary to place the source computer producing the video and audio signals in the immediate surroundings of the display.

Display module DiSign-CON
The display modules receive audio/video information from the splitter and provide ports to connect the display.

Details

Video

Automatic video tuning for each line between computer and display

Signals

VGA resolutions up to 1920 x 1140 @ 75 Hz
Audio in CD quality

Transmission

Splits the signals of one source to eight outputs
Connected via CAT-x cable (x = 5, 6, 7)

Device

DiSign-Splitter-1AV8
- Available as desktop variant
- Requires no software installation

DiSign-CON
- External power supply
- Connects 2 displays per device
- Hot pluggable

CATpro2-Audio
- Unique ID (identification ID of the computer module) auto-aligns each line between splitter and user modules
- Available in converter design
- Hot pluggable
