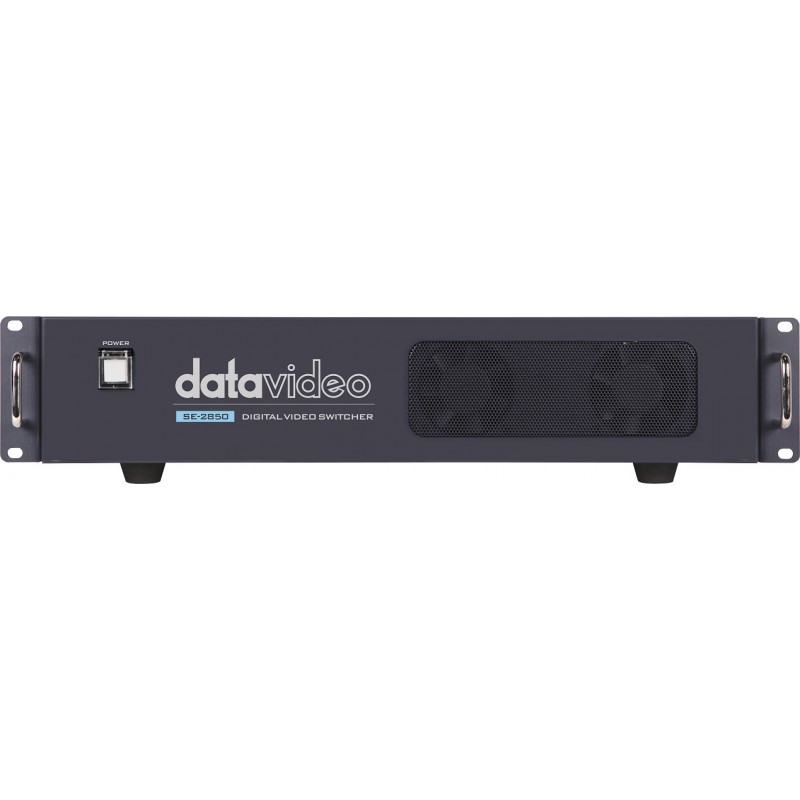

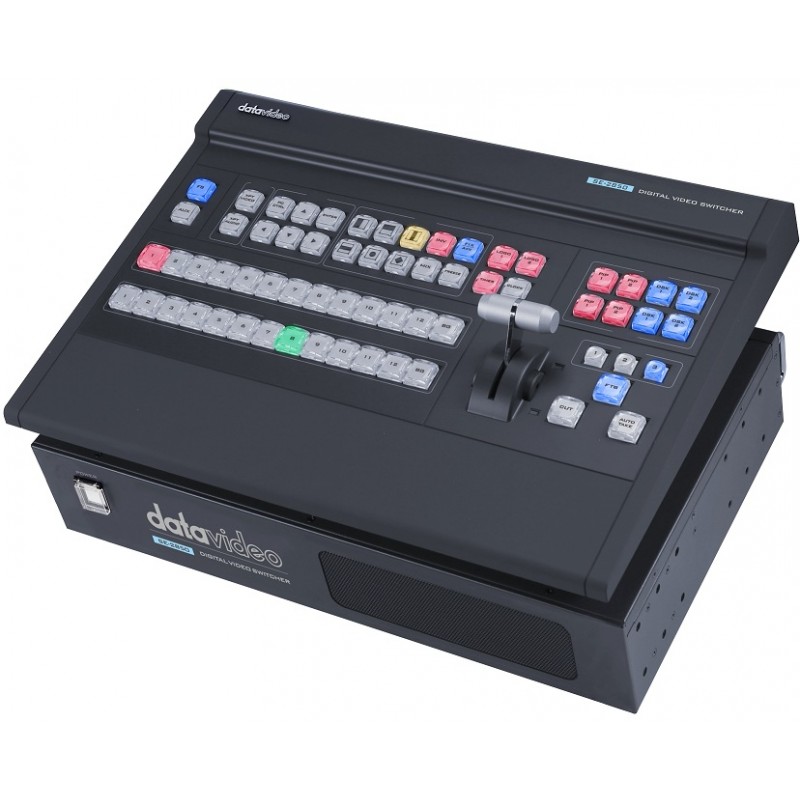

Video Switcher เครื่องผสมสัญญาณภาพ 12 CH HD/SD
SE-2850
Video Switcherเครื่องผสมสัญญาณภาพ 8/12 CH HD/SD Switcher ที่ Input, Output ทั้ง HD/SD ในงานเดียวกัน, 2 PIP/Logo/DSK เลือก Source ได้ครบตาม Input และเมนูปรับแต่งบนจอ สะดวกในการมองขณะปรับแต่ง แยกแผงควบคุมและ Input Unit ออกจากกัน ซ่อมบำรุงได้สะดวก เมื่อติดตั้งเข้ากับ Rack ลดความผิดพลาดของพิธีกร ด้วยไฟ Tally 2 สี
HD/SD 8/12-Channel Digital Video Switcher

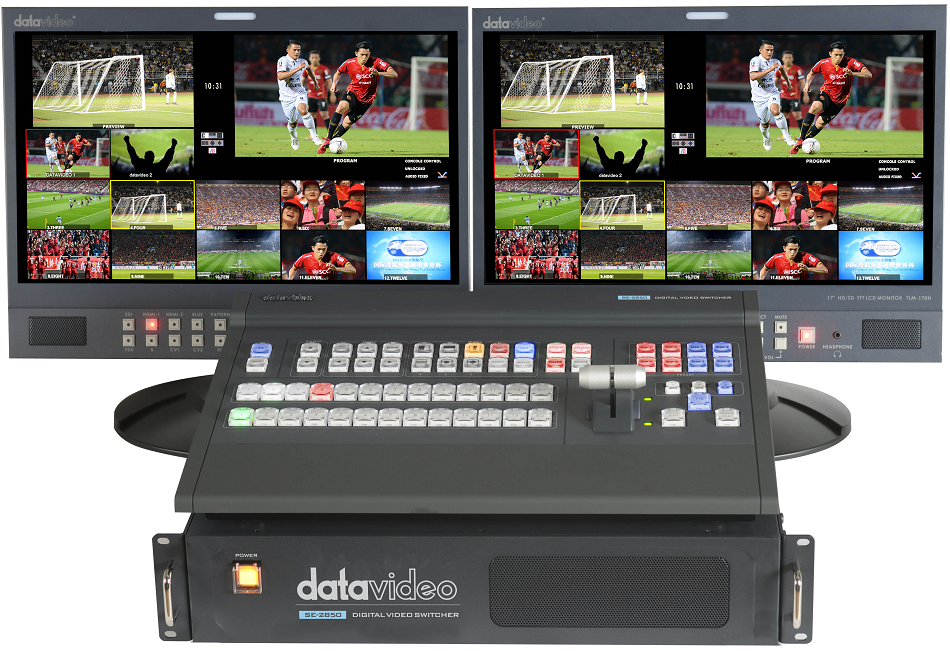

8 inputs standard. Upgradable to 12 inputs.
The SE-2850 is the only rack-mounted, 8-input switcher that can be upgraded to 12 inputs to support even larger productions. (SDI and HDMI inputs)
Support for various input resolutions simultaneously
Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment.
Perfect lip sync
The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production.
Assignable Crosspoints
The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface.
Included CG Title Creator
The SE-2850 includes the entry-level CG-200 software for creating on-screen text and titles. (Upgradable to CG-350 for advanced features)

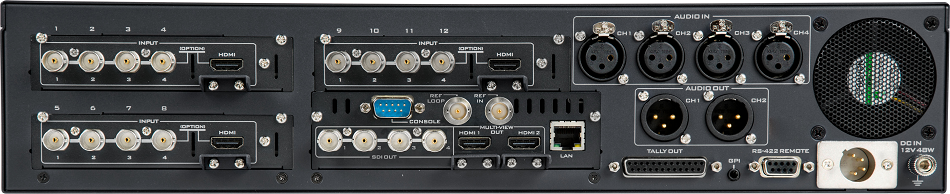

Supports 12 HD or SD Inputs in a variety of configurations
HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI
Professional 10-bit processing switcher
Providing you the best and professional quality of video processing.
Real-time clock featuring HH:MM:SS on the multi-screen
Count down counter MM:SS
คุณสมบัติ
- Supports 12 HD or SD Inputs in a variety of configurations:
HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI
SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI - 6 user-defined output options on 4 SDI output channels.
- User defined and positioned dual PIP.
- Two downstream keyers (DSK) with a setup choice of basic Luma key or alpha channel.
- Built-in title overlay system (TC-200) that works with entry level Datavideo CG systems.
- Two independent LOGOS.
- Frame Store (FS) source for each input channel.
- Real-time clock featuring HH:MM:SS on the multi-screen.
- Count down counter MM:SS.
- User defined wipe buttons - choice of 17 wipes with optional border.
- Support XPT cross point: XPT Video and XPT Audio.
- Audio delay for each de-embedded audio source.
- Two Audio output modes (Selectable on OSD):
--“External analog Audio” - output SDI embedded audio is two stereo pairs from 4 analog audio inputs
--“Audio Pass Through”- output SDI embedded audio is internal digital stereo pair - Remote control over an Ethernet network using a supplied PC application running on Windows 7 Operating System or above.

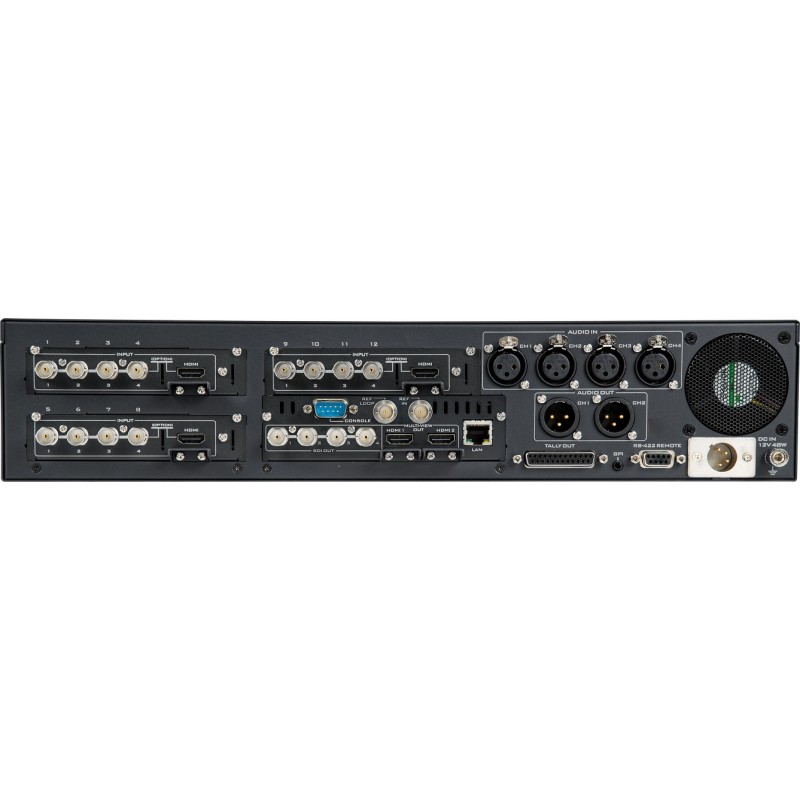

- Separate, rack mountable processing unit.
- Two GPI modes: Level / Pulse trigger selectable.
Specification
| SE-2850 HD/SD 8/12-Channel Digital Video Switcher | |
| Video Standard | HD & SD |
| Video Format | 1080p 25/29/30/50/59.94/60Hz |
| 1080i 50/59.94/60Hz | |
| 720p 50/59.94/60Hz | |
| 576i 50Hz | |
| 480i 59.94Hz | |
| Video Processing | SDI: 4:2:2 |
| HDMI: YUV 4:2:2 10 bit, RGB 4:4:4 | |
| Input Routable / Crosspoint | All 12, repeatable |
| Video Input | Standard: 8x SDI, 2x HDMI |
| Max: 12x SDI, 3x HDMI | |
| Mix HD & SD Source | Yes |
| Computer Graphic Interface | Max 3 via HDMI |
| Video Output | 4x SDI assignable: |
| PGM, PVW, AUX & Clean Out | |
| 2x HDMI assignable: | |
| PGM & multi-view | |
| Down-converted Output | 4x SDI |
| Built-in Multi-view Monitoring Out | 2x HDMI |
| Analogue Audio Input | 4x Balanced XLR |
| Analogue Audio Output | 2x Balanced XLR |
| Digital Embedded Audio Support | Input up to 16 channels, Output 4 channels |
| Audio Delay Calibration | Up to 8 frames per channel (*SDI input audio only) |
| A+V Switching | Yes |
| Title Creator | Yes, CG-200 software free download |
| DSK | 2x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture in Picture | 2 |
| Logo Insertion | 2 (or 1 logo + 1 clock) |
| Still Store | 12 |
| Effects | FTB, Cut, 8 Wipe with border |
| Transition Preview | PiP & DSK |
| Sync / Reference In/Out | Built-in Genlock |
| Support external sync with loop thru | |
| Tally Output | 1x D-sub 25pin, dual color |
| PC Remote Control | Ethernet (free Window software) |
| RS-422/ RS-232 | |
| Special Features | 4-CH SD downconvert output |
| Built in TC-200 CG system | |
| Selectable SMPTE/EBU Audio level | |
| Chassis | 2 units, 2RU rack-mount mainframe |
| Dimension (LxWxH) | 433 x 312 x 76 mm (switcher) |
| 432 x 252 x 88 mm (main unit) | |
| Weight | 4.7 kg |
| Power | DC 12V, 44W |
| Operating Temp. Range | 0~40 °C |
| Options | CB-46/47/60/61/62 |
| What's in the box | 1 x SE-2850 Main Unit |
| 1 x SE-2850 Control Board | |
| 1 x AD Switch DC 12V with AC Cord | |
| 1 x DB9P TO DB9P Cable | |
| 1 x CB-41 / XLR to XLR Cable | |
| 2 x Extra button cap for wipe | |
| 12 x Screw | |
| 2 x 2U Ear Rack | |
| 1 x Thank You Card | |
