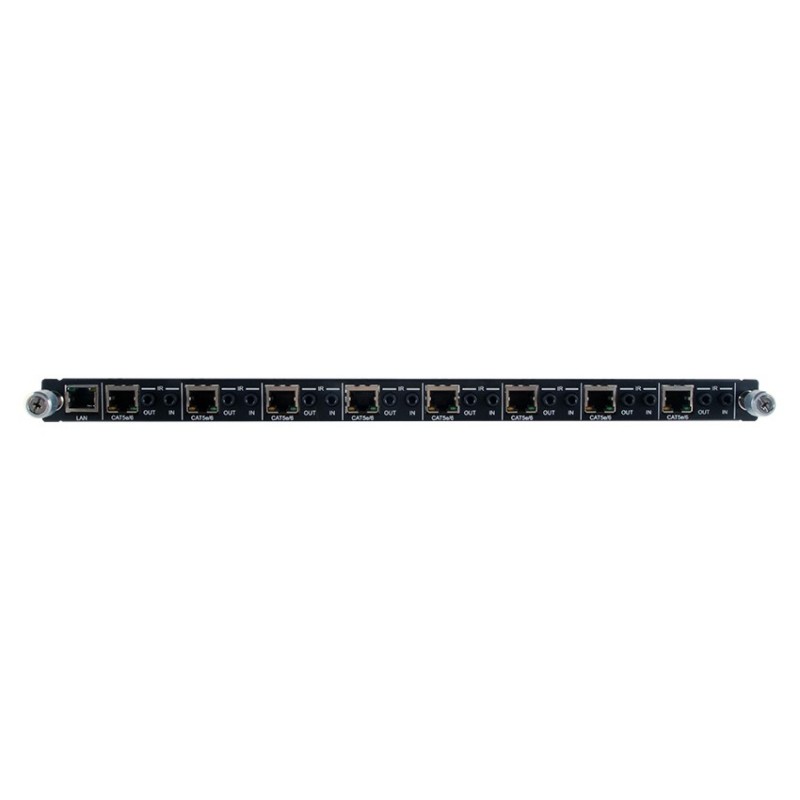

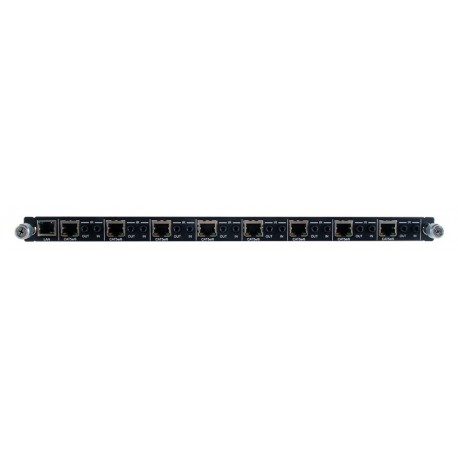

HDBaseT 4K2K Output Module for MT1616 / MT3232
Features
- Inputs
- 8x 3.5mm Stereo mini-jack [8x Infra Red Receiver]
- 1x RJ45 [1x LAN Serving]
- Outputs
- 8x RJ45 [8x HDMI & Propriety Data]
- 8x 3.5mm Stereo mini-jack [8x Infra Red Emitter]
- Video Bandwidth: 300MHz/10.2Gbps
- HDBaseT technology: PoE, IR/RS-232, and Ethernet functions
- Output Ports: 8 CAT5e/6/7, 8 IR Extender, 8 IR Blaster, and 1 LAN
- Ethernet Speed: 100Mbps
- Supported PC Resolutions: VGA to WUXGA
- Supported HD Resolutions: 480i to 1080p and 4K2K@30Hz
- IR Frequency: 30~50Hz
- Supported Audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supported Audio sampling rate: 32~192kHz
