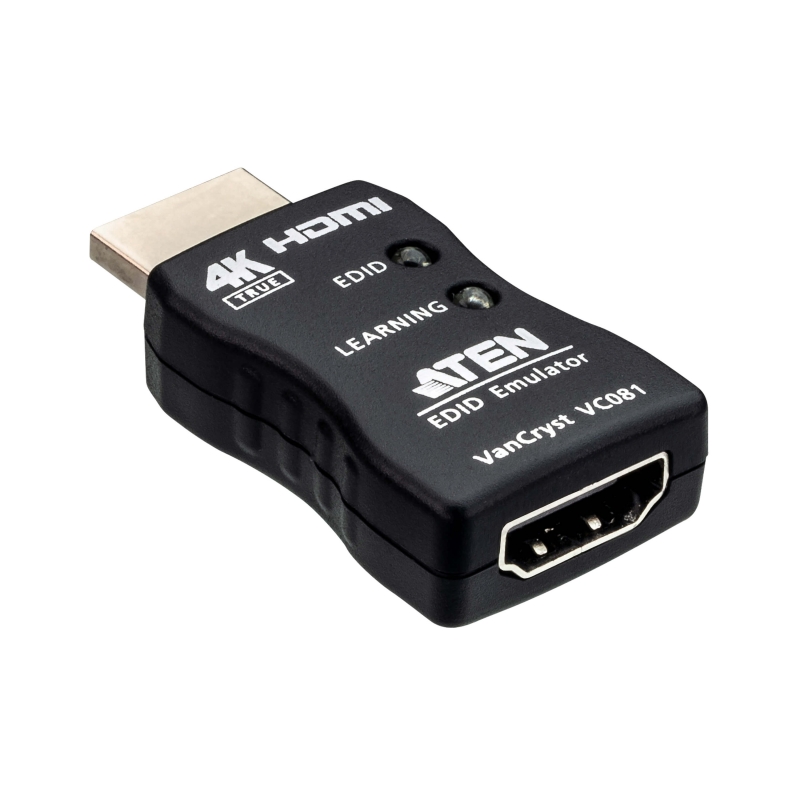

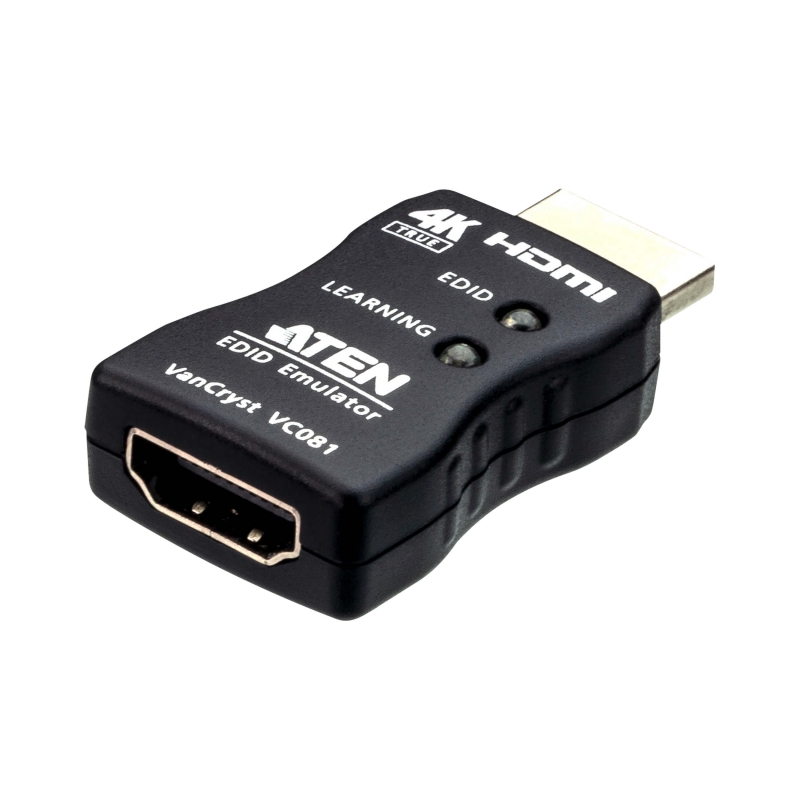

True 4K HDMI EDID Emulator
VC081
The VC081 True 4K HDMI EDID Emulator is designed to overcome EDID related problems which can occur when used with AV or KVM extenders, switches, and splitters.
สินค้าตกรุ่น
แนะนำสินค้าทดแทน : VC081A
รับประกัน 3 ปีเต็ม
SpecThe VC081 True 4K HDMI EDID Emulator is designed to overcome EDID related problems which can occur when used with AV or KVM extenders, switches, and splitters. By learning the EDID from the HDMI display and relaying it to the video source, the VC081 can effectively resolve video communication problems that occur when EDID data between the HDMI video source and display are not correctly synchronized. Moreover, after the display’s EDID is learned, the VC081 can be used in place of a monitor to keep a PC or Server awake for remote access via IP.
For product application, the VC081 is an ideal tool for wiring installation in traffic stations and commercial centers.
Features
- Manages EDID communication between connected devices
- Effectively learn the EDID from the HDMI display and relay it to the video source
- HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Superior video quality – up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
- LED indicators to show device status
- Powered by HDMI source
- Compact and lightweight design
Specification
| LEDs | |
| Power | Power status (Green x 1) |
| Status | Learning (Blue x 1) |
| Video Input | |

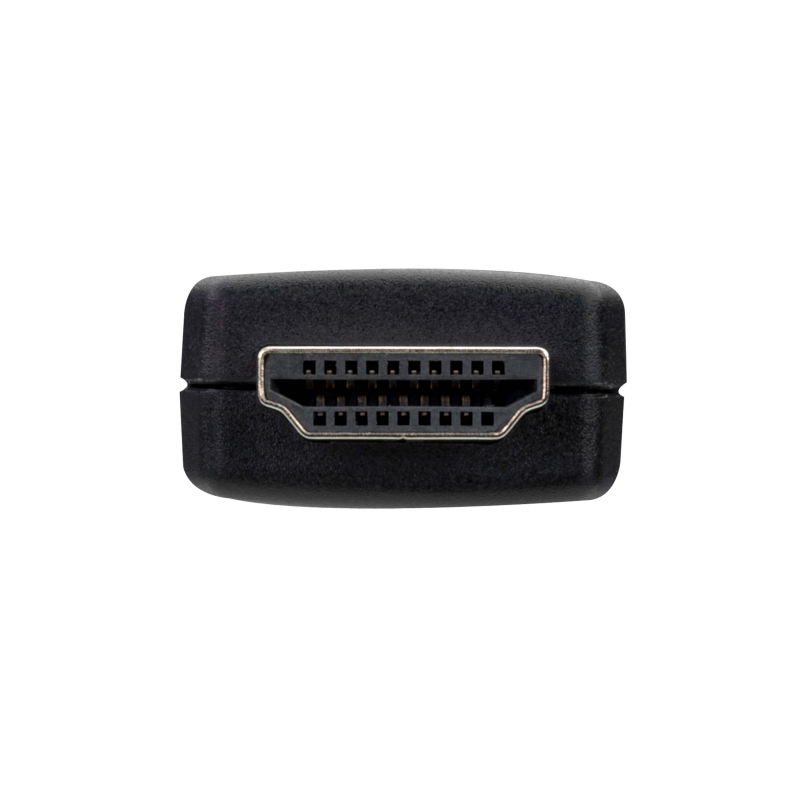

| Interfaces | 1 x HDMI Type A Male (Black) |
| Impedance | 100 Ώ |
| Video Output | |

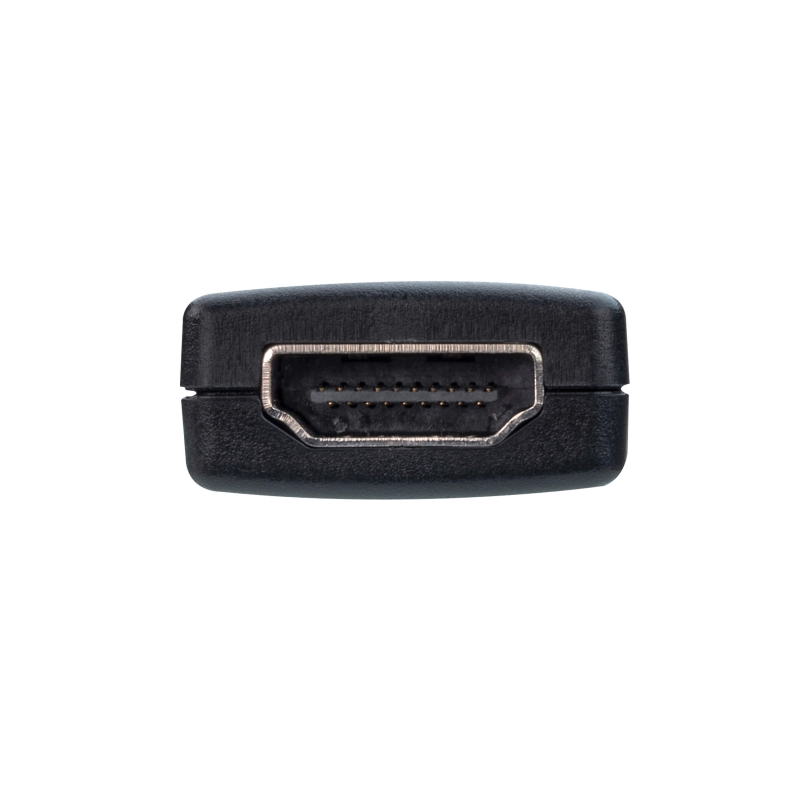

| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ώ |
| Video | |
| Compliance | HDMI 2.0 (3D, Deep Color) HDCP 2.2 Compatible Consumer Electronic Control (CEC) |
| EDID Settings | EDID Mode: Default / Learning |
| Connectors | |
| Power | Bus-powered (5 VDC from source device) |
| Power Consumption | 240MWBTU |
| Environmental | |
| Operating Temperature | 0 - 50 ºC |
| Storage Temperature | -20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic (ABS) |
| Weight | 0.01 kg ( 0.02 lb ) |
| Dimensions (L x W x H) | 4.40 x 2.40 x 1.18 cm (1.73 x 0.94 x 0.46 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
